Name: High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging
Brand: Guanhong
SKU: Guanhong
Price: 72 USD
Availability: InStock
Rating: 4.8 (173 reviews)

Home > products > New Arrival >

High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

High Speed Electric Small Volume Vial Tube Filling Sealing Machine for Metal Packaging

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

13000BPH

Applicable Industries:

Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops, Other

Showroom Location:

None

Application:

Food, Beverage, Commodity, Chemical, Cosmetic

Packaging Type:

Bottles, Case, Kit

Packaging Material:

Plastic, Paper, Metal, Glass, Wood, Other

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

AC220V/380V 50/60Hz

Dimension(L*W*H):

3200*2000*1518mm

Weight:

1800 KG

Warranty:

1 Year

Key Selling Points:

Automatic

Filling Material:

Water, Oil, Liquid, Liquid

Filling Accuracy:

±0.5%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

Quantity Of Filling Head:

24 Heads

Filling Capacity:

0.3-0.8ml

Filling Form:

Peristaltic Pump Filling

Filling Speed:

About 180 Bottles/min

Pressure:

0.6-0.8 MPa

Program Control:

PLC+touch Screen

Power Supply:

AC220V/380V, 50/60Hz.

Sealing And Cutting Method:

Heat Sealing (first Cutting, And Then Heat Sealing)

Materia:

The Frame Adopts 304# Stainless Steel + Aluminum Alloy

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$72,000.00/sets 1-2 sets

Packaging Details

wooden packing

Supply Ability

20 Unit/Units per Month

Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph

Get Best Price

Top-Performing 3-Head Automatic Capping Machine for Plastic Bottles 4000BPH Capacity

Get Best Price

High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

Get Best Price

Full Automatic Gel Syringe Filling Capping Machine for Precise Filling Accuracy ± 1 ml

Get Best Price

Contact Now

Product Description

Product Overview

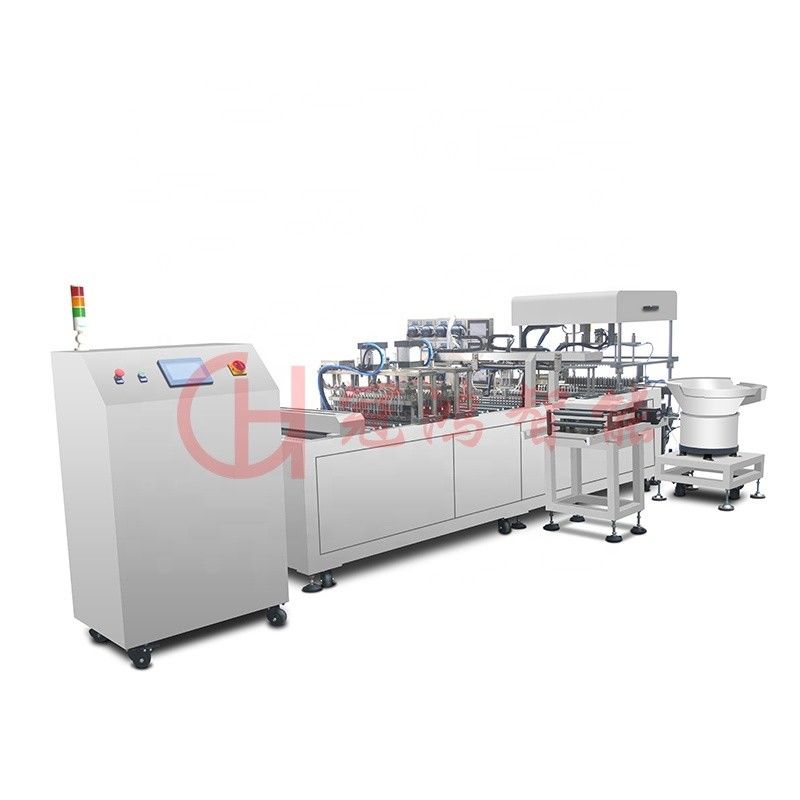

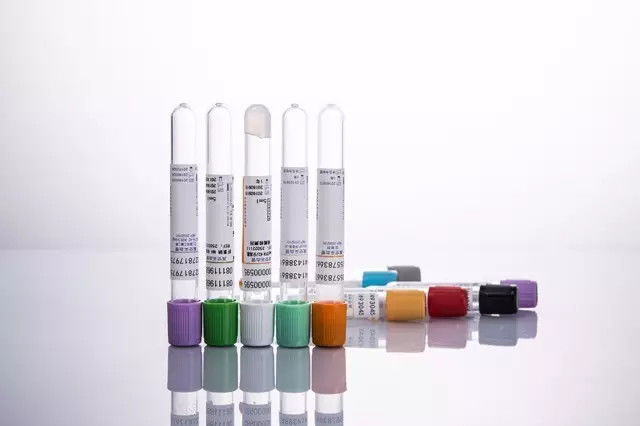

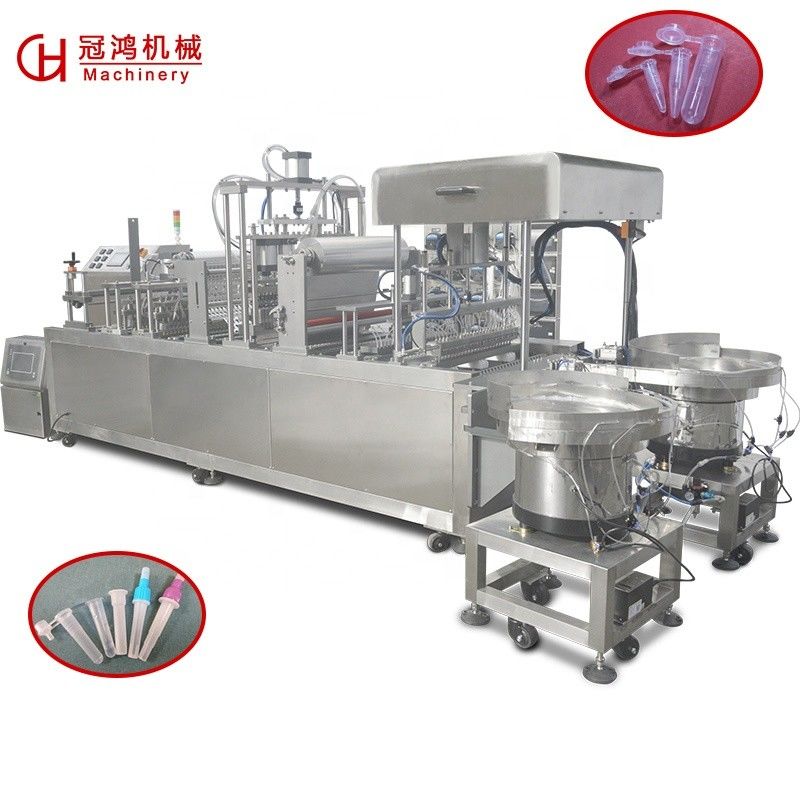

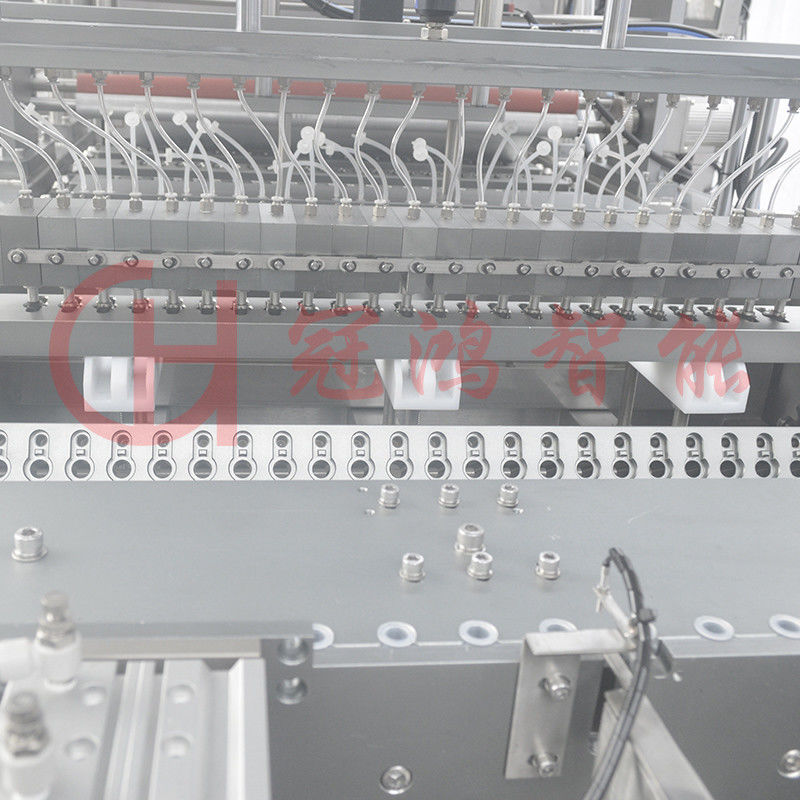

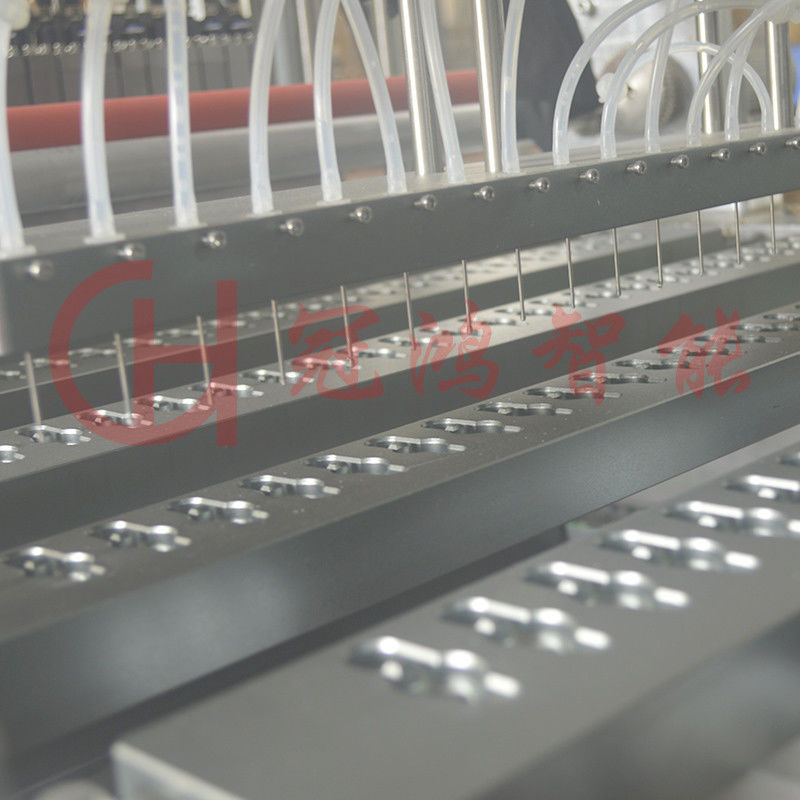

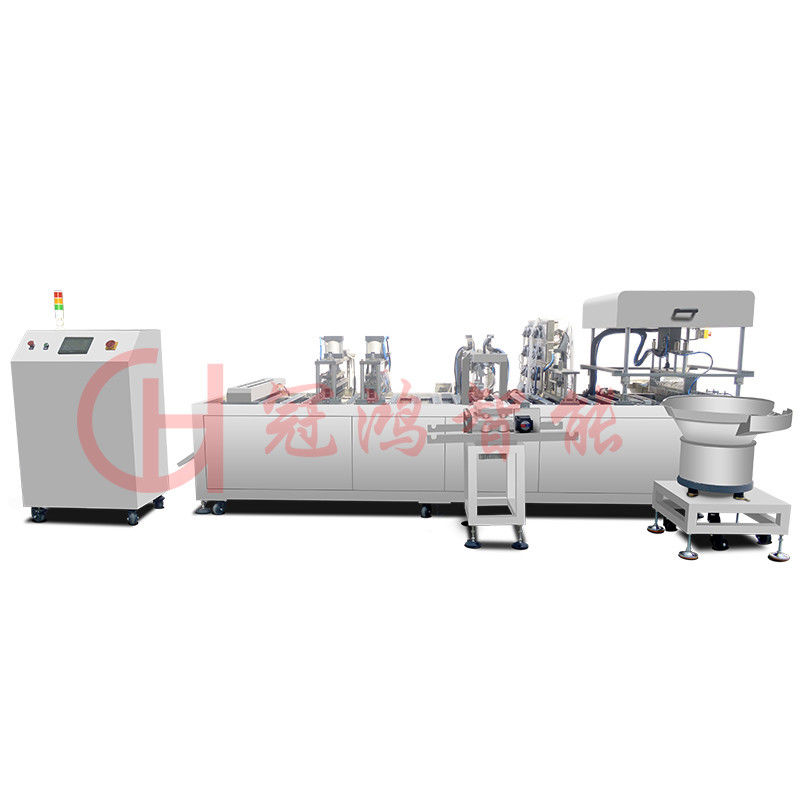

This machine is a special equipment in the filling production line of sampling tubes and detection reagent tubes. It adopts 24heads fast filling method, continuous aluminum foil cut-sealing, stable filling and high production capacity. Working principle the tubes are sent automatically by rotated tube sender, and the peristaltic pump is accurately filled. After the filling is completed, the next filling is performed in sequence.

Product Paramenters

NO.	item	value
1	Filling speed	180 bottles/minute
2	Bottle feeding method	vibration plate bottle feeding
3	Number of vibration bottle sorte	4 (2 for each bottle)
4	Bottle putting method	mechanicalarm putting bottle
5	Number of die holes	24 holes
6	Filling method	peristaltic pump filling
7	Filling capacity	about 0.3ml
8	Filling accuracy	±5%
9	Number of sealingand cuttingheads	24
10	Sealing and cutting method	heat sealing (first cutting, and then heat sealing)
11	Pull film method	electric automatic pull film
12	Coding form	mobile coding (move once, coding 24 bottles)
13	Discharging method	cylinder feeding
14	Production speed	180 bottles/min
15	Material	the frame adopts 304# stainless steel + aluminum alloy
16	The whole machine power	about 6KW
17	Program control	PLC+ touch screen
18	Air pressure	0.6-0.8mpa
19	Power supply	AC220V/380V, 50/60Hz.
20	Machine size	320020001518mm
