Name: Full Automatic Gel Syringe Filling Capping Machine for Precise Filling Accuracy ± 1 ml
Brand: Guanhong
SKU: Guanhong
Price: 20 USD
Availability: InStock
Rating: 4.9 (146 reviews)

Home > products > New Arrival >

Full Automatic Gel Syringe Filling Capping Machine for Precise Filling Accuracy ± 1 ml

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

Full Automatic Gel Syringe Filling Capping Machine for Precise Filling Accuracy ± 1 ml

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

Other, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 1600BPH

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location:

None

Application:

Beverage, Chemical, Commodity, Food, Machinery & Hardware, Other, Textiles, MEDICAL

Packaging Type:

Barrel, Bottles, CANS, Case, Pouch, Stand-up Pouch, Other, Tube, Syringe

Packaging Material:

Glass, Metal, Plastic, Wood, Paper, Other

Automatic Grade:

Automatic

Driven Type:

Mechanical

Voltage:

220V

Dimension(L*W*H):

2100*W1800*1700mm

Weight:

800 KG

Warranty:

1 Year

Key Selling Points:

High Productivity

Filling Material:

Other, Milk, Water, Oil, Juice, Gel, Gelatin, Fluid

Filling Accuracy:

± 1 Ml

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, Other, PLC

Filling Heads Numbers:

2 Pcs

Filling Capacity:

1-10 Ml

Theoretical Filling Speed:

30-40 Bottles / Min (1 Liter)

Production Speed:

900-1500 Bottles / Hour

Filling Accuracy:

± 1 Ml (1 Liter)

Program Control:

PLC With Touch Screen Man-machine Interface

Air Pressure:

0.6-0.8MPa

Program Control:

Import PLC With Touch Screen Man-machine Interface

Material:

Stainless Steel 304

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$20,800.00/sets 1-1 sets

Packaging Details

wooden packing

Supply Ability

25 Unit/Units per Month

Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph

Get Best Price

Top-Performing 3-Head Automatic Capping Machine for Plastic Bottles 4000BPH Capacity

Get Best Price

High Speed 4 Heads Liquid Bottle Filling Capping Labeling Machine for Plastic Bottles

Get Best Price

Full Automatic Gel Syringe Filling Capping Machine for Precise Filling Accuracy ± 1 ml

Get Best Price

Contact Now

Product Description

Product Overview

Full automatic injection gel syringe filling capping machine gel tube filling machine

This equipment is gel filling machine independently researched and developed by our company. It has independent intellectual property rights and the device patent number is: ZL 2017 2 0175862.7 It is integrated with electrical and pneumatic all together. It is easy to operate and is fully accord with GMP in China. It is the most ideal gel filling equipment. The equipment adopts servo piston type quantitative filling, which has high filling precision and can minimize the bubbles of the gel itself and achieve aesthetic effect. The equipment can also fill thinner materials at the same time and can also fill thicky materials, effectively solving the trouble of fill thicky materials, which OEM/ODM can't achieve.

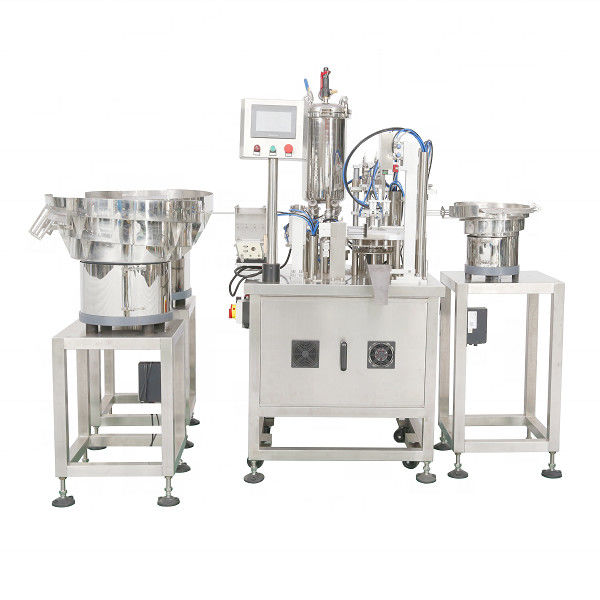

Front elevation

Product Paramenters

No	Item	Data
1	Filling head	2 heads
2	Cap feeding head	2 heads
3	Capping head	2 heads
4	Suitable for bottle type	four sets of gel round tube or flat tube
5	Filling form	servo-driven piston filling
6	Cap feeding method	pneumatic feeding
7	Production speed	1600 bottles/hour
8	Filling accuracy	±1%
9	Machine power:	about 2KW
10	Air pressure:	0.6-0.8MPa

Application

Recommend Products

Company Profile

Product packaging

FAQ

1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment ,50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL.FEDEX,TNT,UPS account, samples would be sent under freight collected through your account.
If you don't have DHL,FEDEX,TNT,UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
