Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph

Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Certification:

GMP, CE

Contact Us
Request A Quote
Product Details
Condition:
New
Type:
Filling Machine
Machinery Capacity:
Other, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 1800BPH
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C
Showroom Location:
None
Application:
Beverage, Chemical, Commodity, Machinery & Hardware, APPAREL, Food
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Case
Packaging Material:
Plastic, Paper, Metal, Glass, Wood, Other
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220/380V 50-60HZ/110V
Weight:
700 KG
Warranty:
1 Year
Key Selling Points:
Competitive Price
Filling Material:
Other, Milk, Water, Oil, Juice
Filling Accuracy:
99.9%
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC
Capacity:
100-1000ml
Filling Speed:
20-30 Bottles/min
Filling Head:
6 Heads
Power:
1.5KW/220V AC 50HZ/60HZ
Filling Type:
Piston Type Filling
Air Pressure:
0.5-0.8MPa
Delivery Speed:
5-15 M/min
Conveyor Belt Width:
82 (mm)
Conveyor Belt:
3 M Steel Chain
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$8,800.00/sets 1-2 sets
Packaging Details
wooden packing
Supply Ability
20 Unit/Units per Month
Product Description
Product Overview

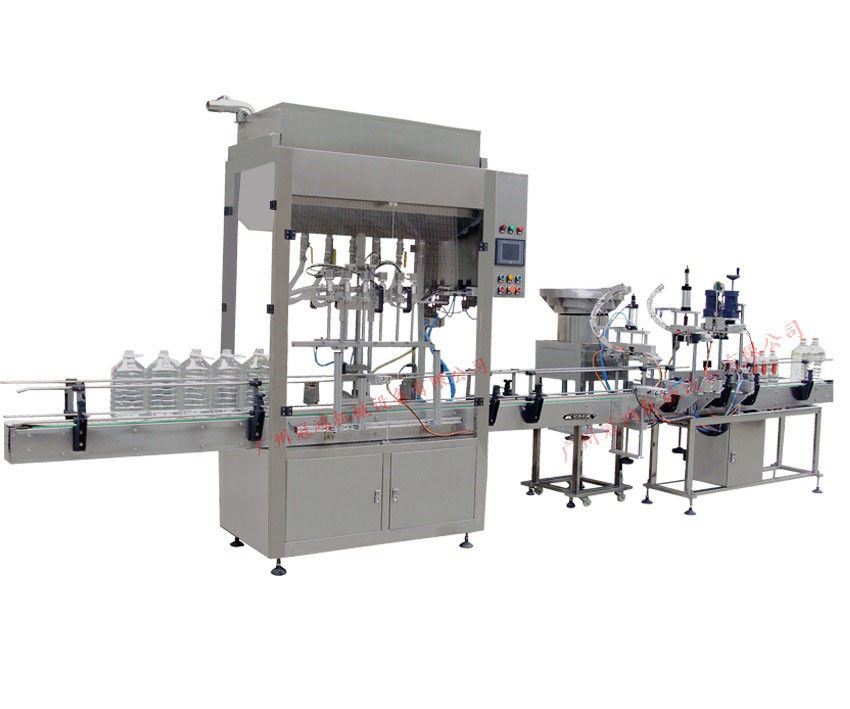

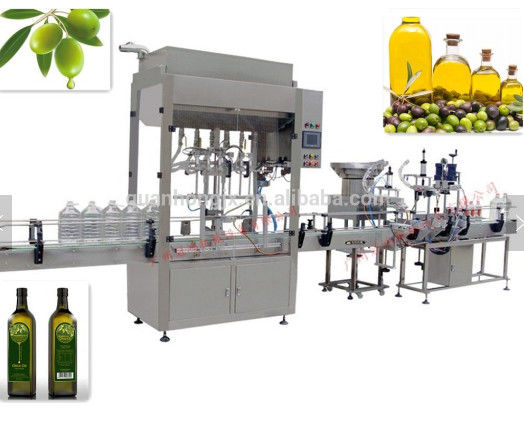

Sunflower oil soybean oil corn oil automatic filling capping machine


It is integrated with electrical and pneumatic all together, with PLC touch screen control system, which has a high degree of automation, simple and convenient operation, and high filling accuracy. And with each filling head can be individually controlled to adjust the filling accuracy characteristics, prolong equipment using life and flexibility. This equipment is widely used in food, daily chemical,chemical industries. Such as: chili sauce, cooking oil, shampoo, lubricants, cough syrup and other products.
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 0
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 1
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 2
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 3
Product Paramenters
No.
Item
Data
1
Filling form
self-flow  filling(can be changed to piston type or other type)
2
Filling heads
6 heads (can be customized)
3
Filling speed
about 30-35 bottles/min (calculated in 500 ml bottle, the
actual size and material of the bottle)
4
Filling error
±1%
5
Material
304# stainless steel for filling frame
6
Program control
PLC + touch screen
7
Filling mouth and trough contact liquid parts material
304# stainless steel, food grade PVC
8
Air pressure
0.6-0.8MPa
9
Conveyor belt
82mm wide POM chain belt, speed 0-15 m/min, height 850mm ± 25mm off the ground
10
Conveying motor
370W variable frequency speed regulating motor
11
Power
about 1.5KW/AC220V 50/60HZ
12
Tank capacity
approx. 200 liters (with level switch)
Application
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 4
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 5
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 6
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 7
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 8
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 9
Recommend Products
Packaging & Delivery
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 10
Company Profile
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 11
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 12
Electric Automatic Filling and Capping Machine for Sunflower Soybean Corn Oil 2000bph 13
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
