Name: Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs
Brand: Guanhong
SKU: Guanhong
Price: 4 USD
Availability: InStock
Rating: 4.6 (116 reviews)

Home > products > Capping Sealing Machine >

Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

Food Shop Bottle Clamp Screw Capping Sealing Machine for Duckbill Cap Sealing Needs

Product Details

Type:

Capping Machine

Applicable Industries:

Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops, Other

Showroom Location:

None

Video Outgoing-inspection:

Provided

Machinery Test Report:

Provided

Warranty Of Core Components:

1 Year

Core Components:

PLC, Motor

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Chemical

Driven Type:

Pneumatic

Automatic Grade:

Automatic

Voltage:

220V 50-60HZ, 220V 50Hz

Packaging Type:

Wooden Case

Packaging Material:

Wood

Weight:

525 KG

Warranty:

1 Year

Key Selling Points:

High-accuracy

Capping Type:

Servo Tracking Type

Suitable Specifications:

According To The Bottle Sample Provided By The Customer

Capping Range:

10~55mm

Capping Speed:

10~35 Bottles/minute

Program Control:

PLC+touch Screen

Material Of Contact Parts:

304# Stainless Steel

Machine Power:

1.5-2.5kw

Air Pressure:

06~0.8MPa

Bottle Cap Type:

Plastic/ Metal Round Cap, Pump Head Cap, Duckbill Cap, Etc.

Marketing Type:

Ordinary Product

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$4,950.00/sets >=1 sets

Packaging Details

wooden packing

Supply Ability

20 Unit/Units per Month

Pneumatic Tire Sealant Bottle Capping Machine with 8 Pairs Wheel Rotation and Sorter

Get Best Price

Packaging Type Wooden Case 900 KG Plastic Round Bottle Capping Machine with Lid Sorter

Get Best Price

High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type

Get Best Price

Single Head PET Bottle Screw Capping Machine for Customer Provided Bottle Samples

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

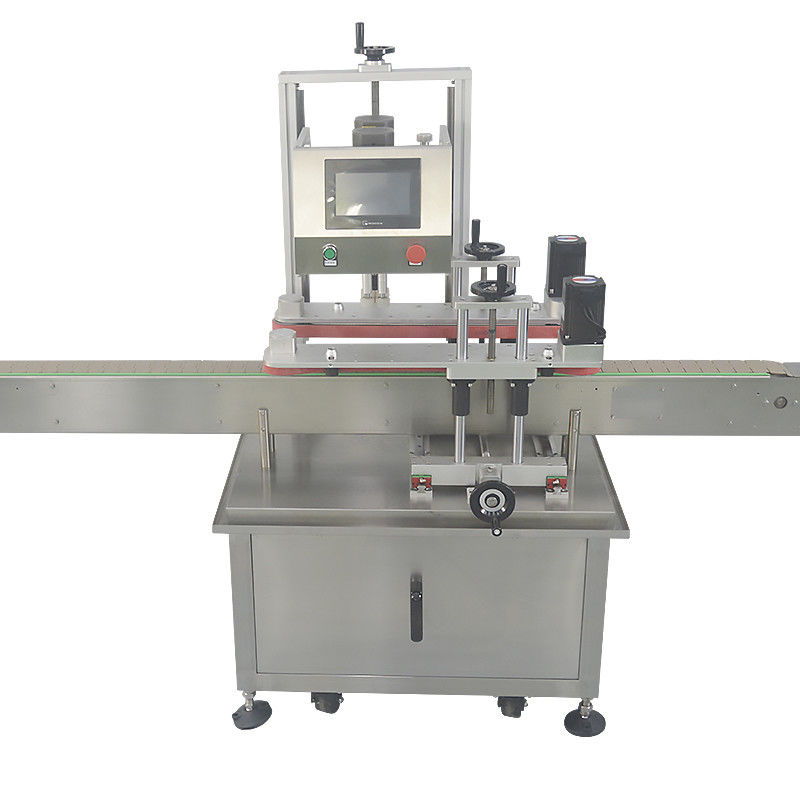

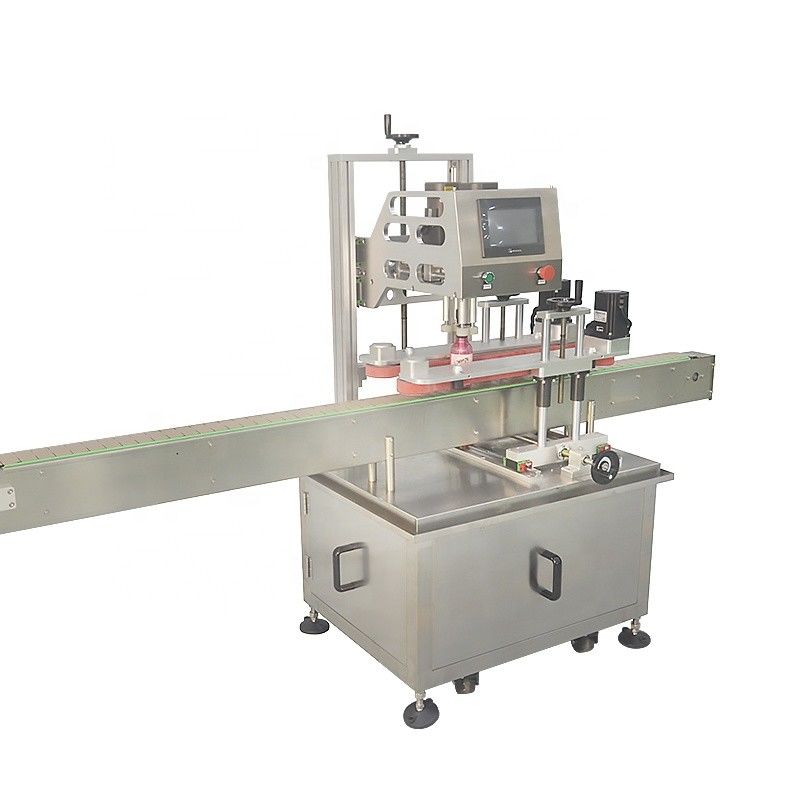

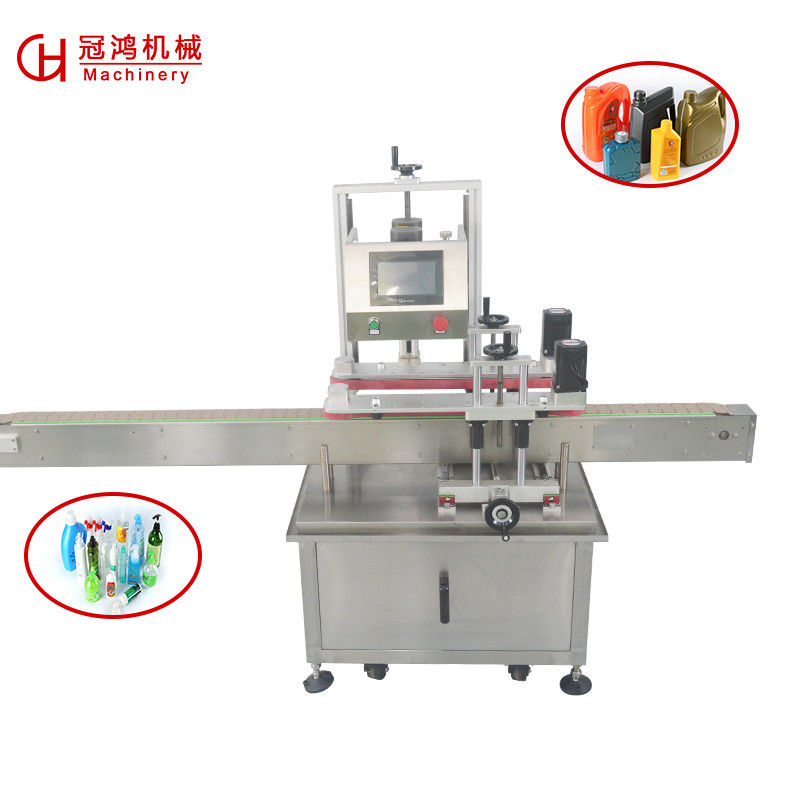

Good Price Bottle Clamp Screw Capping Sealing Machine

Equipment overview:

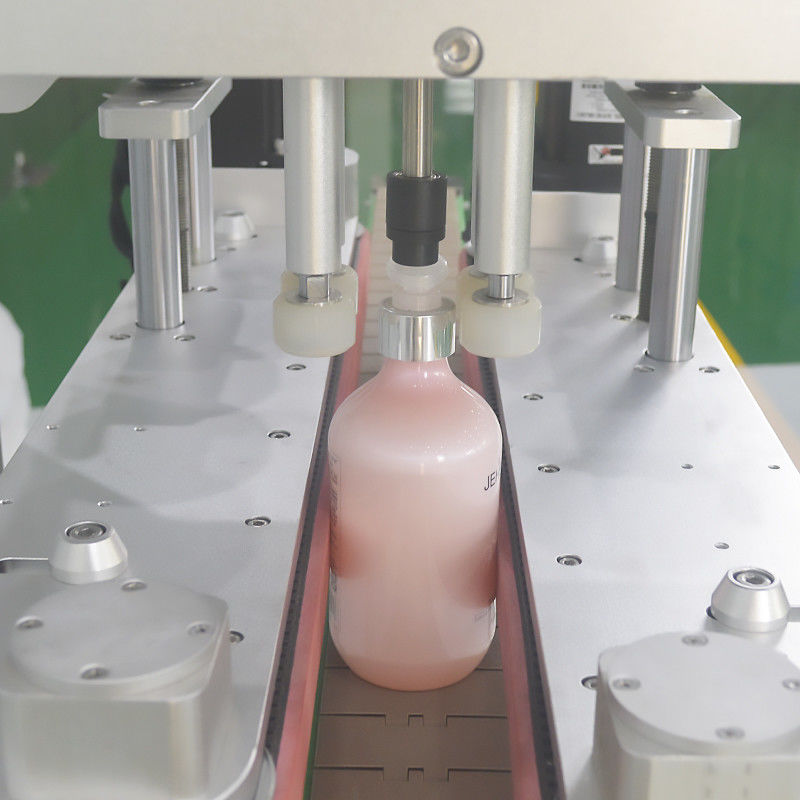

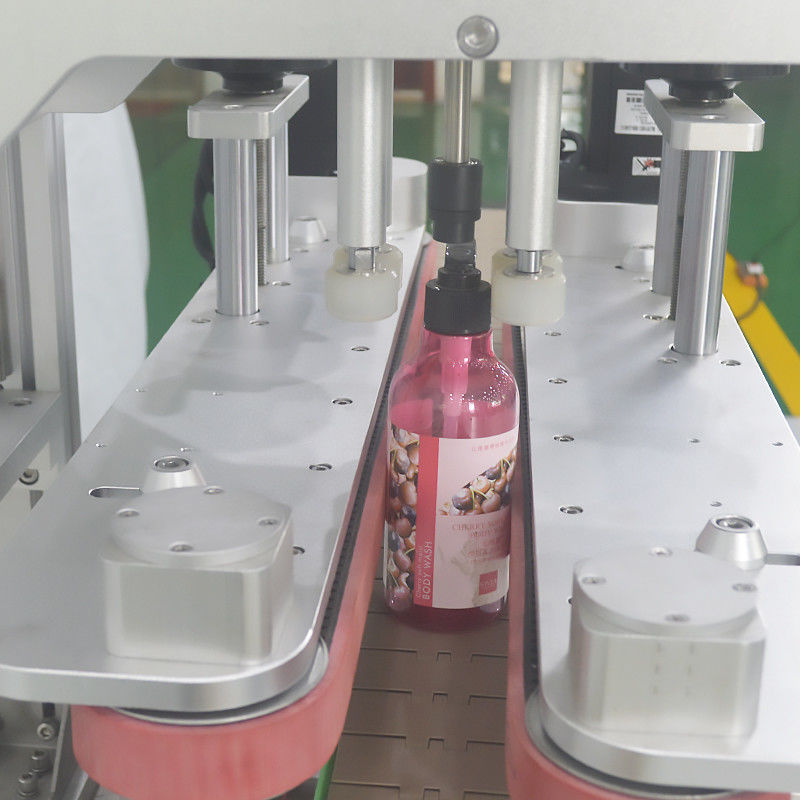

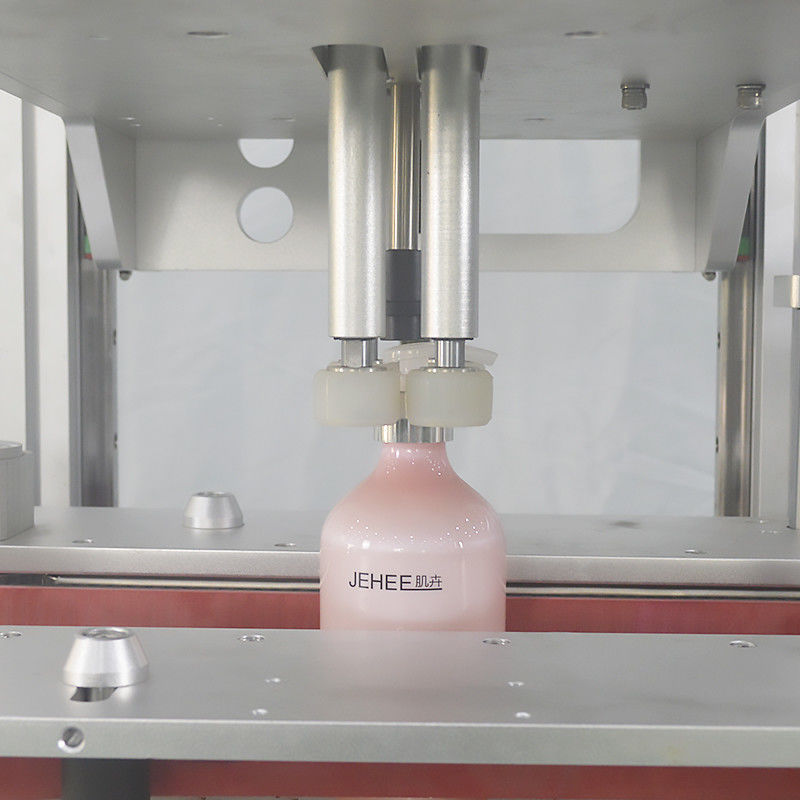

This device uses servo torque screw cap, the torque of the cap can be adjusted. The machine integrates automatic cap sorting, cap input, capping. No bottle to capping, cap rejection automatic alarm function, high degree of automation. Automatic screw capping
for plastic/ metal round cap, pump caps, and duckbill caps. Applicable to medicine, food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in
leakproof, anti-theft.

Technical Parameters:

1.Capping method: servo torque screw cap, screw cap size can be adjusted
2.Capping range: Φ10~φ55mm (can be customized according to requirements)
3.Bottle height: 50~300mm (can be customized according to requirements)
4.Capping speed: 10~35 bottles/minute
5.Voltage: 220V 50Hz
6.Power: 1.5KW
7.Air pressure: 06~0.8MPa
8.Bottle cap type: plastic/ metal round cap, pump head cap, duckbill cap, etc.

Product Paramenters

NO.	Item	Data
1	Capping range	Φ10~φ55mm (can be customized according to requirements)
2	Capping height	Φ10~φ55mm (can be customized according to requirements)
3	Screw capping form	servo torque screw cap, screw cap size can be adjusted
4	Capping head	1 head
5	Speed	10~35 bottles/minute (Increasing capping heads can increase the speed)
6	Machine power	1.5KW
7	Voltage	AC220 50HZ
8	Pressure	0.6-0.8Mpa
9	Program control	PLC+ touch screen

Company Profile

Packaging & Delivery

Customer Photos

FAQ

Q: Is your company a factory?
A: Yes, we are factory that located in Guangzhou city, China.
2: Q: Do you have certificates ?
A: Yes. CE, ISO 9001, GMP quality, etc, if you have other requirements we can also make it.
3: Q: What are the payment methods?
A: T/T, L/C at sight, Western Union, etc
For regular order, 50% as advance payment, 50% as balance before delivery.
4: Q: What's the lead time ?
A: Usually around 15 to 30 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM. We can customize the production line based on your special requirements
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have express account, you could pay freight charge directly to our company account before shipping.
7: Q: Deliver goods by air or by sea ?
A: Both are okay, which depends on you, usually shipping by sea particularly for big order.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, please feel free
to contact us.
