High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type

High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Contact Us
Request A Quote
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type
Product Details
Type:
Capping Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Restaurant, Retail, Construction Works , Food & Beverage Shops
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware
Driven Type:
Electric
Automatic Grade:
Automatic
Voltage:
220V /380V
Packaging Type:
Wooden Case
Packaging Material:
Plastic, Glass, Wood
Dimension(L*W*H):
2300*1300*2300mm
Weight:
650 KG
Warranty:
1 Year
Key Selling Points:
Flexible Manufacturing
Suitable For Bottle Specifications:
According To The Sample Provided By The Customer
Cap Input Method:
Automatic Hook Cap Input
Capping Method:
Chuck Type Vacuum Capping
Capping Speed:
50~300mm(can Be Custo4 Heads Inline Vacuum Cappi40 Bottles/minute
Air Pressure:
06~0.8MPa
Material:
The Frame Is Made Of 304# Stainless Steel
Power:
About 2.8KW
Program Control:
PLC+ Touch Screen
Conveyor Belt:
82mm Wide Stainless Steel Chain Strip
Cap Sorting Method:
Elevator Cap Sorting
Marketing Type:
Hot Product 2019
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$12,500.00/sets >=1 sets
Packaging Details
wooden packing
Supply Ability
20 Unit/Units per Month
RELATED PRODUCTS
Good price Pneumatic Tire Sealant Bottle Capping Machine with 8 Pairs Wheel Rotation and Sorter online

Pneumatic Tire Sealant Bottle Capping Machine with 8 Pairs Wheel Rotation and Sorter

Get Best Price
Good price Packaging Type Wooden Case 900 KG Plastic Round Bottle Capping Machine with Lid Sorter online

Packaging Type Wooden Case 900 KG Plastic Round Bottle Capping Machine with Lid Sorter

Get Best Price
Good price High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type online

High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type

Get Best Price
Good price Single Head PET Bottle Screw Capping Machine for Customer Provided Bottle Samples online

Single Head PET Bottle Screw Capping Machine for Customer Provided Bottle Samples

Get Best Price
Contact Us
Contact Now
Product Description
Recommend Products
Product Overview

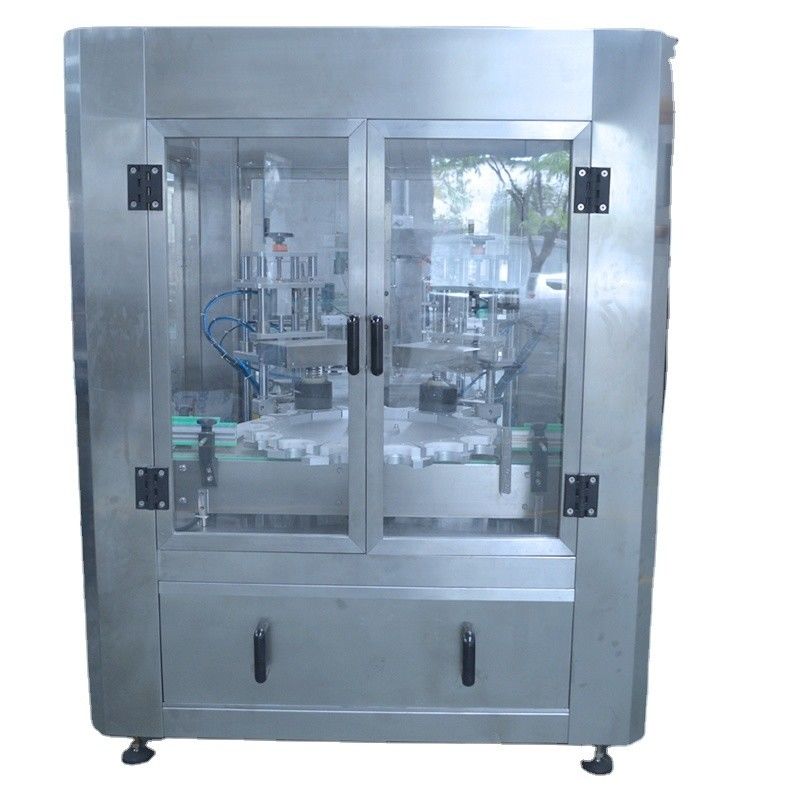

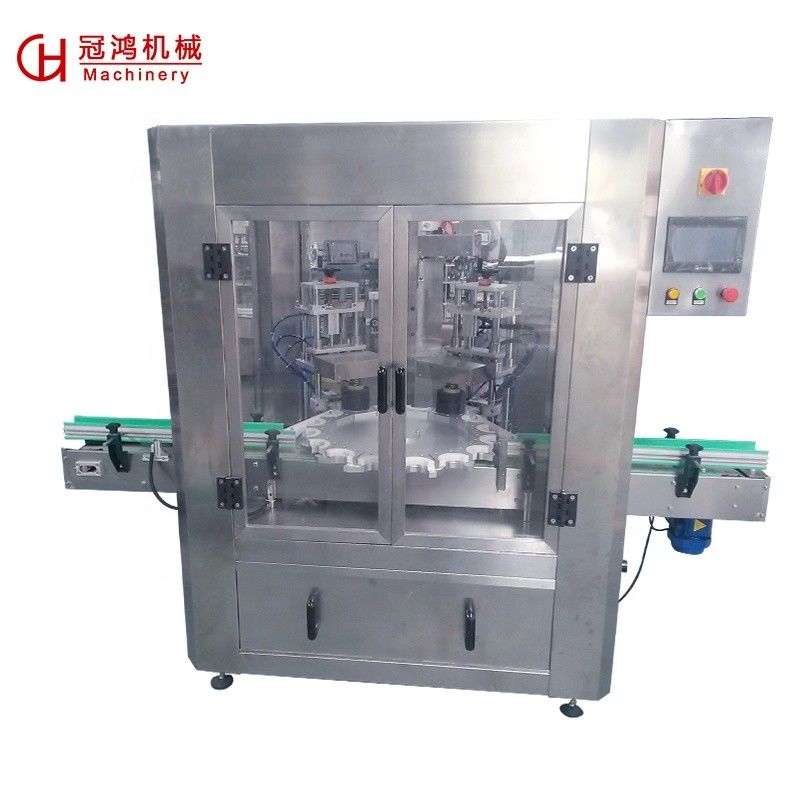

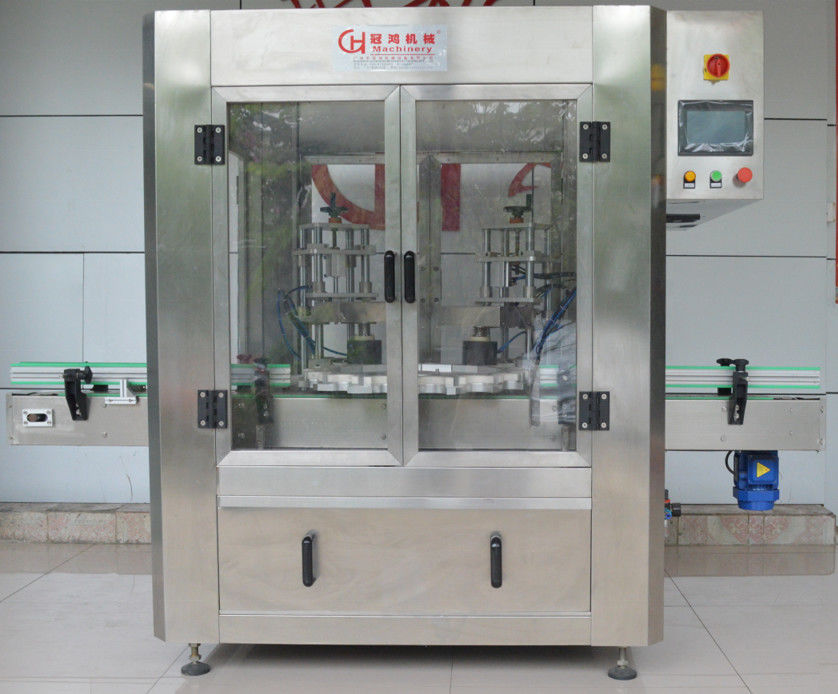

Automatic vacuum capping machine

The machine integrates automatic cap sorting ,cap input, automatic vacuum capping together. In addition, the vacuum pump used the sealed vacuum chamber to obtain a high degree of vacuum. No bottle no capping, cap rejection automatic alarm function, high degree of automation, widely used in food, beverages, spices, health products and other in the vacuum capping industries.

High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 0

Technical parameters

1.Capping speed: 10~35 bottles/minute
2.Cap diameter: φ30~φ55mm φ50~φ85mm
3.Bottle height: 80~250mm
4.Bottle diameter: φ30~φ85mm φ80~φ150mm
5.Power: 2.8KW (including vacuum pump)
6.Voltage: 380V/220V 50Hz
7.Air pressure: 0.6~0.8Pma

High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 1
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 2
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 3
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 4
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 5
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 6
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 7
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 8
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 9
Specification
item
value
Condition
New
Place of Origin
China
Dimension(L*W*H)
2300*1300*2300mm
Weight
650KG
Warranty
1 Year
Online support, Video technical support
Suitable for bottle specifications
according to the sample provided by the customer
Cap input method
manual put cap
Capping method
Chuck type vacuum capping
Capping speed
50~300mm(can be custo4 heads inline vacuum cappi40 bottles/minute
Air pressure
06~0.8MPa
Power
about 2.8KW
Program control
PLC+ touch screen
Company Profile
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 10
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 11
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 12
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 13
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 14
Packaging & Delivery
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 15
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 16
Customer Photos
High Speed Automatic Vacuum Capping Machine for Glass Bottle Jar Electric Chuck Type 17
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment ,50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL.FEDEX,TNT,UPS account, samples would be sent under freight collected through your account.
If you don't have DHL,FEDEX,TNT,UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
