Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size

Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Contact Us
Request A Quote
Product Details
Type:
Capping Machine
Applicable Industries:
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Food Shop, Construction Works , Food & Beverage Shops
Showroom Location:
None
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Core Components:
PLC, Motor
Condition:
New
Application:
Food, Beverage, Commodity, Machinery & Hardware
Driven Type:
Pneumatic
Automatic Grade:
Automatic
Voltage:
220v/380v, AC220V/380V 50HZ/60HZ
Packaging Type:
Bottles
Packaging Material:
Plastic, Metal, Glass
Weight:
320 KG
Warranty:
1 Year
Key Selling Points:
Multifunctional
Product Name:
Grab Type Screw Capping Machine
Production Capacity:
10~35 Bottles/minute
Power:
1.1KW
Air Pressure:
0.6-0.8Mpa
Bottle Cap Type:
Plastic,metal Round Cap, Pump Head Cap,etc
Capping Range:
10~55mm
Adapt To Bottle Height:
50~300mm
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$7,200.00/pieces 1-4 pieces
Packaging Details
wooden packing
Supply Ability
50 Piece/Pieces per Month
Product Description
Product Overview
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 0

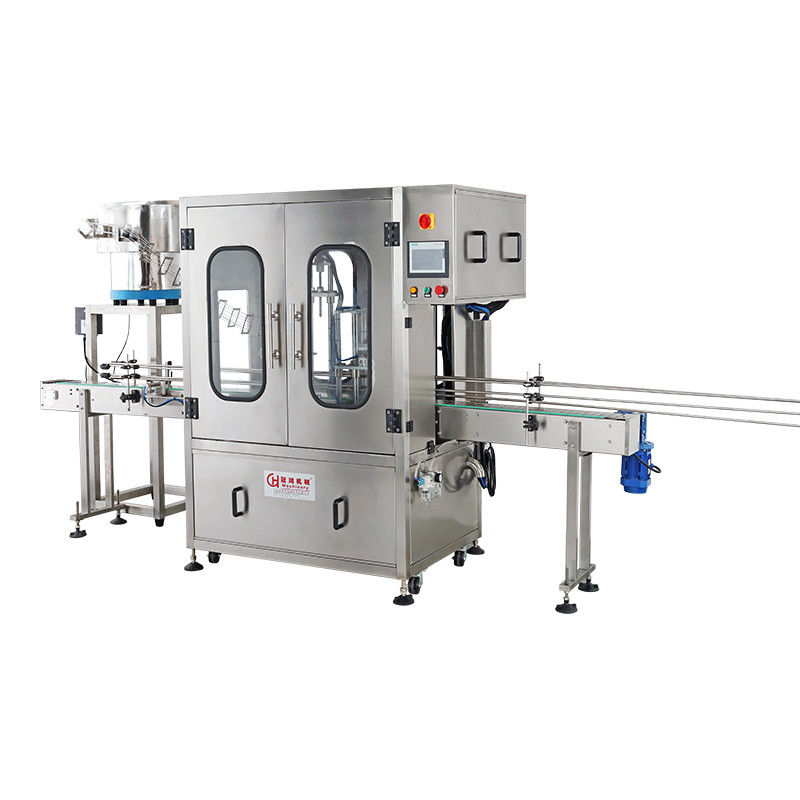

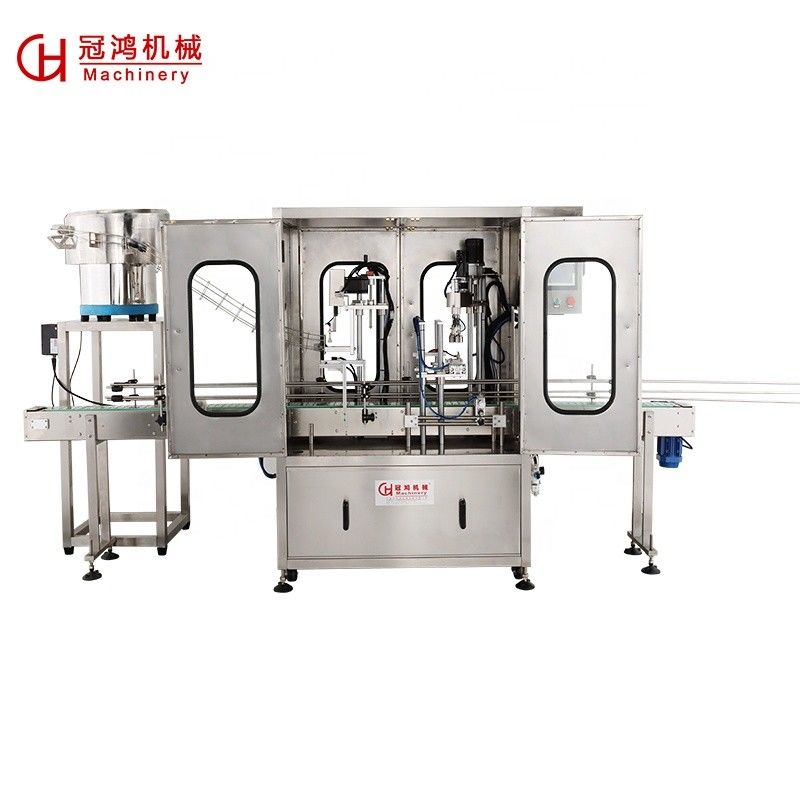

Fully automatic multi-type capping and screwing machine with adjustable torque size

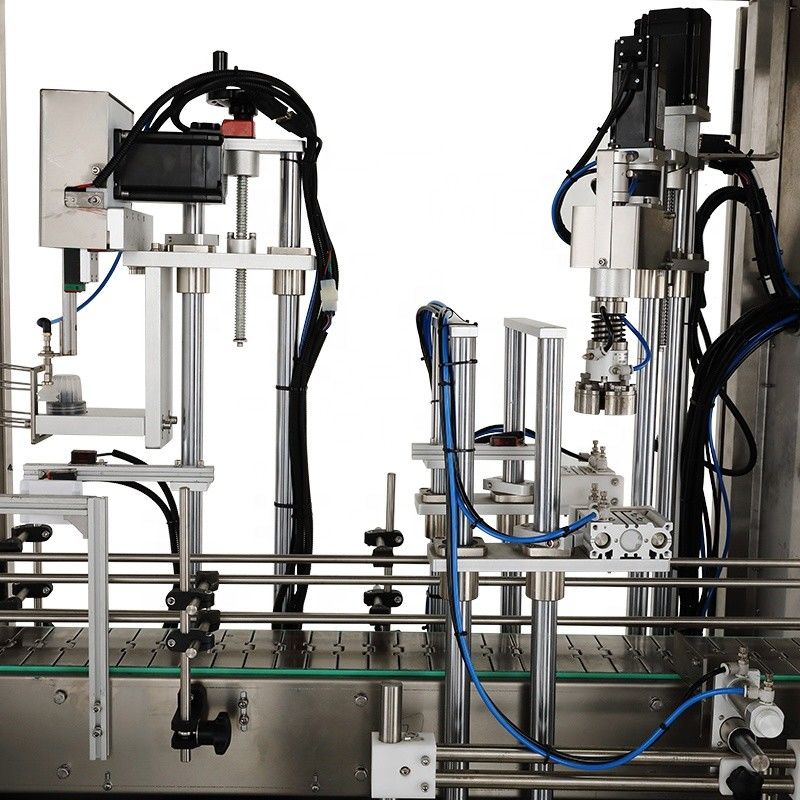

This equipment adopts servo torque cap, and the size of capping torque can be adjusted. The equipment integrates automatic capping, upper capping and automatic capping, with no bottle and no cap, missing cap automatic alarm function, high degree of automation. Automatic capping of plastic and metal round caps, pump head caps, and duckbill caps. It is suitable for medicine, food, cosmetics, oil, biology, pesticides, daily chemicals, chemical and other industries, playing the role of leakage prevention and theft.
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 1

Technical Parameters:

1. Capping method: servo torque screw cap, screw cap size can be adjusted
2. Capping range: Φ10~φ55mm (can be customized according to requirements)
3. Bottle height: 50~300mm (can be customized according to requirements)
4. Capping speed: 10~35 bottles/minute (Increasing capping heads can increase the speed)
5. Voltage: 220V 50Hz
6. Power: 1.5KW
7. Air pressure: 06~0.8MPa
8. Bottle cap type: plastic/ metal round cap, pump head cap, duckbill cap, etc.

Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 2

Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 3

Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 4

Product Paramenters
No.
Item
Fully automatic Grab type screw capping machine
1
Capping range
10mm-55mm (can be customized)
2
Bottle height
50mm-300mm (can be customized)
3
Speed
approx. 600-2100 bottles/hour
4
Machine power
about 1.5KW
5
Program control
PLC + touch screen
6
Air pressure
0.6-0.8Mpa
7
Voltage
AC220V50/60HZ
Our Advantages
Guangdong Guanhong Intelligent Equipment Co., Ltd. is a factory that specialized in manufacturing automatic packaging machinery which focus on the research, design, manufacturing and sales. Since its establishment, our company has continuously introduced advanced technology and high-tech technical talents to provide users with tailor-made packaging equipment with professional services and rich experience.
Our company is specialized in: bottle washing machine, drying machine, filling machine, capping sealing machine, labeling machine, filling production line, with excellent cost-effective, unanimously praised by new and old customers.
Ensuring quality, credibility, and enthusiasm service is the purpose of our consistent execution, to provide customers with more customized products and a full range of services. Our long-term pursue is dedicated to improving customer satisfaction and enabling our customers to obtain the best return on investment.
Company Profile
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 5
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 6
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 7
Packaging & Delivery
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 8
Customer Photos
Fully Automatic Multi-Type Capping and Screwing Machine with Adjustable Torque Size 9
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
