304 Stainless Steel Automatic Gel Liquid Tube Filling Capping Packing Machine OEM

Place of Origin:

Guangdong, China

Brand Name:

Request A Quote

304 Stainless Steel Automatic Gel Liquid Tube Filling Capping Packing Machine OEM

Product Details

Type:

Packaging Line

Applicable Industries:

Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Printing Shops

Showroom Location:

None

Condition:

New

Application:

Medical

Packaging Type:

Tube

Packaging Material:

Plastic

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

220v

Dimension(L*W*H):

2700*1300*1500MM

Weight:

600 KG

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Machinery Test Report:

Not Available

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

After-sales Service Provided:

Online Support

Filling Heads Numbers:

Filling Capacity:

1-10 Ml

Theoretical Filling Speed:

20-30 Bottles / Min (1 Liter)

Production Speed:

900-1700 Bottles / Hour

Filling Accuracy:

± 1 Ml (1 Liter)

Program Control:

PLC With Touch Screen Man-machine Interface

Air Pressure:

0.6-0.8MPa

Program Control:

Import PLC With Touch Screen Man-machine Interface

Material:

Stainless Steel 304

Marketing Type:

Hot Product 2019

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$10,000.00/sets >=1 sets

Packaging Details

wooden packing

Supply Ability

20 Unit/Units per Month

Multifunctional Syringe Gel Filling and Capping Machine Line with Motor Core Components

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

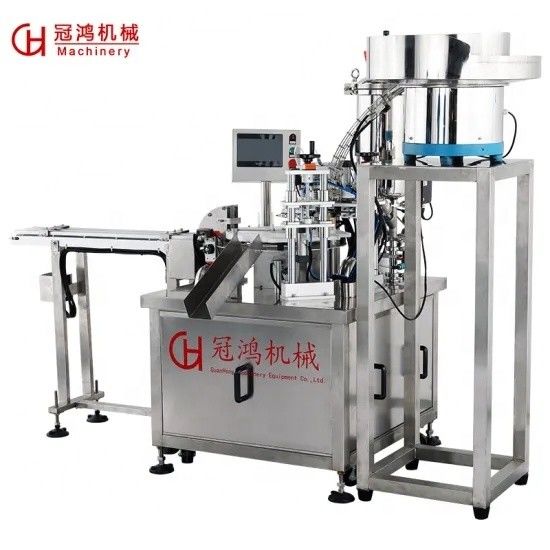

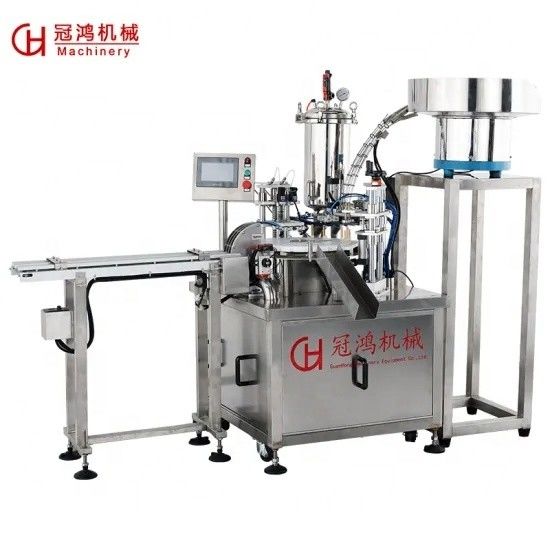

Gel filling capping machine

This equipment is gel filling machine independently researched and developed by our company. It has independent intellectual property rights and the device patent number is: ZL 2017 2 0175862.7 It is integrated with electrical and pneumatic all together. It is easy to operate and is fully accord with GMP in China. It is the most ideal gel filling equipment. The equipment adopts servo piston type quantitative filling, which has high filling precision and can minimize the bubbles of the gel itself and achieve aesthetic effect. The equipment can also fill thinner materials at the same time and can also fill thicky materials, effectively solving the trouble of fill thicky materials, which OEM/ODM can't achieve.

Technical Parameters

1.Filling head: 2 heads

2.Cap feeding head: 2 heads

3.Capping head: 2 heads

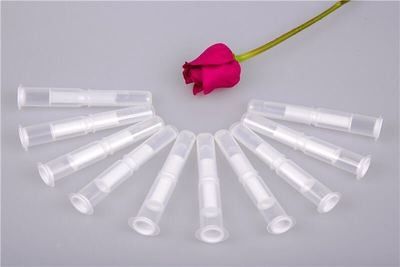

4.Suitable for bottle type: three/four sets of gel round tube or flat tube

5.Filling form: servo-driven piston filling

6.Cap feeding method: pneumatic feeding

7.Capping method: pneumatic capping

Specification

item	value
Automatic Grade	Automatic
Driven Type	Mechanical
Voltage	220V
Place of Origin	China
Dimension(LWH)	2700* 1300*1500mm
Weight	600KG
Warranty	1 Year
Filling Material	Gel
After-sales Service Provided	Video technical support, Online support
filling heads numbers	2
Filling capacity	1-10 ml
Production speed	1600 tubes / hour
Filling accuracy	± 1 ml
program control	PLC with touch screen man-machine interface
Air pressure	0.6-0.8MPa
Material	Stainless Steel 304
Arrange cap form	electromagnetic vibrating plate (vibration plate and guide rail need to be replaced in differentspecifications)
Machine power	about 2KW
Material tank volume	about 15L
