Multifunctional Syringe Gel Filling and Capping Machine Line with Motor Core Components

Place of Origin:

Guangdong, China

Brand Name:

Request A Quote

Multifunctional Syringe Gel Filling and Capping Machine Line with Motor Core Components

Product Details

Type:

Packaging Line

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C

Showroom Location:

None

Condition:

New

Application:

Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware

Packaging Type:

Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Film, Foil, Capsule, Case, Tube

Packaging Material:

Plastic, Paper, Metal, Glass

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

220v

Dimension(L*W*H):

2700*1300*1500MM

Weight:

600 KG

Warranty:

1 Year

Key Selling Points:

Easy To Operate

Machinery Test Report:

Not Available

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

After-sales Service Provided:

Online Support,Video Technical Support

Filling Heads Numbers:

Filling Capacity:

1-10 Ml

Theoretical Filling Speed:

20-30 Bottles / Min (1 Liter)

Production Speed:

900-1700 Bottles / Hour

Filling Accuracy:

± 1 Ml (1 Liter)

Program Control:

PLC With Touch Screen Man-machine Interface

Air Pressure:

0.6-0.8MPa

Product Name:

Gel Filling Capping Machine

Material:

Stainless Steel 304

Marketing Type:

Hot Product 2019

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$10,000.00/sets 1-2 sets

Packaging Details

wooden packing

Supply Ability

25 Unit/Units per Month

Multifunctional Syringe Gel Filling and Capping Machine Line with Motor Core Components

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

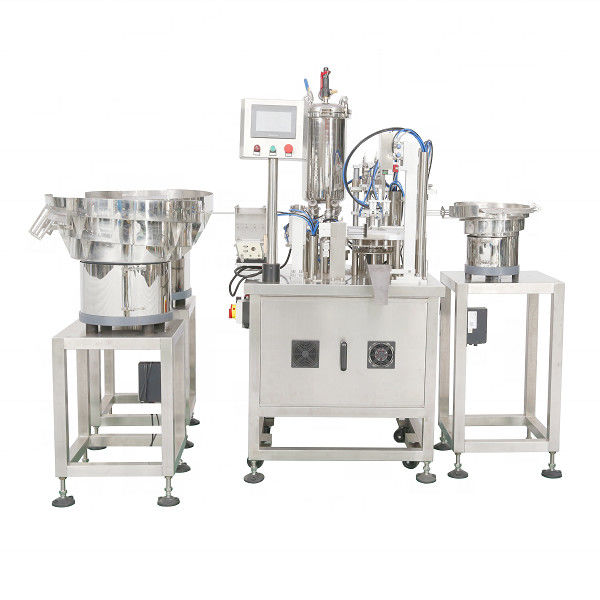

Gel filling capping machine

This equipment is gel filling machine independently researched and developed by our company. It has independent intellectual property rights and the device patent number is: ZL 2017 2 0175862.7 It is integrated with electrical and pneumatic all together. It is easy to operate and is fully accord with GMP in China. It is the most ideal gel filling equipment. The equipment adopts servo piston type quantitative filling, which has high filling precision and can minimize the bubbles of the gel itself and achieve aesthetic effect. The equipment can also fill thinner materials at the same time and can also fill thicky materials, effectively solving the trouble of fill thicky materials, which OEM/ODM can't achieve.

Technical parameters:

Technical parameters:
1.Tube sorter: double channel electromagnetic vibrating tube sorter , the tube goes through the direct vibration, the tube input
mechanism and then sending to the chuck mechanism;
2. Filling: 2-headspiston type, filling accuracy: ±1%, filling headand material tank and other liquid contact parts.

Material: 304# stainless steel, food grade PVC, program control: PLC+ touch screen;
3.Cap sorter method: electromagnetic vibrating cap sorter (different specifications need to change the vibration ), using double
channel to upper cap;
4. Suitable specifications: according to the bottle sample provided by the customer;
5. Capping form: cylinder press cap
6. Material output: Double - headsmanipulator to take out the bottles to bottle separatedmechanism.
7. Speed: about 1500 bottles/hour;
8. Material: stainless steel frame;
9. Whole machine power: about 3.5KW, air pressure: 0.6-0.8Mpa.

Specification

item	value
Condition	New
Packaging Type	tube
Packaging Material	Glass, Plastic
Automatic Grade	Automatic
Place of Origin	China
Warranty	1 Year
Filling Material	Gel
filling heads numbers	2
Production speed	1500 tubes / hour
program control	PLC with touch screen man-machine interface
Air pressure	0.6-0.8MPa
Material	Stainless Steel 304

Company Profile

Packaging & Delivery

Customer Photos

FAQ

1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
