Name: Automatic servo piston type filling machine for liquid/paste/detergent/shampoo
Brand: Guanhong
SKU: Guanhong
Price: 11 USD
Availability: InStock
Rating: 4.9 (168 reviews)

Home > products > Bottle Filling Machine >

Automatic servo piston type filling machine for liquid/paste/detergent/shampoo

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

Automatic servo piston type filling machine for liquid/paste/detergent/shampoo

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

Other, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH, 2400BPH

Applicable Industries:

Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert

Showroom Location:

None

Application:

Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL, Tobacco

Packaging Type:

Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Capsule, Case

Packaging Material:

Plastic, Paper, Metal, Glass, Wood, Other, Pet Bottle

Automatic Grade:

Automatic

Driven Type:

Pneumatic

Voltage:

220V/380V

Dimension(L*W*H):

2300*1700*2500

Weight:

750 KG

Warranty:

1 Year

Key Selling Points:

High-accuracy

Filling Material:

Beer, Other, Milk, Water, Oil, Juice, Powder, Sanitizer, Shampoo, Liquid

Filling Accuracy:

±1%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, Pump, Other, PLC, Engine

Production Capacity:

4, 6, 8, 10, 12, 14, 16 Heads

Filling Method:

Servo Piston Type

Filling Type:

Quantitative Filling

Filling Capacity:

100~500ml,500~1000ml,1000~5000ml

Filling Speed:

About 25-30 Bottles / Minute (calculated In 500 Ml Bottle)

Can Be Connected With:

Capping Machine, Labeling Machine, Bottle Unscrambler

Filling Error:

±1%

Air Pressure:

0.6-0.8MPa

Power:

About 4KW/AC220V 50/60HZ

Program Control:

PLC + Touch Screen

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$11,500.00/pieces 1-1 pieces

Packaging Details

wooden packing

Supply Ability

30 Unit/Units per Month

Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler

Get Best Price

Video

Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine

Get Best Price

Video

Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent

Get Best Price

Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

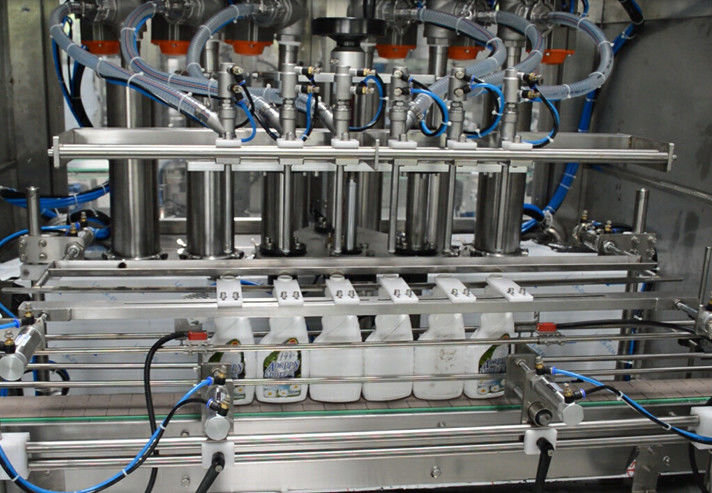

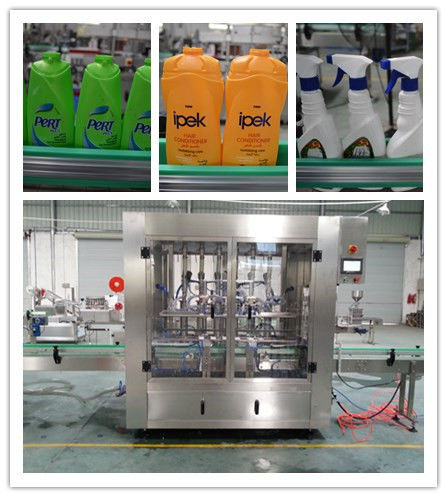

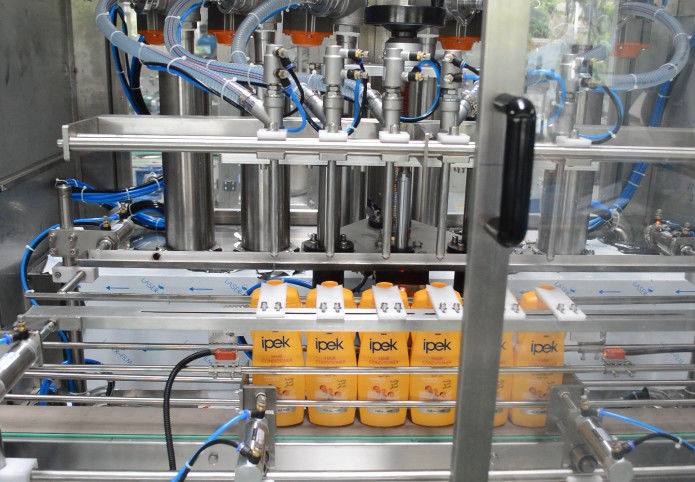

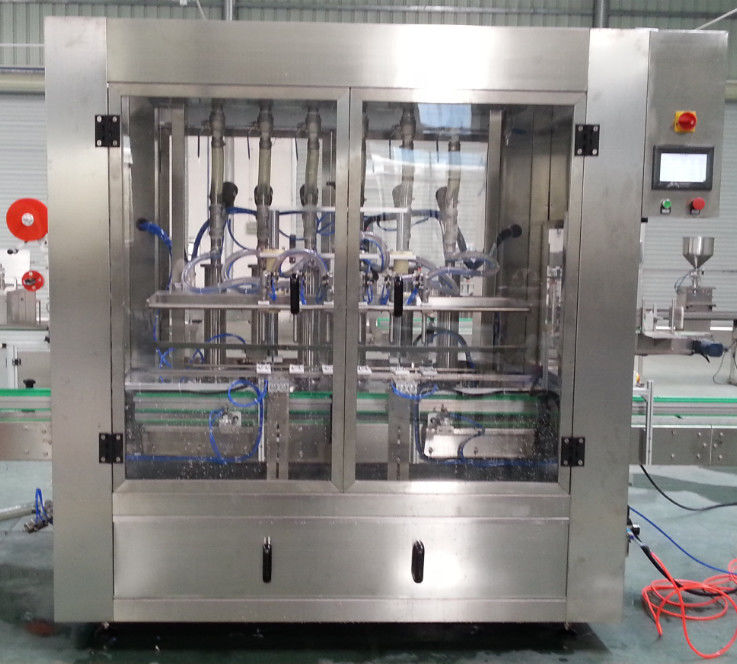

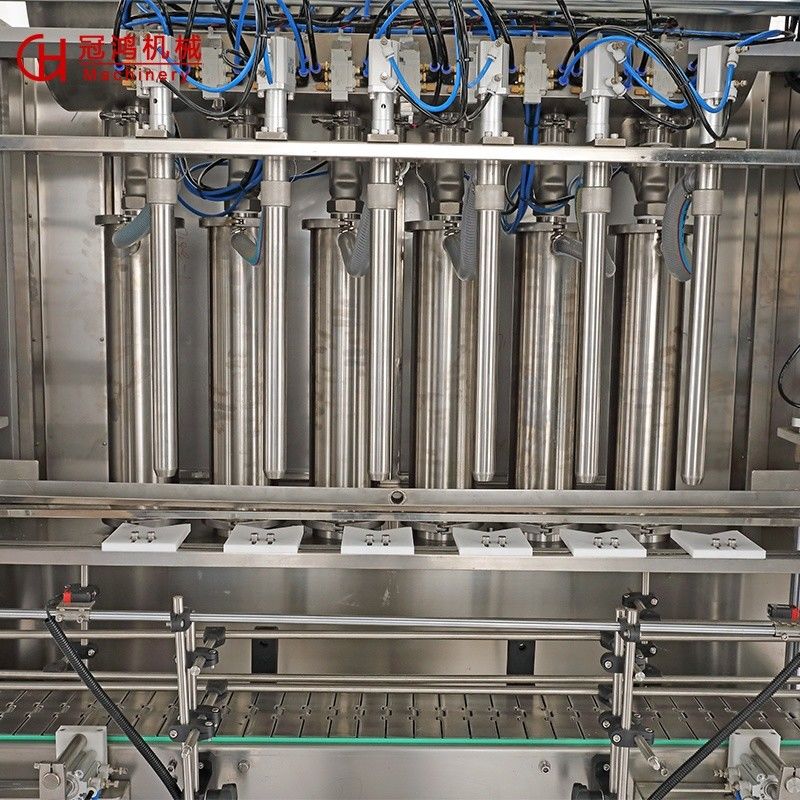

Automatic servo piston chili sauce filling machine

It is integrated with electrical and pneumatic all together, with PLC touch screen control system, which has a high degree of automation, simple and convenient operation, and high filling accuracy. And with each filling head can be individually controlled to adjust the filling accuracy characteristics, prolong equipment using life and flexibility. This equipment is widely used in food, daily chemical, chemical and Medical industries. Such as: chili sauce, cooking oil, shampoo, lubricants, cough syrup and other products.

Key selling point

1. Motion control system + networking

2. Intelligent adjusting machine

3. High speed filling

4. Dive into filling

5. Accurate capacity

6. Exquisite appearance

7. Less space occupied

8. One-click cleaning

9. One-click alignment position

Specification

item	value
Type	Filling Machine
Packaging Type	Wooden case
Packaging Material	Wood
Automatic Grade	Automatic
Voltage	220V/380V
Place of Origin	China
Dimension(LWH)	230016002500mm
Weight	750KG
Warranty	1 Year
	Online support, Video technical support
Production capacity	4, 6, 8, 10, 12, 14, 16 heads
Filling method	servo piston type
Filling type	quantitative filling
Filling capacity	100~500ml,500~1000ml,1000~5000ml
Filling speed	about 25-30 bottles minute (calculated in 500 ml bottle)
Can be connected with	capping machine, labeling machine, bottle unscrambler
Filling error	±1%
Air pressure	0.6-0.8MPa
Power	about 4KW/AC220V 50/60HZ
Program control	PLC + touch screen

Company Profile

Packaging & Delivery

Customer Photos

FAQ

1: Q: Is your company a factory?

A: Yes, we are a machinery factory that located in Guangzhou, China.

2: Q: Do you have certificates ?

A: Yes. CE, GMP quality.

3: Q: What are the payment methods?

A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.

4: Q: What's the lead time ?

A: Usually our delivery time is around 30 to 45 days.

5: Q: Do you support OEM/ODM?

A: Yes, we can accept OEM/ODM.

6: Q: How to pay Express Charge if order samples ?

A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.

If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.

7: Q: Deliver goods by air or by ship ?

A: Both are okay, you would choose your agent or we would arrange for you.

8: Q: How to visit your factory ?

A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
