Name: Automatic Plastic Glass Bottle Hand Wash Filling Machine with 304 Stainless Steel
Brand: Guangong
SKU: Guangong
Price: 9 USD
Availability: InStock
Rating: 4.6 (114 reviews)

Home > products > Bottle Filling Machine >

Automatic Plastic Glass Bottle Hand Wash Filling Machine with 304 Stainless Steel

Place of Origin:

Guangdong, China

Brand Name:

Guangong

Certification:

Request A Quote

Automatic Plastic Glass Bottle Hand Wash Filling Machine with 304 Stainless Steel

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

2400BPH

Applicable Industries:

Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Energy & Mining, Food & Beverage Shops

Showroom Location:

None

Application:

Beverage, Commodity, Chemical, Machinery & Hardware, Liquid

Packaging Type:

Bottles, Barrel, Other

Packaging Material:

Plastic, Wood

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

220V 50-60HZ

Weight:

1000 KG

Warranty:

1 Year

Key Selling Points:

Automatic

Filling Material:

Beer, Water, Oil, Juice

Filling Accuracy:

±1%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

Filling Nozzles:

2 Heads

Filling Form:

Servo Piston Type

Filling Capacity:

500ML-5000ML

Filling Accurary:

±1%

Program Control:

PLC+touch Screen

Material Of Contact Parts:

304# Stainless Steel, PVC

Air Pressure:

0.6-0.8Mpa

Conveyor Belt:

82mm Wide POM Chain Belt, Speed 0-15m/min

Conveyor Motor:

750W Frequency Control Motor

Filling Speed:

About 40-50 Bottles/min

After Warranty Service:

Video Technical Support, Online Support

Local Service Location:

None

After-sales Service Provided:

Online Support, Video Technical Support

Marketing Type:

Hot Product 2021

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$9,900.00/sets >=1 sets

Packaging Details

Wooden case

Supply Ability

500 Set/Sets per Year

Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler

Get Best Price

Video

Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine

Get Best Price

Video

Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent

Get Best Price

Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

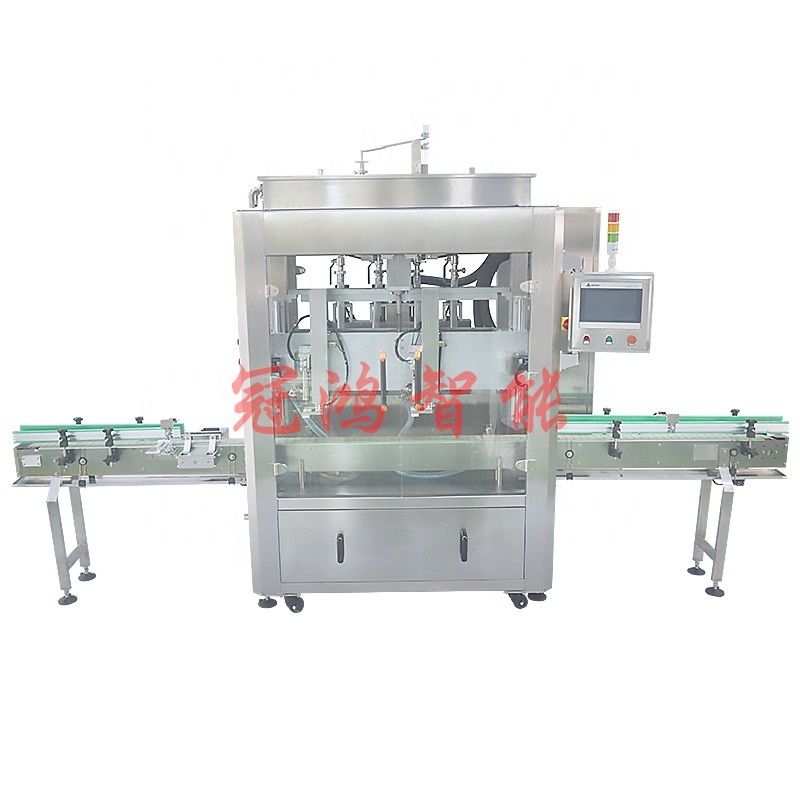

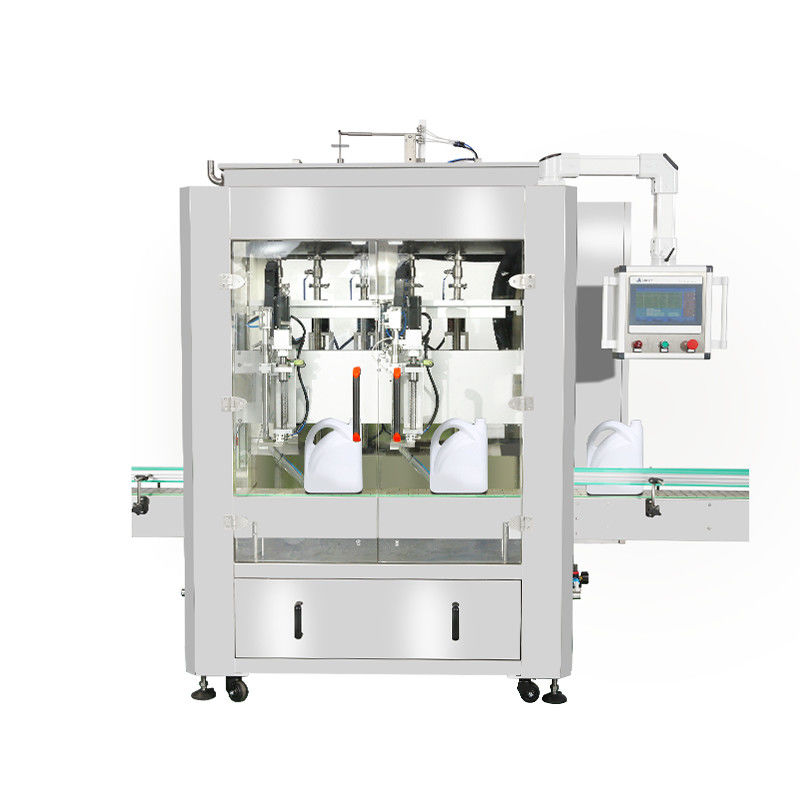

Automatic double heads liquid filling machine

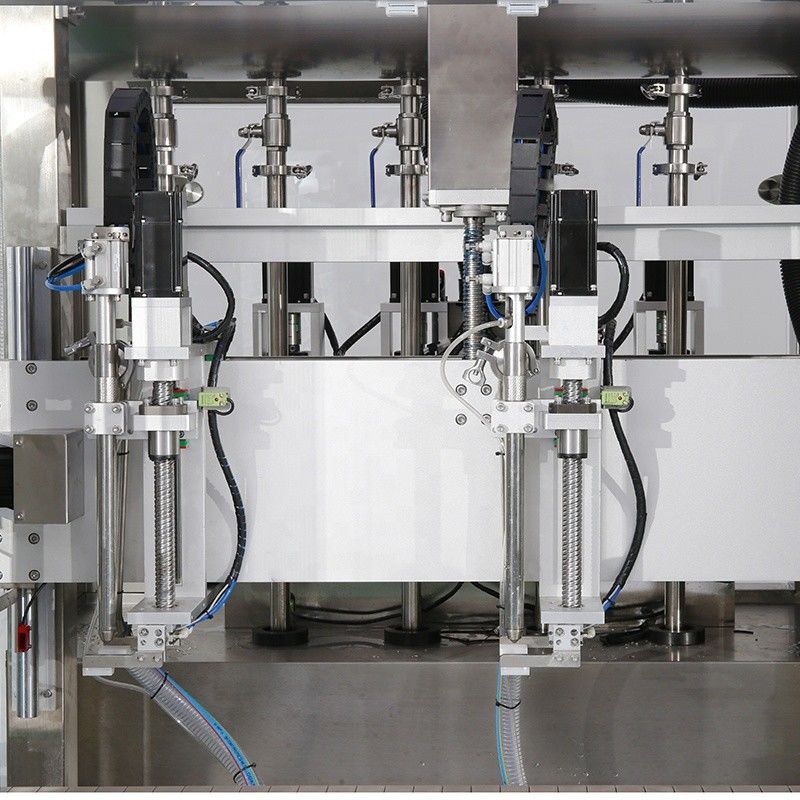

Tracking type high speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.

Technical Parameters:

1. Filling head: 2 heads

2. Filling capacity: 500-5000ml
3. Filling form: double head servo tracking type filling
4. Filling speed: about 40-50 bottles/min (Based on 500ml bottle, actually depends on bottle cap size and material)
5. Filling accuracy: ±1%
6. Material: The filling machine frame is 304# stainless steel
7. Program control: Cotrust motion control system (motion control bus, touch screen, etc.)
8. Filling nozzle, feed tank and other liquid contact parts material: 304# stainless steel, food grade PVC
9. Pressure: 0.6-0.8 MPa
10. Conveyor belt :82mm wide POM chain belt, speed 0-15m/min, height 850mm±25mm off the ground
11. Conveyor motor: 370W frequency control motor
12. Power: about 2kW /AC220V/380V 50/60Hz

Product Paramenters

No	Item	Data
1	Quantity of filling head	2 heads
2	Filling capacity	500-5000ml
3	Filling speed	about 40-50 bottles/min
4	Filling accuracy	±1%
5	Material	The filling machine frame and contact parts material is 304# stainless steel
6	Program control	Cotrust motion control system Package
7	Power	about 2kW /AC220V/380V 50/60Hz
8	Conveyor motor	370W frequency control motor

Company Profile

Guangdong Guanhong Intelligent Equipment Co., Ltd.

Our company is a factory that specialized in manufacturing automatic packaging machinery which focus on the research, design, manufacturing and sales. Since its establishment, our company has continuously introduced advanced technology and high-tech technical talents to provide users with tailor-made packaging equipment with professional services and rich experience. Our company’s main equipments: bottle washing machine, dryer series, filling machine series, capping sealing machine series, labeling machine series, filling production line series, with excellent cost-effective, unanimously praised by new and old customers. Ensuring quality, credibility, and enthusiasm service is the purpose of our consistent execution, to provide customers with more customized products and a full range of services. Our long-term pursue is dedicated to improving customer satisfaction and enabling our customers to obtain the best return on investment.

Certifications

Customer Photos

Product packaging

FAQ

1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment ,50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL.FEDEX,TNT,UPS account, samples would be sent under freight collected through your account. If you don't have DHL,FEDEX,TNT,UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
