Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling

Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Contact Us
Request A Quote
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling
Product Details
Condition:
New
Type:
Filling Machine
Machinery Capacity:
2400BPH
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Showroom Location:
None
Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware
Packaging Type:
Wooden Case
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
AC220V 50/60HZ
Weight:
750 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Filling Material:
Beer, Water, Oil, Sanitizer, Shampoo, Liquid, Lubricant, Wax
Filling Accuracy:
±1%
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC
Production Capacity:
4, 6, 8, 10, 12, 14, 16 Heads
Filling Method:
Servo Piston Type
Filling Type:
Quantitative Filling
Filling Capacity:
100~500ml, 500~1000ml,1000~5000ml
Filling Speed:
About 25-30 Bottles/min (calculated In 500 Ml Bottle)
Can Be Connected With:
Capping Machine, Labeling Machine, Bottle Unscrambler
Filling Error:
±1%
Air Pressure:
0.6-0.8MPa
Power:
About 4KW/AC220V 50/60HZ
Program Control:
PLC + Touch Screen
After Warranty Service:
Video Technical Support, Online Support
Local Service Location:
None
After-sales Service Provided:
Online Support, Video Technical Support
Marketing Type:
Ordinary Product
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$11,500.00/pieces >=1 pieces
Packaging Details
wooden packing
Supply Ability
20 Unit/Units per Month
RELATED PRODUCTS
Good price Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler online Video

Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler

Get Best Price
Good price Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine online Video

Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine

Get Best Price
Good price Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent online Video

Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent

Get Best Price
Good price Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed online

Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed

Get Best Price
Contact Us
Contact Now
Product Description
Product Overview

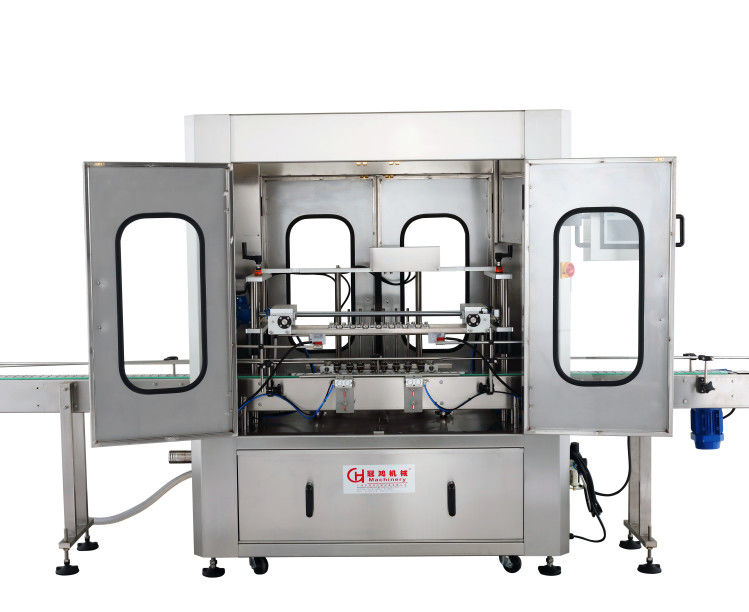

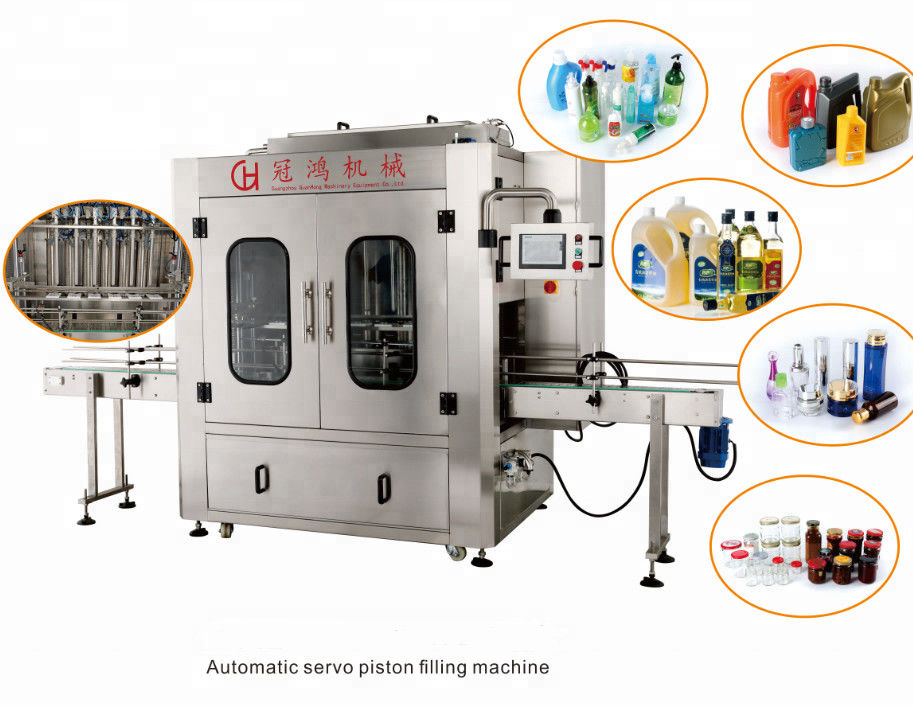

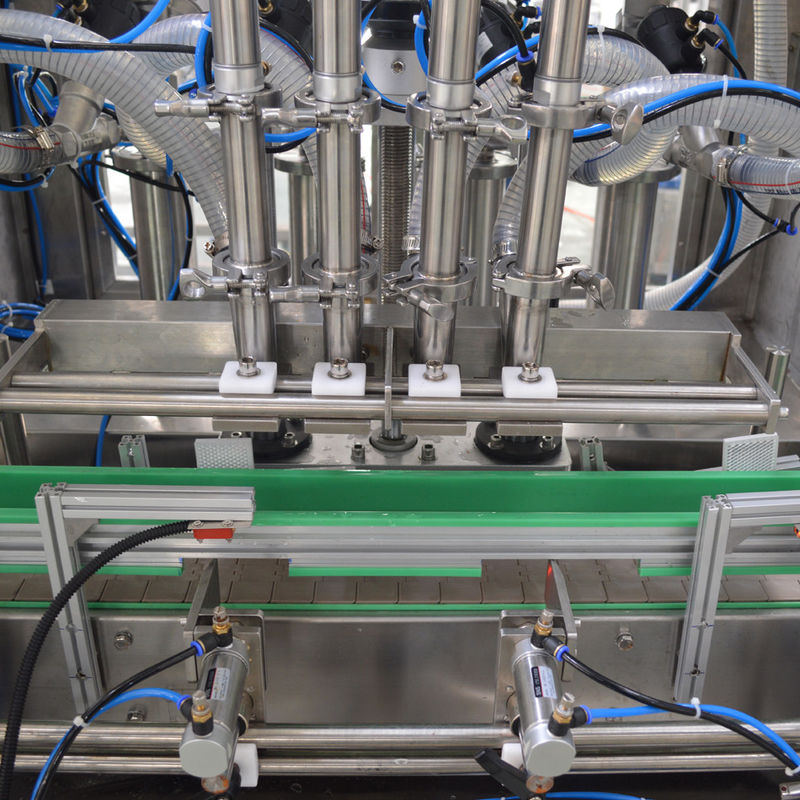

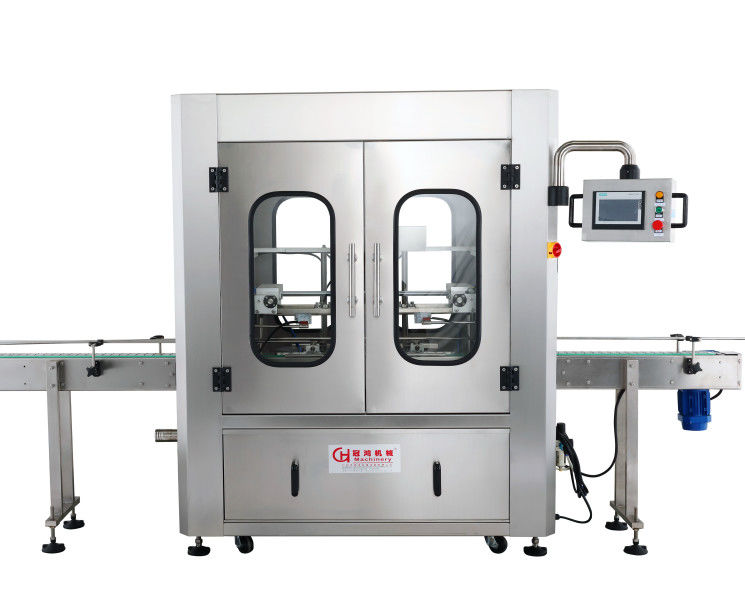

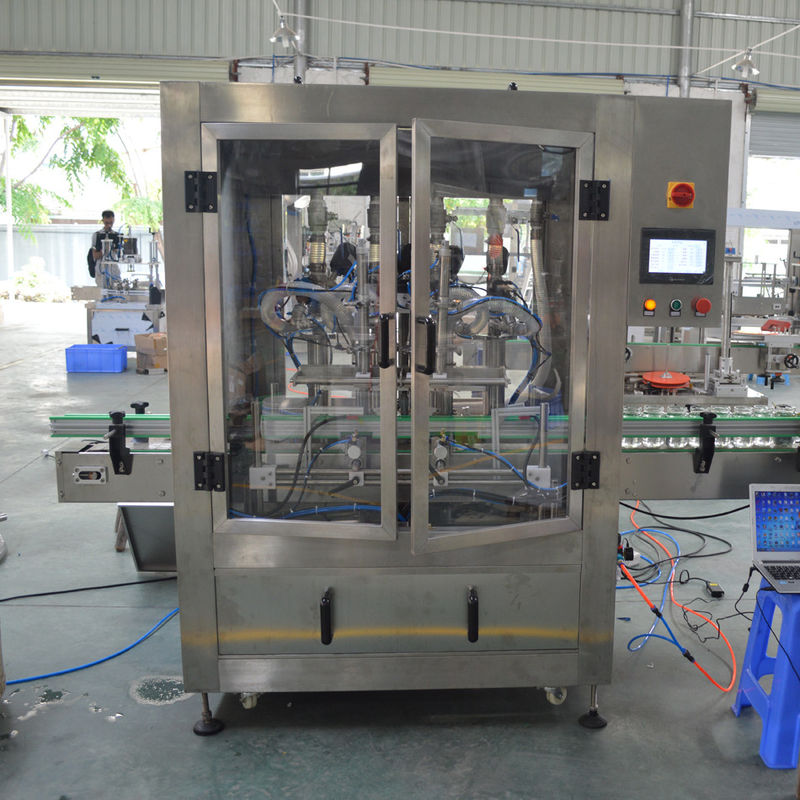

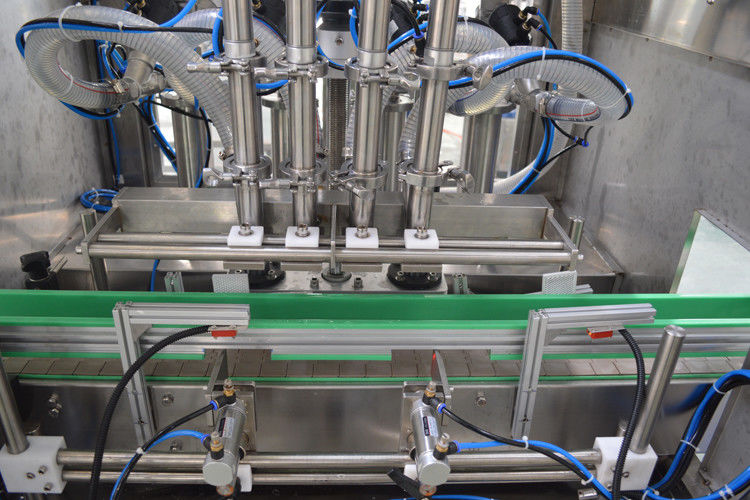

Automatic wax 4 head servo piston filling machine


It is integrated with electrical and pneumatic all together, with PLC touch screen control system, which has a high degree of automation, simple and convenient operation, and high filling accuracy. And with each filling head can be individually controlled to adjust the filling accuracy characteristics, prolong equipment using life and flexibility. This equipment is widely used in food, daily chemical, chemical and Medical industries. Such as: chili sauce, cooking oil, shampoo, lubricants, cough syrup and other products.
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 0

Key selling point
1. It adopts integrated-electric touch screen and PLC system control.

2. It is highly automated.

3. It is easy to operate.

4. The filling accuracy is high.

5. Each filling head can separately control the filling accuracy and increase the service life and flexibility.
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 1

Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 2

Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 3

Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 4
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 5
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 6
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 7
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 8
Automatic 4 Head Hot Piston Filling Machine for Hair Gel/Wax Program Control Filling 9
Product Paramenters
No.
Item
Data
1
Filling form
full servo drive mobile filling
2
Filling heads
4 heads （can be customized）
3
Filling speed
about 25-30 bottles/min (calculated in 500 ml bottle, the
actual size and material of the bottle)
4
Filling error
±1%
5
Material
304 stainless steel for filling frame
6
Program control
PLC + touch screen
7
Filling mouth and trough contact liquid parts material
304# stainless steel, food grade PVC
8
Air pressure
0.6-0.8MPa
9
Conveyor belt
82mm wide POM chain belt, speed 0-15 m/min, height 850mm ± 25mm off the ground
10
Conveying motor
370W variable frequency speed regulating motor
11
Power
about 4KW/AC220V 50/60HZ
12
Tank capacity
approx. 200 liters (with level switch)
