Chuck Type Reagent Tube Liquid Filling Capping Labeling Machine with 800 KG Capacity

Place of Origin:

Guangdong, China

Brand Name:

Request A Quote

Chuck Type Reagent Tube Liquid Filling Capping Labeling Machine with 800 KG Capacity

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

3000BPH

Applicable Industries:

Manufacturing Plant, Other, Medical

Showroom Location:

None

Application:

Medical

Packaging Type:

Tube

Packaging Material:

Plastic

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

220/380V 50-60HZ

Dimension(L*W*H):

3000*2000*1800mm

Weight:

800 KG

Warranty:

1 Year

Key Selling Points:

Competitive Price

Filling Material:

Liquid

Filling Accuracy:

±5%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

After-sales Service Provided:

Online Support

Number Of Filling Heads:

Filling Form:

Peristaltic Pump + Clamp Flowmeter Filling (quantitative Flow Meter)

Filling Capacity:

About 1.6ml

Production Speed:

About 3000 Bottles/hour

Material:

The Frame Adopts 304# Stainless Steel

The Number Of Capping Heads:

Cap Sorting Form:

Vibration Cap Sorter

Cap Height Detection:

Electric Eye Detection (automatic Elimination)

Marketing Type:

Hot Product 2020

Port:

Guangzhou HuanPu

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$50,000.00/sets >=1 sets

Packaging Details

wooden packing

Supply Ability

20 Set/Sets per Month

Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine

Get Best Price

Video

Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash

Get Best Price

Video

6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service

Get Best Price

Video

Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

Product Paramenters

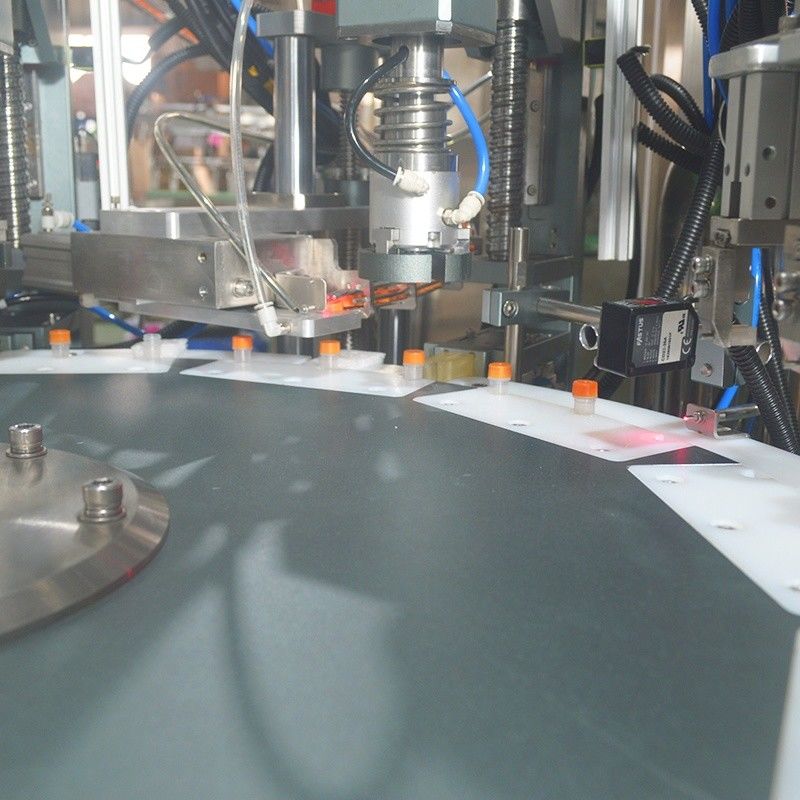

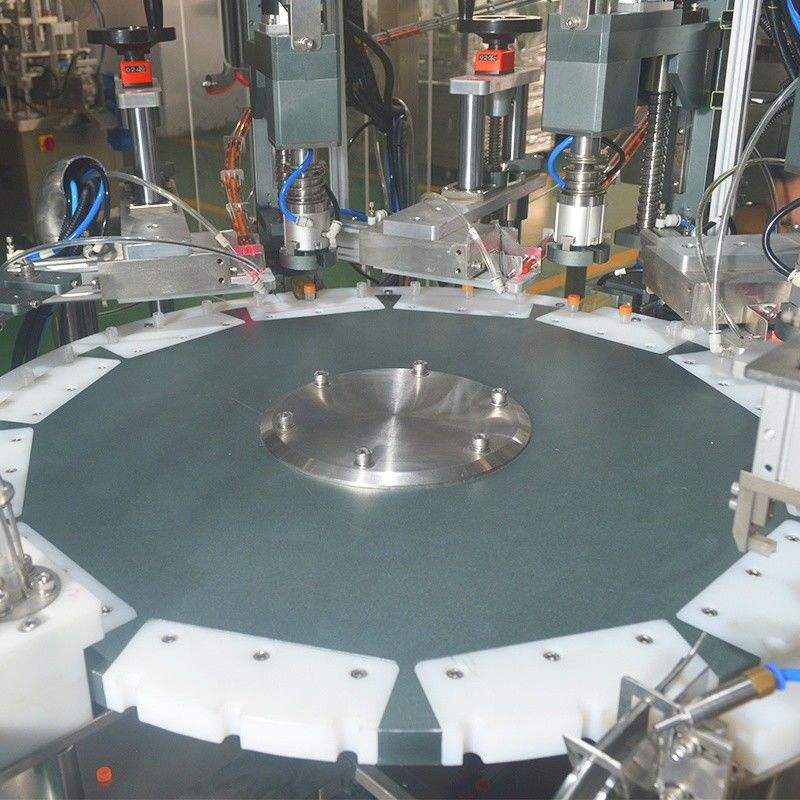

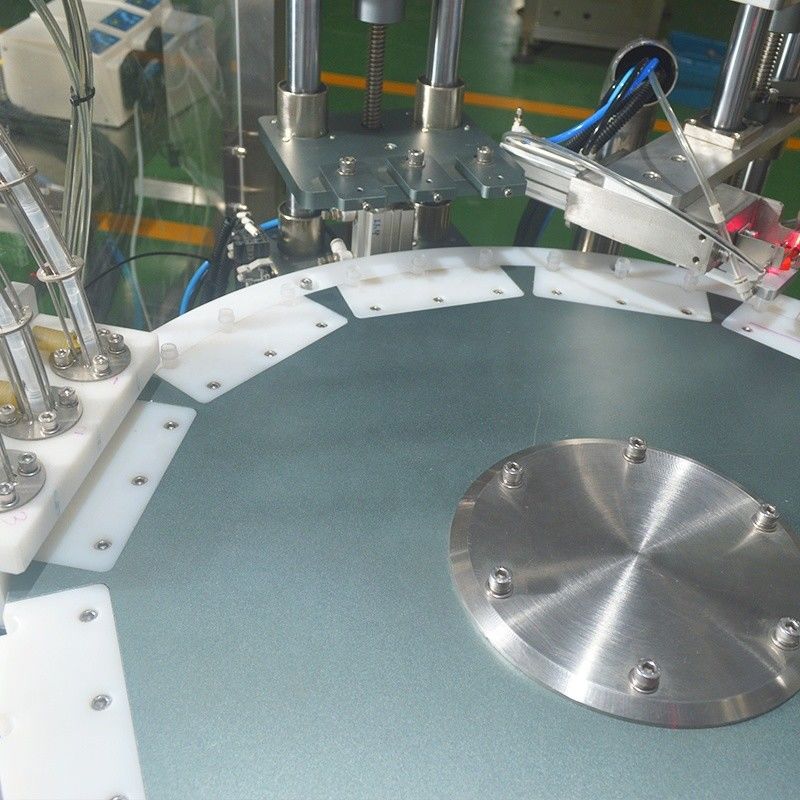

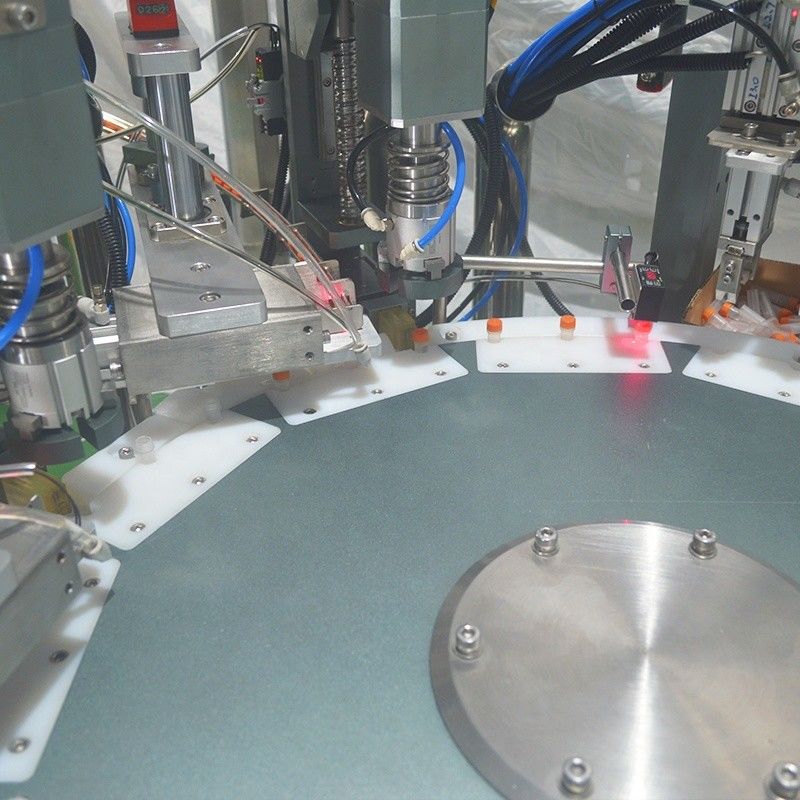

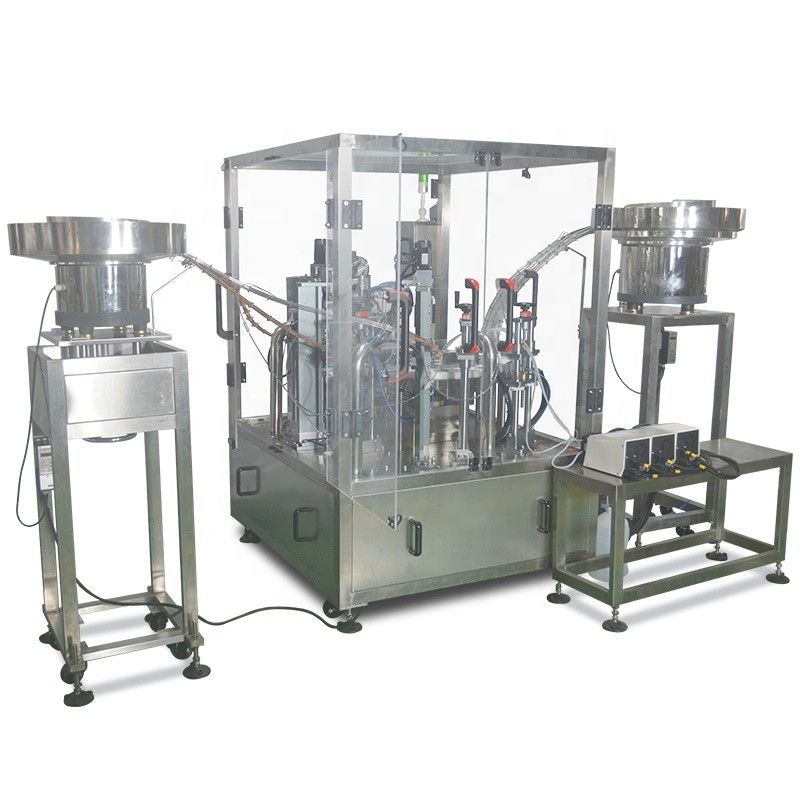

Chuck type filling, capping and labeling all in one machine

Technical parameters:

1, Suitable bottle type: according to customer sample (1 bottle)
2, Bottle feeding form: vibration bottle sorter automatic bottle feeding
3, Number of filling: 3
4, Filling form: peristaltic pump + clamp flowmeter filling (quantitative flow meter)
5, Filling capacity: about 1.6ml
6, Filling accuracy: ±5%
7, Cap sorting form: vibration cap sorter
8, Cap feeding: automatic buckle cap and put cap
9, The number of caps: 3
10, Screw cap form: servo screw cap
11, Cap height detection: electric eye detection (automatic elimination)
12, Production speed: about 3000 bottles/hour
13, Material: The frame adopts 304# stainless steel
14, Filling nozzle and material tank contact liquid parts material: 304# stainless steel, silicone tube, teflon tube
15, The whole machine power: about 5KW
16, Program control: PLC+ touch screen
17, Air pressure: 0.6-0.8mpa
18, Power supply: AC220V/380V, 50/60Hz.

NO.	item	value
1	Suitable bottle type	according to customer sample (1 bottle)
2	Bottle feeding method	vibration bottle sorter automatic bottle feeding
3	Number of filling heads	3
4	Filling form	peristaltic pump + clamp flowmeter filling (quantitative flow meter)
5	Filling capacity	about 1.6ml
6	Cap feeding	automatic buckle cap and put cap
7	Filling accuracy	±5%
8	Cap sorting form	vibration cap sorter
9	The number of caps	3
10	Screw cap form	servo screw cap
11	Cap height detection	electric eye detection (automatic elimination)
12	Production speed	about 3000 bottles/hour
13	Material	The frame adopts 304# stainless steel
14	Filling nozzle and material tank contact liquid parts material	304# stainless steel, silicone tube, Teflon tube
15	The whole machine power	about 5KW
16	Power supply	AC220V/380V, 50/60Hz.
17	Program control	PLC+ touch screen
18	Air pressure	0.6-0.8mpa
