Name: Customizable Automatic Gel Filling and Capping Machine for Viscous Liquid Packaging
Brand: Guanhong
SKU: Guanhong
Price: 11 USD
Availability: InStock
Rating: 4.5 (169 reviews)

Home > products > Bottle Filling Machine >

Customizable Automatic Gel Filling and Capping Machine for Viscous Liquid Packaging

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

Customizable Automatic Gel Filling and Capping Machine for Viscous Liquid Packaging

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

1600BPH

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Other

Showroom Location:

None

Application:

Beverage, Chemical, Commodity, Food, Machinery & Hardware, Other, Gel

Packaging Type:

Wooden Case

Packaging Material:

Wood

Automatic Grade:

Automatic

Driven Type:

Pneumatic

Voltage:

220V 50HZ

Weight:

750 KG

Warranty:

1 Year

Key Selling Points:

High Productivity

Filling Material:

Gel

Filling Accuracy:

± 1%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

Filling Heads:

2 Heads

Filling Capacity:

1-10 Ml

Capping Form:

Cylinder Press Cap

Production Speed:

900-1500 Pieces/hour

Air Pressure:

0.6-0.8MPa

Power:

3KW

Program Control:

PLC + Touch Screen

Material:

304# Stainless Steel

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$11,580.00/sets >=1 sets

Packaging Details

wooden packing

Supply Ability

20 Unit/Units per Month

Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler

Get Best Price

Video

Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine

Get Best Price

Video

Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent

Get Best Price

Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed

Get Best Price

Contact Now

Product Description

Product Overview

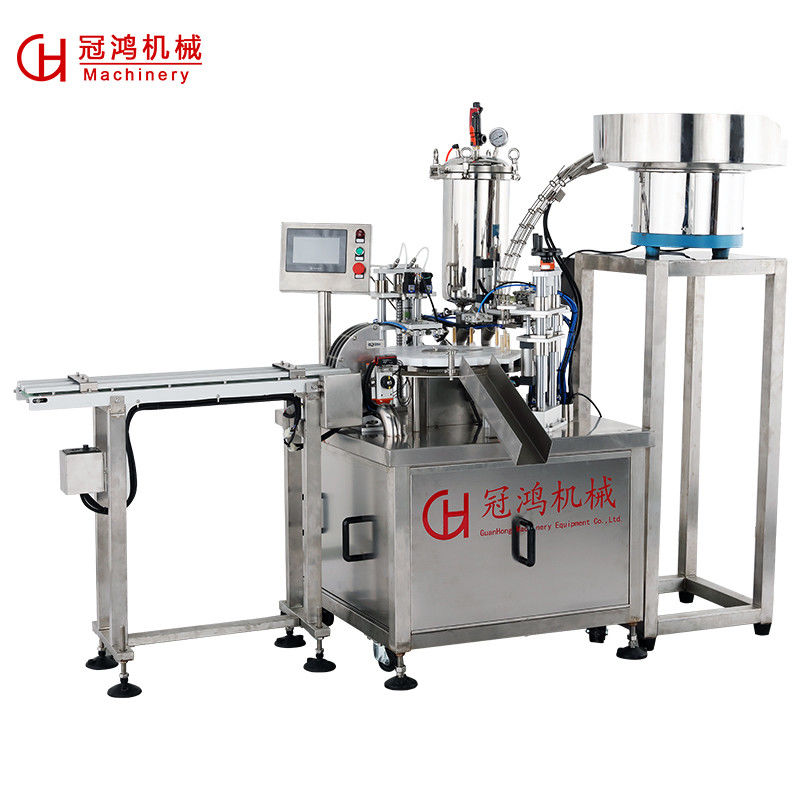

Automatic gel-filling-machine viscous liquid fill machine

This equipment is gel filling machine independently researched and developed by our company. It has independent intellectual property rights and the device patent number is: ZL 2017 2 0175862.7 It is integrated with electrical and pneumatic all together. It is easy to operate and is fully accord with GMP in China. It is the most ideal gel filling equipment. The equipment adopts servo piston type quantitative filling, which has high filling precision and can minimize the bubbles of the gel itself and achieve aesthetic effect. The equipment can also fill thinner materials at the same time and can also fill thicky materials, effectively solving the trouble of fill thicky materials, which OEM/ODM can't achieve.

Key selling point

1. We use the pressure tank to press the bubbles out, so there will be no bubbles

2. We have Utility Model Patent Certificate

3. Raising while filling to avoid contaminating materials (piston quantitative filling)

4. Hopper and filling nozzle all adopt quick loading and quick unloading mode, which can be taken for disinfection and cleaning

Product Paramenters

No	Item	Data
1	Filling head	2 heads
2	Cap feeding head	2 heads
3	Capping head	2 heads
4	Suitable for bottle type	three/four sets of gel round tube or flat tube
5	Filling capacity	3~5g
6	Filling form	servo-driven piston filling
7	Arrange cap form	electromagnetic vibrating plate (vibration plate and guide rail need to be replaced in different specifications)
8	Cap feeding method	pneumatic feeding
9	Capping method	pneumatic capping
10	Production speed	1600 bottles/hour
11	Filling accuracy	±1%
12	Machine power	about 2KW
13	Program control	PLC + touch screen
14	Main material	The rack uses 304# stainless steel, and contacted part material parts use 304# stainless steel and silicone tube
15	Material tank volume	about 30L
16	Air pressure	0.6-0.8MPa
17	Voltage	AC220V 50/60HZ
18	Equipment dimension	L2700×W1300×H1500mm

Recommend Products

Packaging & Delivery

Company Profile

Guangdong Guanhong Intelligent Equipment Co., Ltd.

Guangdong Guanhong Intelligent Equipment Co., Ltd. is a factory that specialized in manufacturing automatic packaging machinery which focus on the research, design, manufacturing and sales. Since its establishment, our company has continuously introduced advanced technology and high-tech technical talents to provide users with tailor-made packaging equipment with professional services and rich experience.

Our company is specialized in: bottle washing machine, drying machine, filling machine, capping sealing machine, labeling machine, filling production line, with excellent cost-effective, unanimously praised by new and old customers.
Ensuring quality, credibility, and enthusiasm service is the purpose of our consistent execution, to provide customers with more customized products and a full range of services. Our long-term pursue is dedicated to improving customer satisfaction and enabling our customers to obtain the best return on investment.

Our Advantages

1. The company has strong strength, covering an area of about 6000-7000 square meters.

2. Excellent geographical location. The company is located in Nansha District, Guangzhou City, Guangdong Province, only half an hour away from Nansha Port.

3. Continuously introduce advanced technology and high-tech talents, with professional services, rich experience to provide users with customized packaging equipment.
4. Constant innovation and development, advancing with The Times, to provide enterprises with generation after generation of equipment.
5. Excellent performance and perfect after-sales system has been praised by the majority of users.
6. Guaranteeing quality, credibility and enthusiasm service are our tenet.
7. Customer satisfaction is our eternal pursuit.
8. High design ability, strong non-standard customization ability.
9. Rich industry experience, such as P&, Nivea, CONBA, GOLSITE, Blue Moon, LAF, etc..
10. There are a number of years of experience and familiar with the equipment of the master, high technical ability.

Customer Photos

FAQ

1: Q: Is your company a factory?

A: Yes, we are a machinery factory that located in Guangzhou, China.

2: Q: Do you have certificates ?

A: Yes. CE, GMP quality.

3: Q: What are the payment methods?

A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.

4: Q: What's the lead time ?

A: Usually our delivery time is around 30 to 45 days.

5: Q: Do you support OEM/ODM?

A: Yes, we can accept OEM/ODM.

6: Q: How to pay Express Charge if order samples ?

A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.

If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.

7: Q: Deliver goods by air or by ship ?

A: Both are okay, you would choose your agent or we would arrange for you.

8: Q: How to visit your factory ?

A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
