Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct

Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct

Place of Origin:

China

Brand Name:

Guanhong

Contact Us
Request A Quote
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct
Product Details
Condition:
New
Type:
Filling Machine
Machinery Capacity:
2400BPH
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Showroom Location:
None
Application:
Beverage, Commodity, Chemical
Packaging Type:
Bottles, Barrel, Other
Packaging Material:
Plastic, Glass
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
AC220V/380V 50/60Hz
Dimension(L*W*H):
2100*1400*2380mm
Weight:
750 KG
Warranty:
1 Year
Key Selling Points:
Automatic
Filling Material:
Water, Oil, Liquid, Liquid
Filling Accuracy:
±1%
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC
Quantity Of Filling Head:
2 Heads
Filling Capacity:
500-5000ml
Filling Form:
Double Head Servo Tracking Type Filling
Filling Speed:
About 40-50 Bottles/min
Pressure:
0.6-0.8 MPa
Conveyor Motor:
370W Frequency Control Motor
Power:
About 2kW /AC220V/380V 50/60Hz
Program Control:
Cotrust Motion Control System
Material:
Material: The Filling Machine Frame Is 304# Stainless Steel
Marketing Type:
Hot Product 2019
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$16,800.00/sets >=1 sets
Packaging Details
wooden packing
Supply Ability
20 Unit/Units per Month
RELATED PRODUCTS
Good price Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler online Video

Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler

Get Best Price
Good price Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine online Video

Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine

Get Best Price
Good price Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent online Video

Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent

Get Best Price
Good price Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed online

Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed

Get Best Price
Contact Us
Contact Now
Product Description
Recommend Products
Product Overview

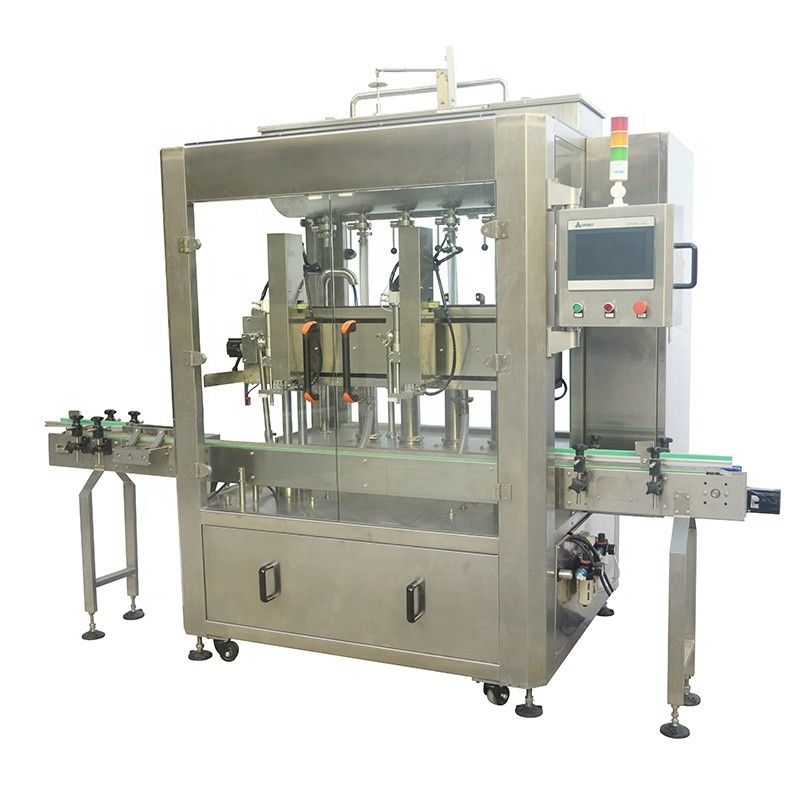

Double heads tracking type filling machine

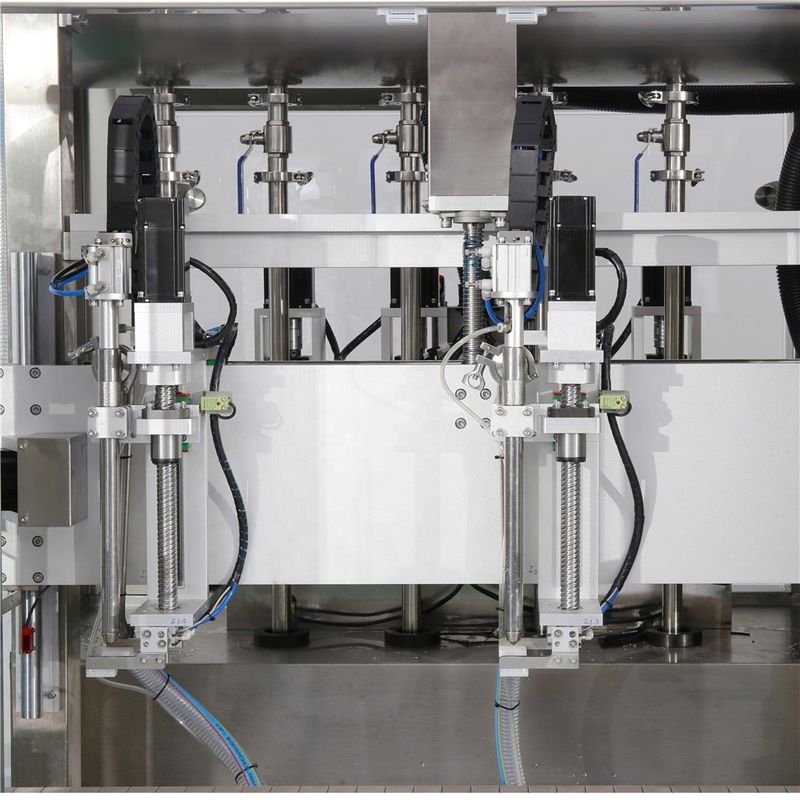

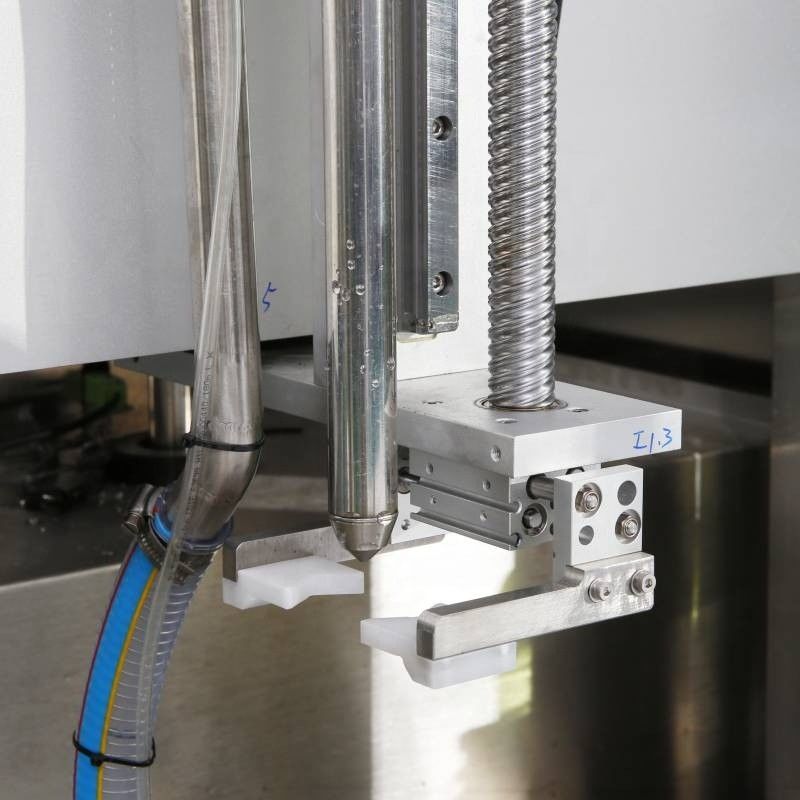

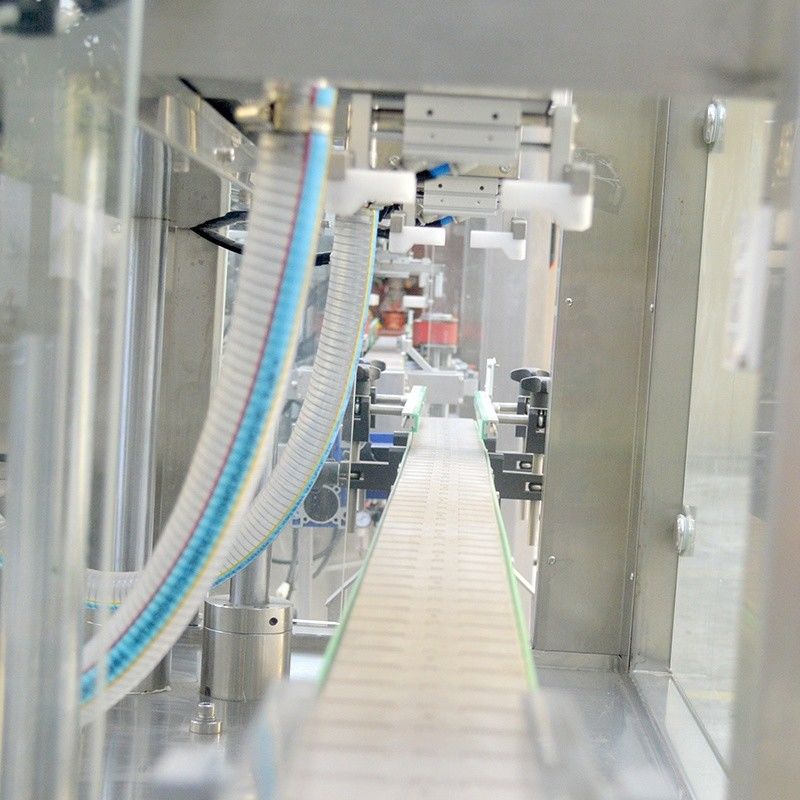

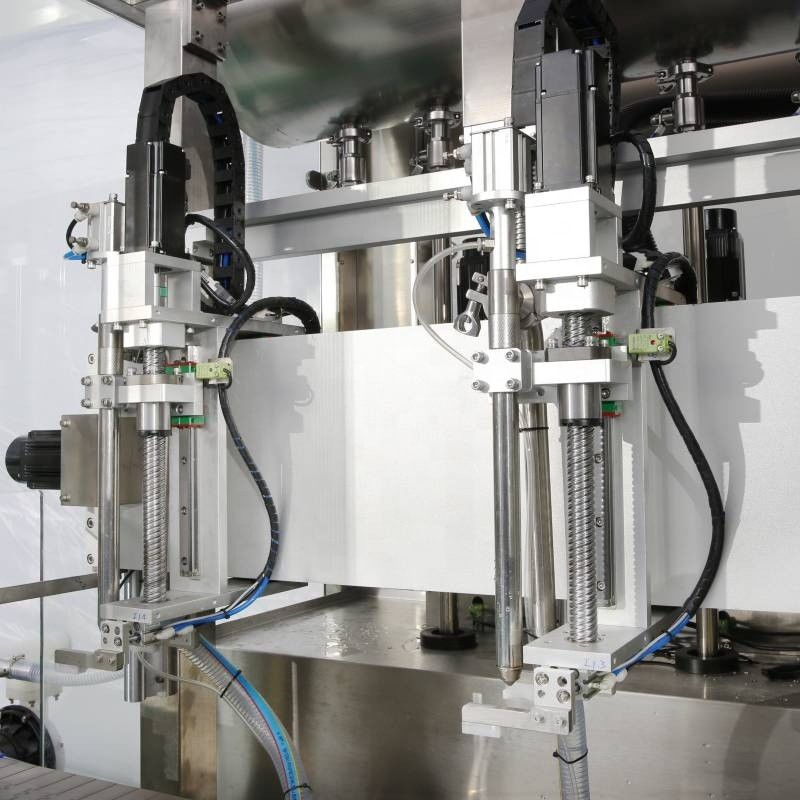

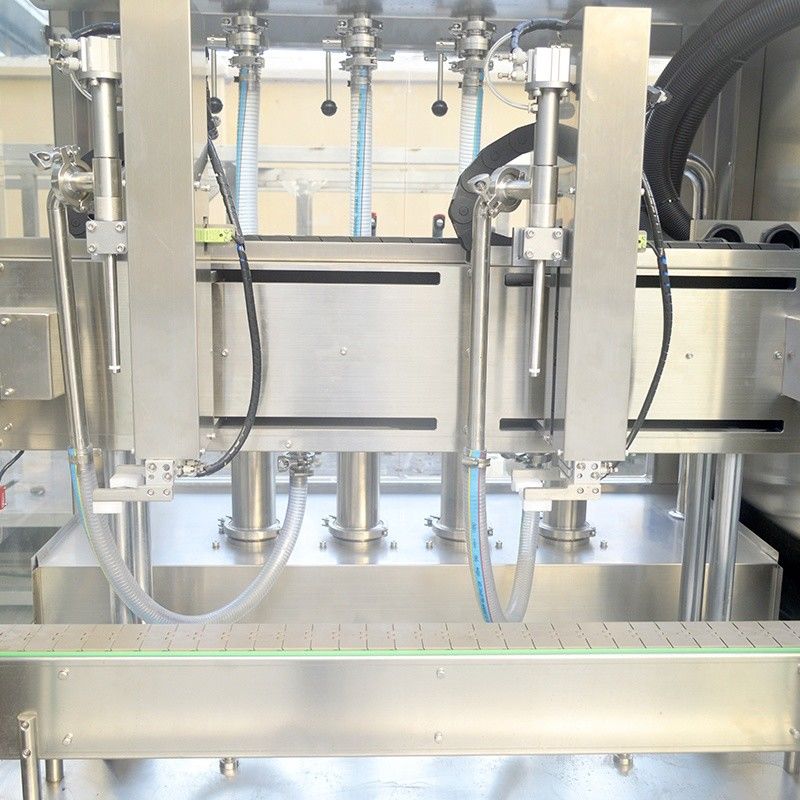

Tracking type high speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 0

Key selling point

1. Motion control system + networking
2. Intelligent adjusting machine
3. High speed filling
4. Dive into filling
5. Accurate capacity
6. Exquisite appearance
7. Less space occupied
8. One-click cleaning
9. One-click alignment position


Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 1

Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 2

Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 3

Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 4
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 5
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 6
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 7
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 8
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 9
Specification
item
value
Type
Filling Machine
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V 50-60HZ
Place of Origin
China
Warranty
1 Year
Service
Online support, Video technical support
Marketing Type
Hot Product 2021
Filling nozzles
2 heads
Filling form
Servo piston type
Filling capacity
2L
Filling accurary
±1%
Program control
PLC+touch screen
Air pressure
0.6-0.8Mpa
Conveyor belt
82mm wide POM chain belt, speed 0-15m/min
Conveyor motor
750W frequency control motor
Filling speed
About 40-50 bottles/min
Fuction
with feeding pump, bunker, automatic feeding, without descending
Company Profile
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 10
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 11
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 12
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 13
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 14
Packaging & Delivery
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 15
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 16
Customer Photos
Automatic Double Heads Tracking Type Filling Machine Customized Non-Standard Direct 17
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
