1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube

1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Contact Us
Request A Quote
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube
Product Details
Condition:
New
Type:
Filling Machine
Machinery Capacity:
Other, 400BPH, 500BPH, 2000BPH, 1000BPH, 100BPH, 200BPH
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert
Showroom Location:
None
Application:
Beverage, Chemical, Food, Machinery & Hardware, Commodity, APPAREL, Textiles, Cigarettes, Tobacco, Perfume, Vial, Test Tube, Vaccine
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Pouch, Case, Other
Packaging Material:
Wood
Automatic Grade:
Automatic
Driven Type:
Pneumatic
Voltage:
220/380V 50-60HZ, AC220V/380V 50HZ/60HZ
Weight:
320 KG
Warranty:
1 Year
Key Selling Points:
Multifunctional
Filling Material:
Other, Milk, Water, Oil, Juice, Powder, Perfume, Oral Liquid, Vaccine
Filling Accuracy:
±1%
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC
Filling Head:
1 Head
Capping Head:
1 Head
Labeling Machine:
1 Pcs
Filling Accuracy:
± 1%
Production Capacity:
1000BPH
Filling Range:
5-100ml
Power:
3KW
Air Pressure:
0.6-0.8Mpa
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$16,800.00/pieces 1-1 pieces
Packaging Details
wooden packing
Supply Ability
50 Piece/Pieces per Month
RELATED PRODUCTS
Good price Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine online Video

Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine

Get Best Price
Good price Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash online Video

Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash

Get Best Price
Good price 6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service online Video

6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service

Get Best Price
Good price Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed online Video

Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed

Get Best Price
Contact Us
Contact Now
Product Description
Recommend Products
Product Overview

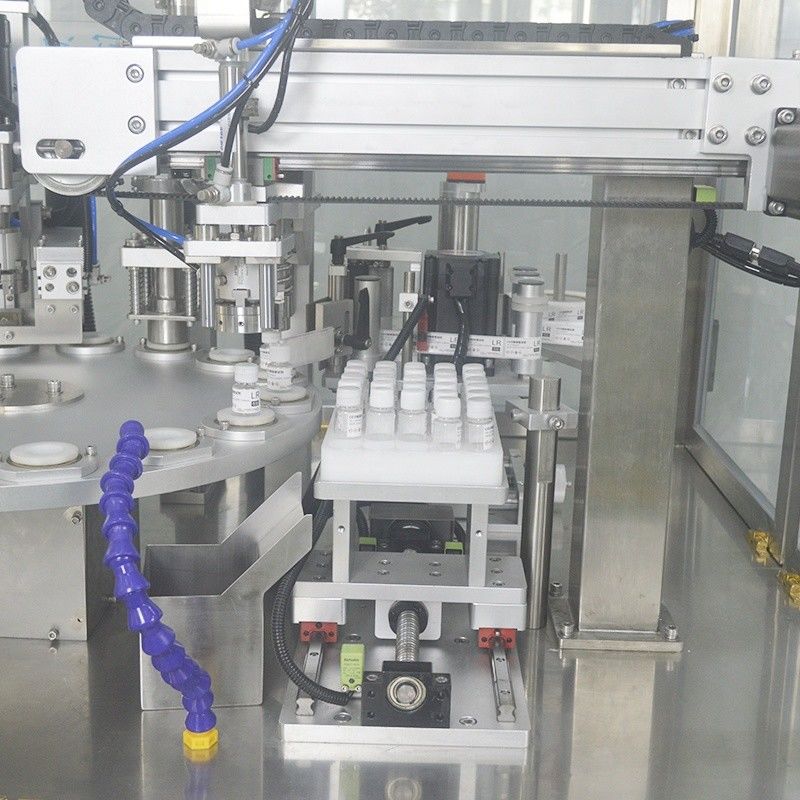

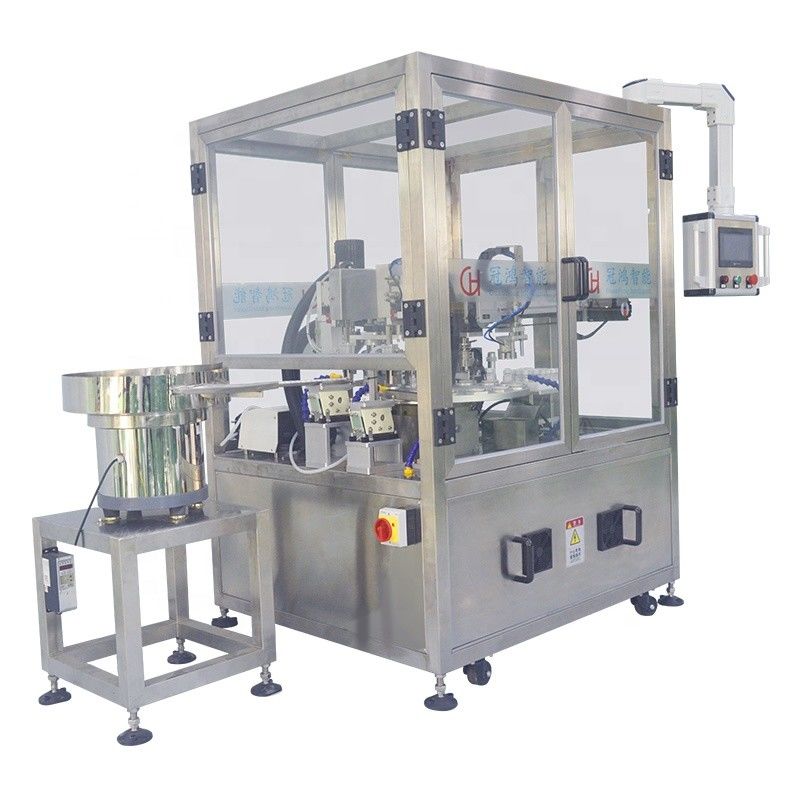

Automatic monoblock small bottle/vial filling capping and labeling production line


This machine is a new production line for small bottle filling, capping and labeling. The production line is suitable for small bottle filling, capping and labeling. The factory reasonable structure and compact mostly used in laboratory or small and medium batch liquid filling capping labeling. This machine is made of stainless steel material above 304#, which is very convenient to clean, cost-effective and high production efficiency. It is the choice of filling, capping, labeling machine in daily chemical and food industries.

1. Use one bucket bottle machine collecting mechanism to collect glass bottles(need to manually put bottles into the bucket)
2. The bottle goes down automatically, through the PVC conveyor belt turnover mechanism into the chuck mechanism
3. Single head labeling, visual detecting the bottle labeling, and the bottle lids, with a display screen
4. Servo torque rotary capping, can add code injection or printing machine, can change other filling or capping mode, can add hydraulic seal, aluminum foil seal cutting

1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 0
Key selling point
1. Covers a small area, fully functional, optional functional modules, and each function can be quoted separately

2. Highly automated

3. Convenient for cleaning, cost-effective and high production efficiency

4. The choice of daily chemical all-in-one machine and food industry
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 1

1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 2

1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 3

1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 4
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 5
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 6
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 7
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 8
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 9
Product Paramenters
Filling head
1 (can be increased according to customer' demand)
Capping head
1 (can be increased according to customer' demand)
Number of labeling
1 (can be increased according to customer' demand)
Visual dectecting
1
Suitable bottle type
according to the customer's bottle sample
Cap sorter form
electromagnetic vibration (differemt bottle type need to replace the chuck)
Machine power
about 3KW
Program control
PLC + touch screen
Air pressure
0.6-0.8Mpa
Voltage
AC220V/380V 50/60HZ
Production capacity
1000BPH
Company Profile
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 10
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 11
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 12
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 13
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 14
Packaging & Delivery
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 15
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 16
Customer Photos
1 Head Capping Small Scale Filling Packing Line Machine for Multifunctional Test Tube 17
FAQ
1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted. For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before we send the machine, you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
