Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine

Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Contact Us
Request A Quote
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine
Product Details
Condition:
New
Type:
Filling Machine
Applicable Industries:
Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Other, Advertising Company, Other
Showroom Location:
None
Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Case, Other
Packaging Material:
Plastic, Paper, Metal, Glass, Wood, Other
Automatic Grade:
Semi-automatic
Driven Type:
Pneumatic
Voltage:
220/380V
Weight:
78 KG
Warranty:
1 Year
Key Selling Points:
Easy To Operate
Filling Material:
Milk, Water, Oil, Juice, Other
Filling Accuracy:
≥±0.3%
Machinery Test Report:
Not Available
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor
Filling Heads:
2 Heads
Filling Method:
Weighing Quantitative Filling
Filling Capacity:
5-50L
Filling Speed:
40-100 Barrels/hour ( Calculated According To 20 Kg)
Power Supply:
220/380V
Air Source Pressure:
0.5-0.8Mpa
Material:
Stailness Steel
Contect Liquid Parts Material:
304# Stainless Steel
Product Name:
Manual Weighing Filling Machine
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$5,900.00/sets >=1 sets
Packaging Details
Plywood case packing
Delivery Time
30-40 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
20 Unit/Units per Month
RELATED PRODUCTS
Good price Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler online Video

Automatic Edible Oil Cooking Oil Sunflower Coconut Peanut Oil Filling Machine Filler

Get Best Price
Good price Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine online Video

Voltage AC220V 50/60HZ Wine Filling Machine Line for Mini Olive Oil Bottling Machine

Get Best Price
Good price Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent online Video

Automatic 4 Head Liquid Filling Machine for Packaging Edible Oil/Shampoo/Liquid/Detergent

Get Best Price
Good price Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed online

Automatic Weighing Filling Machine for Pistachio/Melon Seeds/Potato Chips High Speed

Get Best Price
Contact Us
Contact Now
Product Description

Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 0



Product Overview

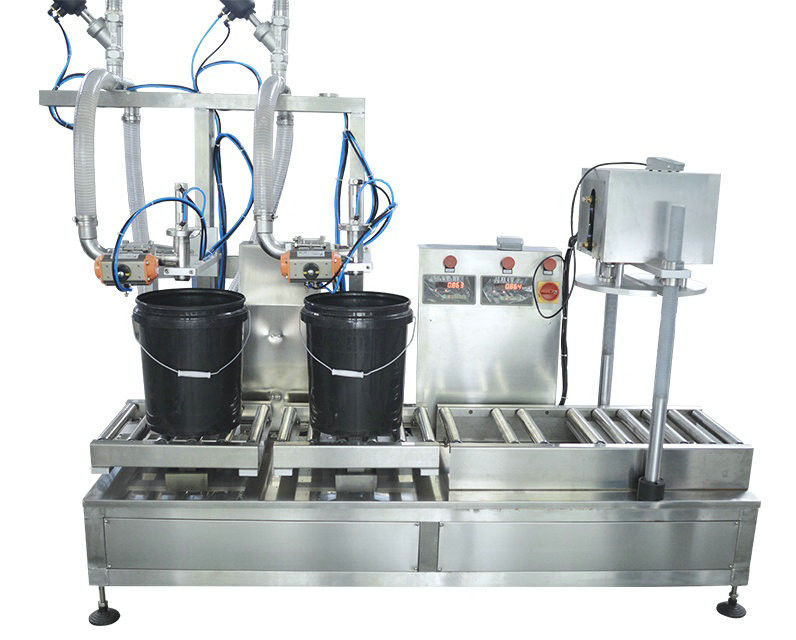

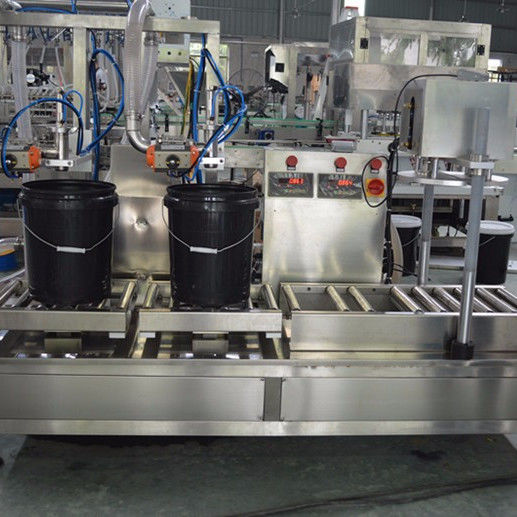

Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine
1:The system adopts weighing type filling with high measuring accuracy and is not affected by materials.
2:The end adopts frequency conversion speed regulation, which is composed of fast and slow feeding valves, which can increase the filling speed and increase the filling accuracy.
3:The measurement range is large, and the measurement error is plus or minus 10 grams per barrel. (Calculated by 18L)
4:The filling head adopts a vacuum suction and anti-drip device, and the filled material has no bubbles, and the effect is good.
5:Using world-renowned brands of electrical and pneumatic components, the failure rate is low, the performance is stable and reliable, and the service life is long.
6: This machine can be equipped with 1 head or 2 heads based on your need.
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 1
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 2

Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 3

Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 4

Specification
Packaging Type
Bottles, Barrel
Dimension(L*W*H)
900*900*1300mm
Weight
150KG
Warranty
1 Year

Online support, Video technical support
Product name
Semi-automatic weighing filling machine
Filling head
2 heads
Filling capacity
5~50 liters
Filling speed
40~100 barrels/hour (base on 20 kg)
Filling accuracy
≥±0.3%
Voltage
220/380V
Air pressure
0.5~0.8Mpa
Application
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 5
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 6
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 7
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 8
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 9
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 10

Company Profile
Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 11Semi-automatic 5-50 liters Paint Coating Building Material Syrup Drum Bucket Barrel Weighing Filling Sealing Machine 12
