Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor

Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor

Place of Origin:

Guangdong, China

Brand Name:

GH

Contact Us
Request A Quote
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor
Product Details
Type:
Packaging Line
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Food & Beverage Shops, Other
Showroom Location:
None
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Film, Foil, Belt, Pouch, Capsule
Packaging Material:
Plastic, Metal, Glass
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V
Dimension(L*W*H):
7000*1500*2400MM
Weight:
1700 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Machinery Test Report:
Provided
Video Outgoing-inspection:
Provided
Warranty Of Core Components:
1 Year
Core Components:
Motor, PLC
Filling Head:
4 Heads (customizd)
Filling Temperature:
Normal Temperature
Filling Range:
100~1000ml,1000ml~2000ml,3000ml~4000ml,5000ml
Filling Speed:
1000 BPH
Suitable For:
Wine,liquor,beer
Filling Error:
±1% Error
Air Pressure:
0.6-0.8MPa
Power:
About 4.5kw
Capping Form:
Locking Capping Machine
Capping Speed:
20~60 Bottles Per Minute
Marketing Type:
Hot Product 2019
Port:
Guangzhou
Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
$5,000.00 - $40,000.00/pieces
Packaging Details
wooden packing
Supply Ability
20 Unit/Units per Month
RELATED PRODUCTS
Good price Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine online Video

Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine

Get Best Price
Good price Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash online Video

Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash

Get Best Price
Good price 6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service online Video

6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service

Get Best Price
Good price Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed online Video

Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed

Get Best Price
Contact Us
Contact Now
Product Description
Recommend Products
Filling，locking capping and labeling machine production line process:

Put the bottle on the conveyor belt manually -- automatic filling -- automatic cap sorter and put cap-- automatic locking capping--automatic vertical labeling

(Production line can be customized according to customer requirements)

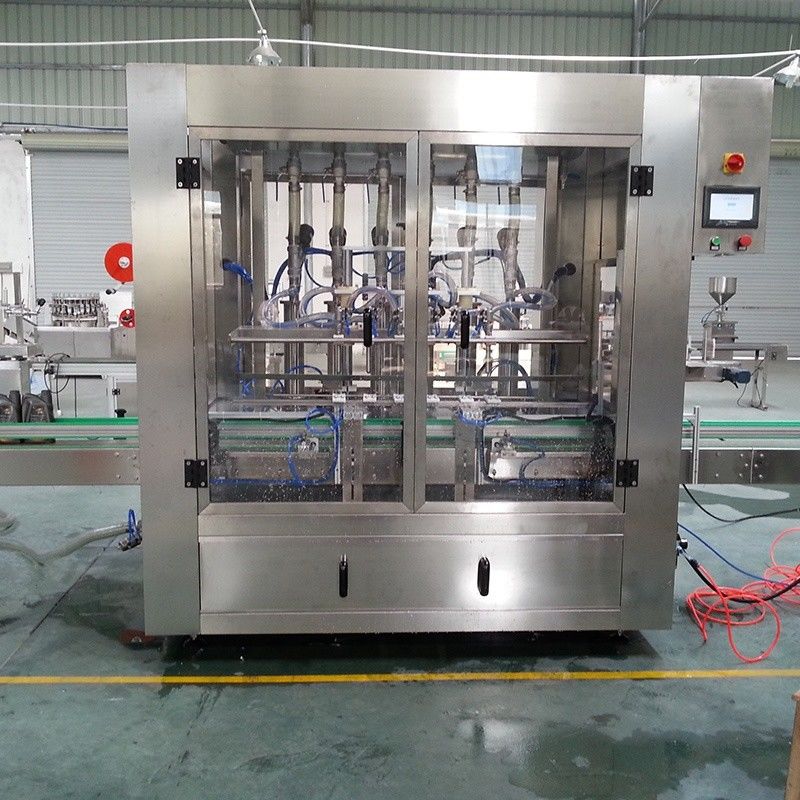

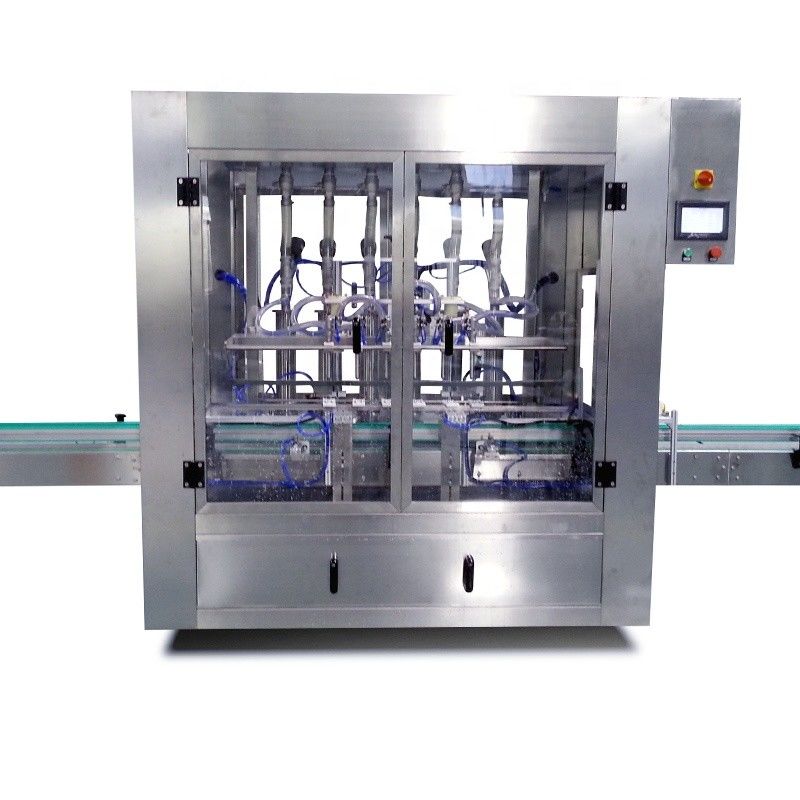

Automatic servo piston filling machine

Automatic servo piston type filling machine，it is integrated with electrical and pneumatic all together，with PLC touch screen control system, which has a high degree of automation, simple and convenient operation, and high filling accuracy. And with each filling head can be individually controlled to adjust the filling accuracy characteristics, prolong equipment using life and flexibility. This equipment is widely used in food, daily chemical, chemical and Medical industries. Such as: chili sauce, cooking oil, shampoo, lubricants, cough syrup and other products.
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 0

Technical parameters

1.Production capacity: 4 heads
(Customized 4,6,8,10,12,14,16 heads)
2.Filling method: servo piston quantitative filling
3.Filling capacity: 100~5000ml
4.Filling speed：1000 BPH
5.Filling accuracy: ±1%
6.Air pressure: 0.6-0.8MPa
7.Power: 1.5KW/AC220V 50/60HZ
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 1

Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 2

Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 3

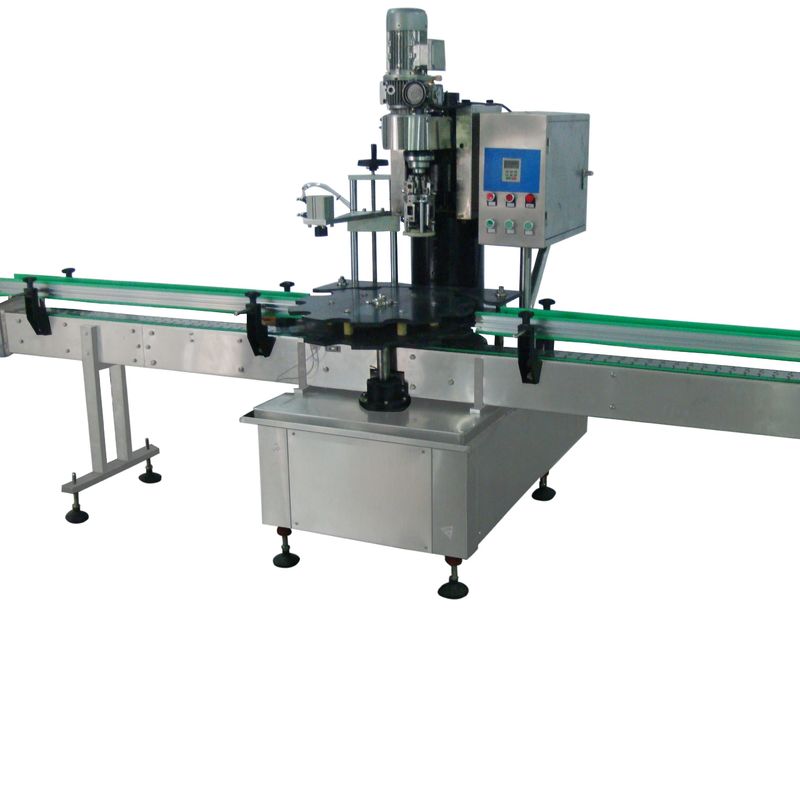

Automatic locking capping machine

This equipment is suitable for automatic locking or capping of metal straight aluminum caps. According to the screw thread of the bottle mouth, it can be screwed out of the cap and lock the bottle cap. It is often used in pharmaceuticals, drinks and beverages industries such as oral liquid and liquor, and plays a role in Anti-theft, anti-leakage.
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 4
Technical parameters
1.Production capacity: 20~60 bottles/minute

2.Lock cap range: Φ10~φ55mm (according to sample bottle)

3.Bottle height: 50~300mm

4.Voltage: 220V 50Hz

5.Power: 2KW

6.Cap type: metal aluminum cap

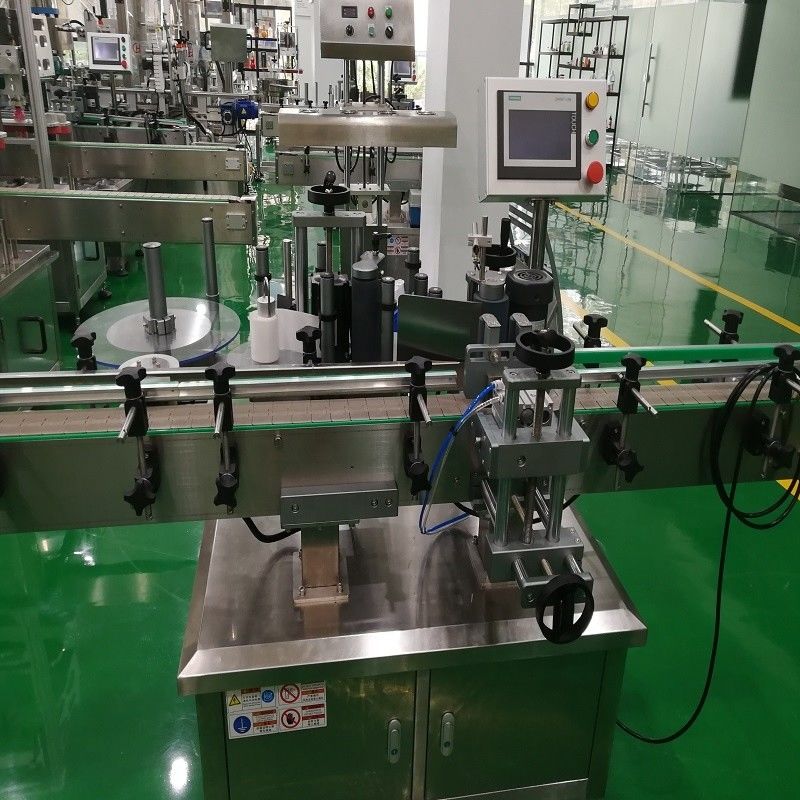

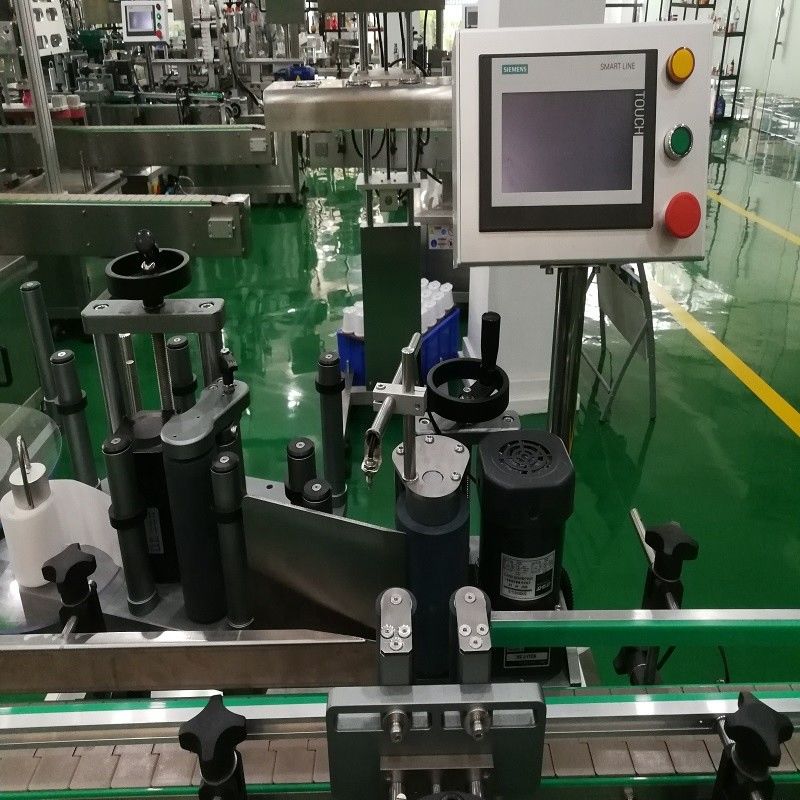

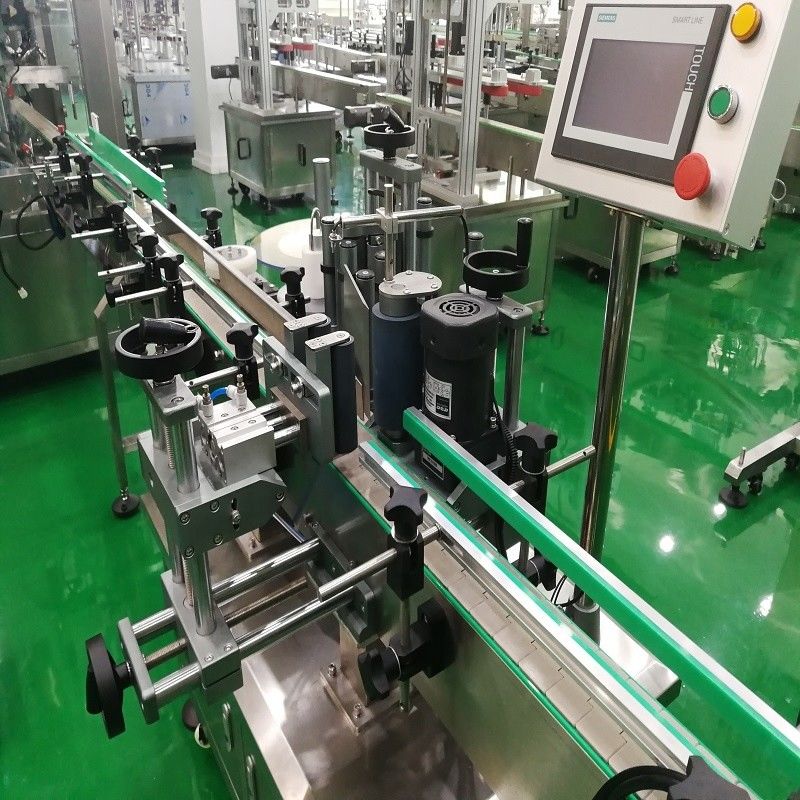

Automatic vertical labeling machine

Automatic self-adhesive vertical round bottle labeling machine is widely used for the labeling of circumferential surface objects of various specifications, and taper round bottle labeling, such as cosmetics, food, medicine, daily chemicals, toys, hardware, plastics, etc. Such as drink bottles, wine bottles, sauce bottles, oil bottles, both full round/half round labeling, double labeling on the front and back of the circle, and the from-to-back labeling space can be adjusted.
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 5
Technical parameters

1.Label size: length 15mm~290mm; width 15mm~150mm
2.Product size: Φ25mm~90mm;
Product height: 25~300mm
3.The outside diameter of the label: Φ280mm;
Roll diameter: Φ76mm
4.Labeling speed: 10~100 bottles/minute
5.Labeling accuracy: ±1mm
6.Air pressure: 0.6~0.8Mpa
7.Power: 1kw
8.Voltage: 220V 50Hz
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 6
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 7
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 8
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 9
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 10
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 11
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 12
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 13
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 14
Specification
item
value
Production Capacity
1000 BPH
Condition
New
Automatic Grade
Automatic
Driven Type
electric
Voltage
220V/380V
Place of Origin
China
Dimension(L*W*H)
7000*1500*2400mm
Weight (KG)
1700
Key Selling Points
High-accuracy
Filling head
4 heads (customizd)
Filling temperature
normal temperature
Filling range
100~1000ml,1000~2000ml,3000~4000ml,5000ml
Suitable for
beverage and wine materials
Filling error
±1% error
Air pressure
0.6-0.8MPa
Power
Whole line about 4.5kw
Capping form
locking capping machine


Matching equipment for production line

Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 15
Bottle round table feeding turntable
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 16
Bottle washing machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 17
Drying machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 18
Aluminum foil sealing machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 19
Positioning labeling machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 20
Automatic vertical labeling machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 21
Automatoc single side labeling machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 22
Automatoc double sides labeling machine
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 23
Elevator cap sorter
Automatic 4-Head Filling Locking Capping Labeling Machine for Glass Bottle Wine/Liquor 24
Vibrating cap sorter
