Name: Automatic Liquid Bottle Filling Capping Machine Line for Shampoo/Shower Gel/Oil/Detergent
Brand: Guanhong
SKU: Guanhong
Price: 65 USD
Availability: InStock
Rating: 4.5 (189 reviews)

Home > products > Filling Production Line >

Automatic Liquid Bottle Filling Capping Machine Line for Shampoo/Shower Gel/Oil/Detergent

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

Automatic Liquid Bottle Filling Capping Machine Line for Shampoo/Shower Gel/Oil/Detergent

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

2400BPH

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Showroom Location:

None

Application:

Food, Beverage, Commodity, Chemical, Cosmetic

Packaging Type:

Bottles, Barrel

Packaging Material:

Plastic, Glass

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

AC220V/380V 50/60Hz

Dimension(L*W*H):

7200*1400*2400mm

Weight:

1450 KG

Warranty:

1 Year

Key Selling Points:

Automatic

Filling Material:

Water, Oil, Liquid, Liquid

Filling Accuracy:

±1%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

Quantity Of Filling Head:

2 Heads

Filling Capacity:

100-1000ml 500-5000ml

Filling Form:

Double Head Servo Tracking Type Filling

Filling Speed:

About 40-50 Bottles/min

Pressure:

0.6-0.8 MPa

Program Control:

Cotrust Motion Control System

Capping Form:

Screw Capping Machine

Capping Speed:

About 10~35 Bottles/min

Cap Type:

Plastic/metal Round Cap,pump Cap,duckbill Cap

Marketing Type:

Hot Product 2019

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$65,000.00/sets 1-1 sets

Packaging Details

wooden packing

Supply Ability

20 Unit/Units per Month

Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine

Get Best Price

Video

Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash

Get Best Price

Video

6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service

Get Best Price

Video

Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed

Get Best Price

Contact Now

Product Description

Product Overview

Automatic bottle-in filling and capping production line process:

Put the bottle on the unscrambler manually--automatic bottle-in -- automatic filling -- automatic cap sorter and put cap -- automatic capping

(Production line can be customized according to customer requirements)

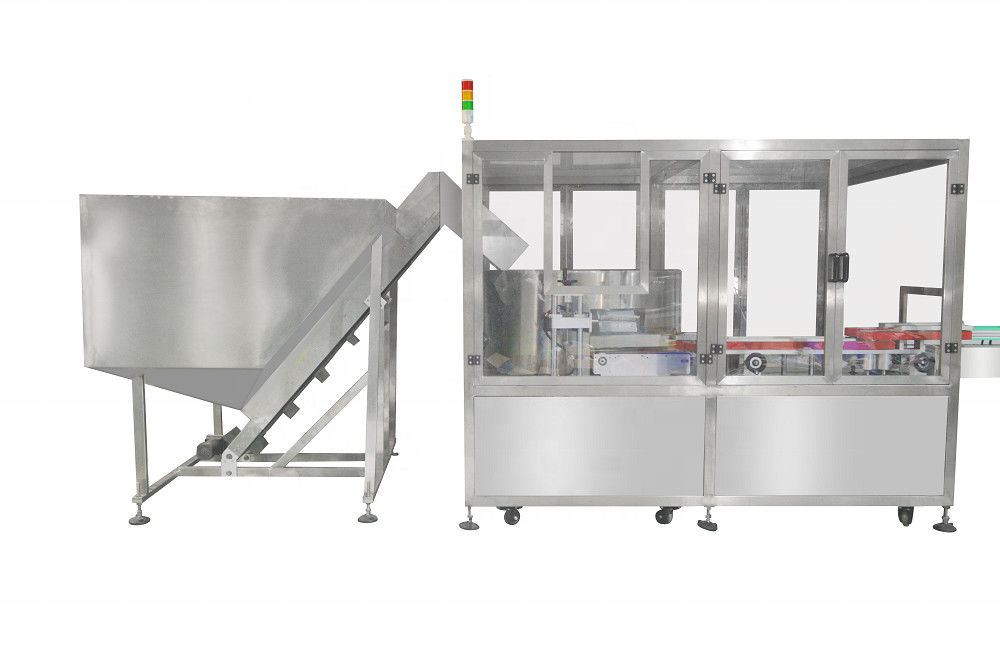

Bottle unscrambler

Elevator type bottle feeding machine, bottle hook and bottle upright machine

Technical parameters:
1.Bottle feeder hoist drive motor: 140W electronic speed regulating motor
2.Suitable specifications: according to the bottle sample provided by the customer.
3.Bottle sorting form: rotary table rotation, motor rotation bottle, entrainment hook bottle cap, entrainment clip bottle body
vertical bottle
4.Program control: control the electrical box
5.Pressure: 0.6-0.8 MPa
6. Power: about 1.5KW
7. Voltage: AC220V/380V 50/60Hz
8. Conveyor belt :82mm wide stainless steel chain belt, speed 0-15m/min
9.Conveyor motor: 750W frequency control motor
10. Speed: about 40-50 bottles/min (Based on 500ml bottle, actually depends on the size of the bottle capand material)

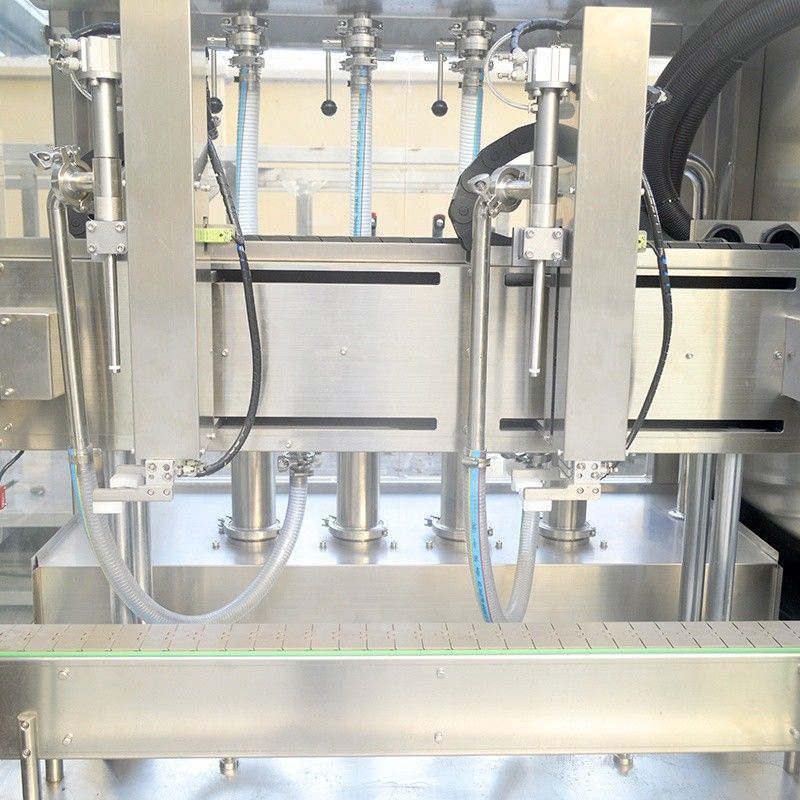

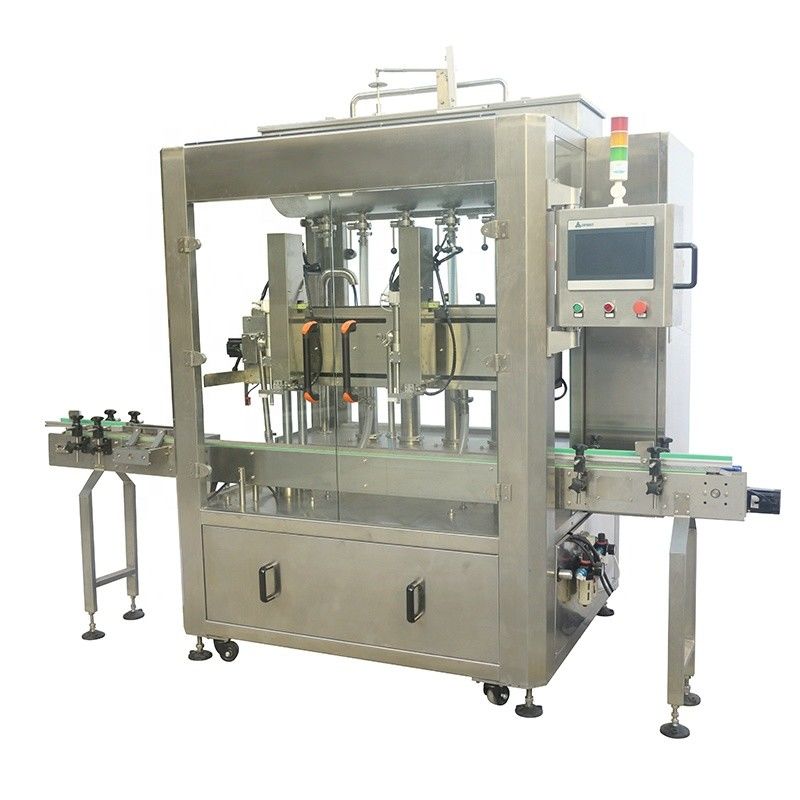

Double heads tracking type filling machine

Tracking type high speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.

Technical parameters

1. Number of filling head: 2heads
2. Filling form: servo piston type
3. Filling capacity: 500ml~5000ml
4. Filling accuracy: ±1%
5. Program control: PLC+ touch screen
6. Material of contact parts: 304# stainless steel, PVC
7. Air pressure: 0.6-0.8MPa
8. Power: about 4KW
9. Voltage: AC220V 50/60Hz
10. Speed: about 40-50 bottles/min

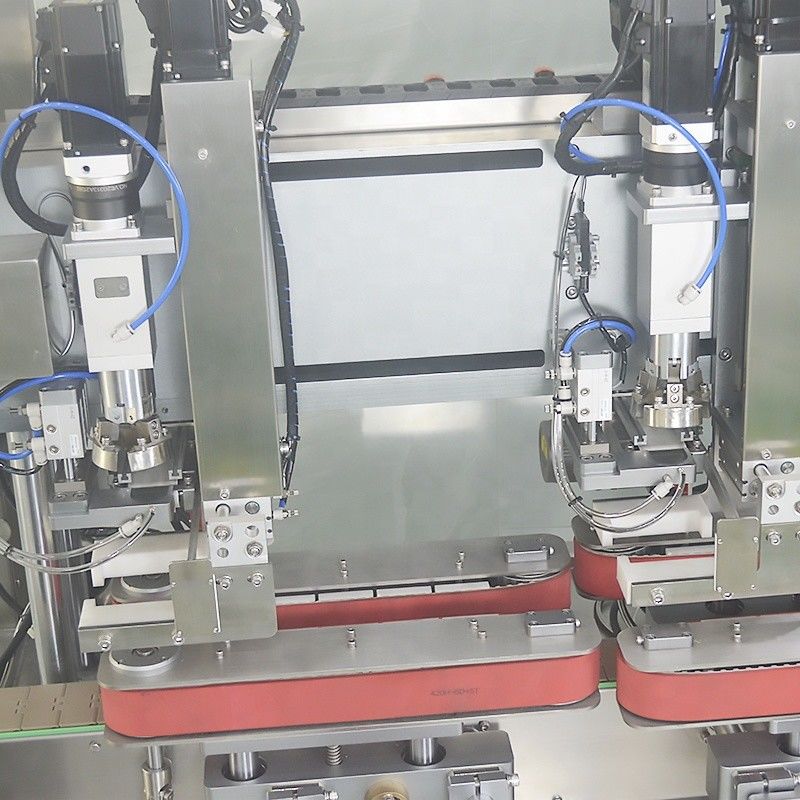

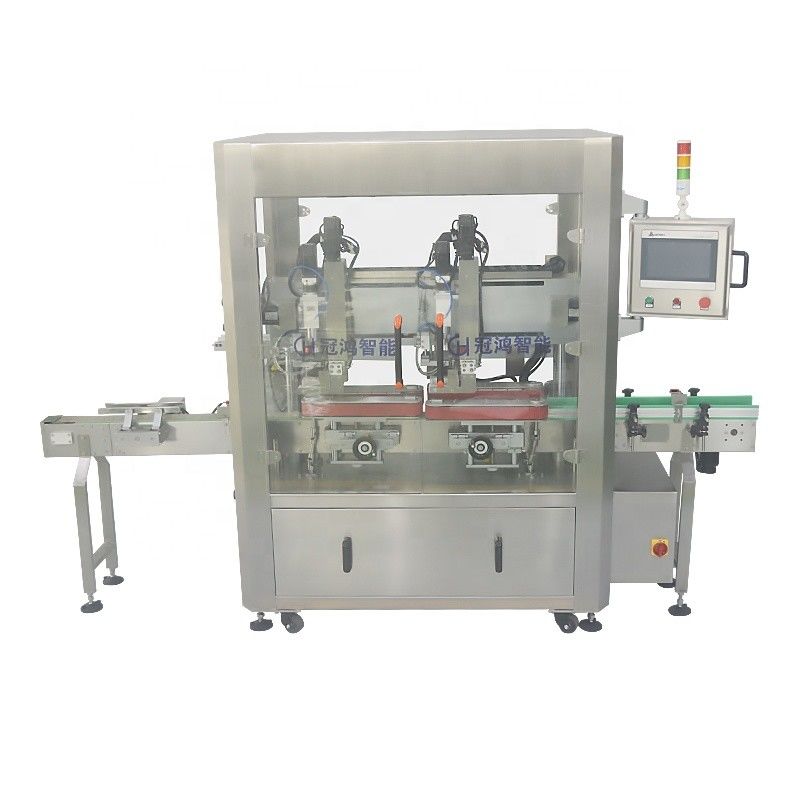

Automatic two heads tracking type torison capping machine

Double heads tracking type servo torsion capping machine consist of chain conveyor, composed of bottle clamp automatic alignment mechanism, screw capping system, the automatic servo tracking system, servo torque screw capping system, electric lift regulating mechanism, electric cap sorting and cap feeding, waterproof electrical cabinets, touch screen human-machine interface, etc., this machine is a key to quickly switch in bottle function, can apply to different specifications automatic multiple-function equipment
of the bottle.

Technical parameters

1. Capping range: Φ10~φ55mm (can be customized according to requirements)
2. Bottle height: 50~300mm (can be customized according to requirements) 3. Capping speed: 10~35 bottles/min (Increasing capping heads can increase the speed)

4. Rated voltage: 220V 50Hz

5. Power: 1.1KW

6. Air pressure: 06~0.8MPa

7. Bottle cap type: plastic,metal round cap, pump head cap, duckbill cap, etc.

Specification

item	value
Condition	New
Automatic Grade	Automatic
Voltage	AC220V/380V 50/60Hz
Place of Origin	China
Dimension(LWH)	720014002400mm
Weight	1450KG
Warranty	1 Year
	Online support, Video technical support
Machinery Capacity	2400BPH
Filling Accuracy	±1%
Quantity of filling head	2 heads
Filling capacity	100-1000ml 500-5000ml
Filling form	double head servo tracking type filling
Filling speed	about 40-50 bottles/min
Pressure	0.6-0.8 MPa
Program control	Cotrust motion control system
Capping form	tracking torison capping machine
Capping speed	about 40-50 bottles/min
Cap type	plastic/metal round cap
