Name: Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line
Brand: Guanhong
SKU: Guanhong
Price: 29 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Home > products > Filling Production Line >

Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line

Place of Origin:

Guangdong, China

Brand Name:

Guanhong

Request A Quote

Automatic High Speed Filling Capping Machine for Toothpaste/Cosmetic/Cream/Paste Line

Product Details

Condition:

New

Type:

Filling Machine

Machinery Capacity:

2400BPH

Applicable Industries:

Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops

Showroom Location:

None

Application:

Food, Beverage, Commodity, Chemical, Cosmetic

Packaging Type:

Bottles, Barrel

Packaging Material:

Plastic, Glass

Automatic Grade:

Automatic

Driven Type:

Electric

Voltage:

AC220V/380V 50/60Hz

Dimension(L*W*H):

4200*1400*2400mm

Weight:

1115 KG

Warranty:

1 Year

Key Selling Points:

Automatic

Filling Material:

Water, Oil, Liquid, Liquid

Filling Accuracy:

±1%

Machinery Test Report:

Provided

Video Outgoing-inspection:

Provided

Warranty Of Core Components:

1 Year

Core Components:

Motor, PLC

Quantity Of Filling Head:

2 Heads

Filling Capacity:

100-1000ml 500-5000ml

Filling Form:

Double Head Servo Tracking Type Filling

Filling Speed:

About 40-50 Bottles/min

Pressure:

0.6-0.8 MPa

Program Control:

Cotrust Motion Control System

Capping Form:

Screw Capping Machine

Capping Speed:

About 10~35 Bottles/min

Cap Type:

Plastic/metal Round Cap,pump Cap,duckbill Cap

Marketing Type:

Hot Product 2019

Port:

Guangzhou

Payment & Shipping Terms

Minimum Order Quantity

1 set

Price

$29,800.00/sets 1-1 sets

Packaging Details

wooden packing

Supply Ability

20 Unit/Units per Month

Advanced Shampoo Body Wash Lotion Laundry Washing Detergent Liquid Cleaner Filling Capping Labeling Machine

Get Best Price

Video

Customized Filling Capping Labeling Line for Automatic Washing Detergent/Lotion/Shampoo/Body Wash

Get Best Price

Video

6000bottle/hour 3L Fully Automatic Shampoo Filling Machine With After-Sales Service

Get Best Price

Video

Shampoo Lotion Automatic Bottle Filling Machine 6000 Bottles/hour Production Line Speed

Get Best Price

Contact Now

Product Description

Recommend Products

Product Overview

Filling and capping production line process:

Put the bottle on the conveyor belt manually -- automatic filling -- put the pump head manually -- automatic capping

(Production line can be customized according to customer requirements)

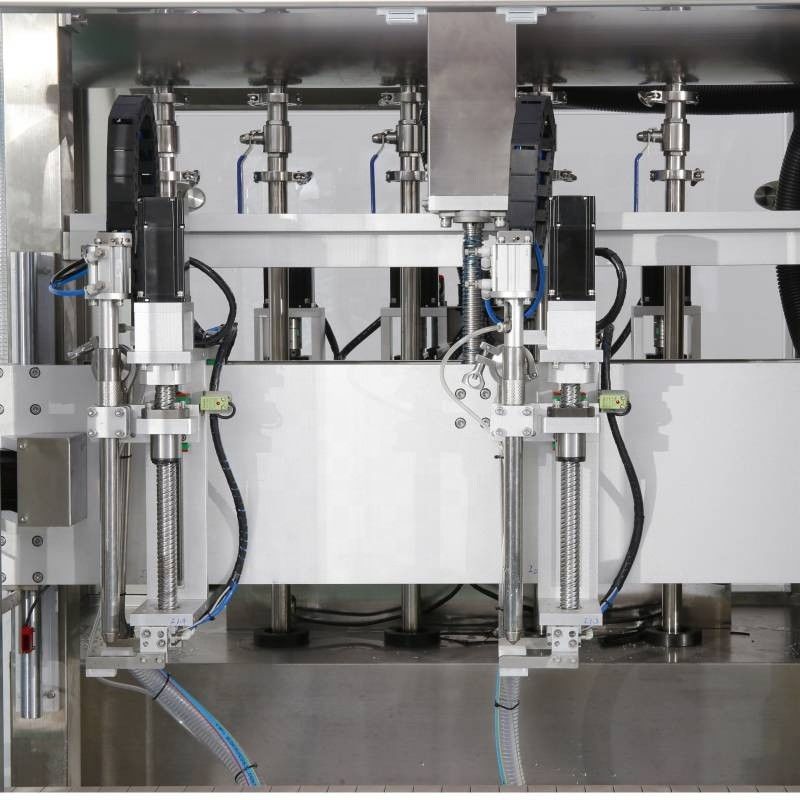

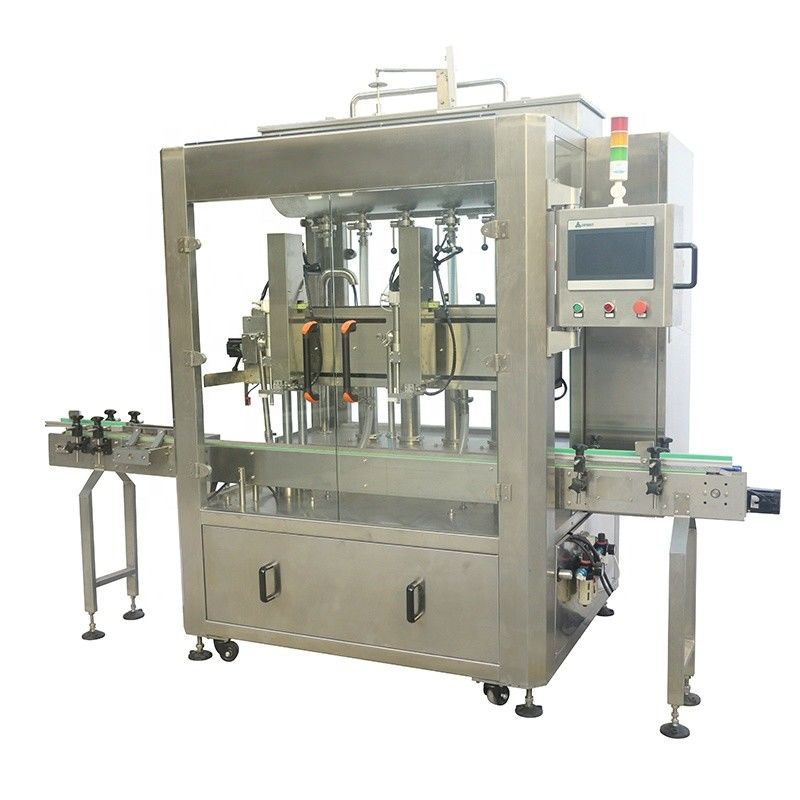

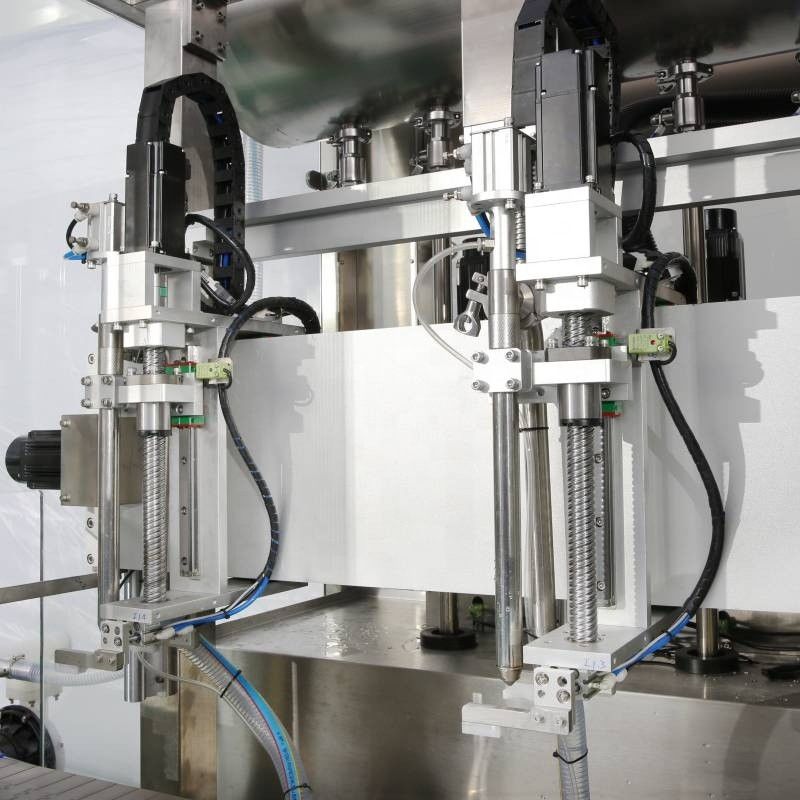

Double heads tracking type filling machine

Tracking type high speed double heads filling machine consists of chain conveyor, bottle clamping automatic alignment mechanism, filling mechanism, automatic servo piston system, electric lifting adjustment mechanism, waterproof electric cabinet, touch man-machine operation interface, etc.This machine has the function of one-button quick changeover, which can be applied to the automatic filling equipment for bottles of different specifications.

Key selling point

1. Motion control system + networking

2. Intelligent adjusting machine

3. High speed filling

4. Dive into filling

5. Accurate capacity

6. Exquisite appearance

7. Less space occupied

8. One-click cleaning

9. One-click alignment position

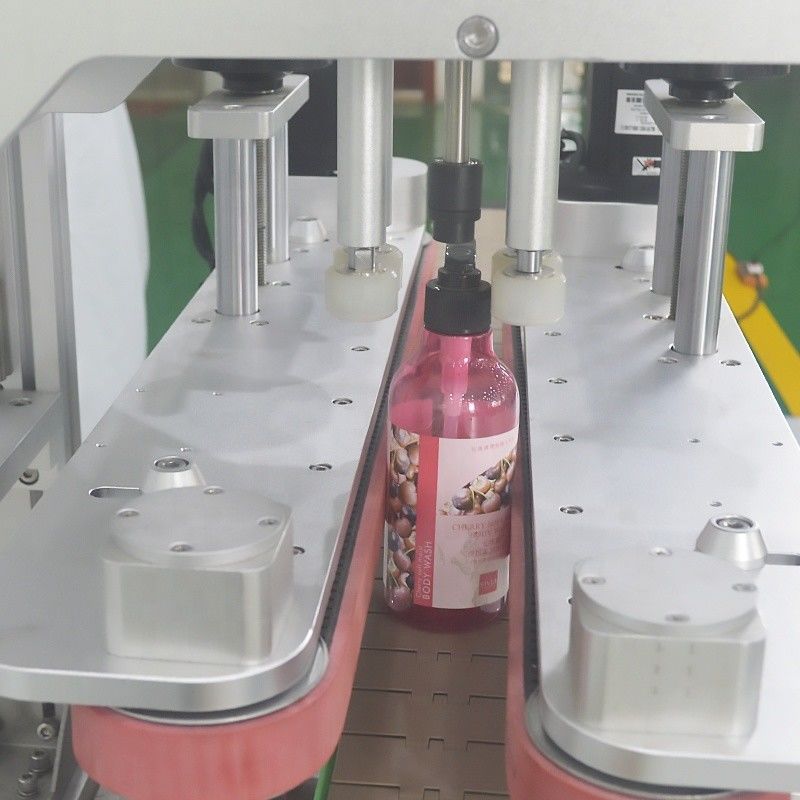

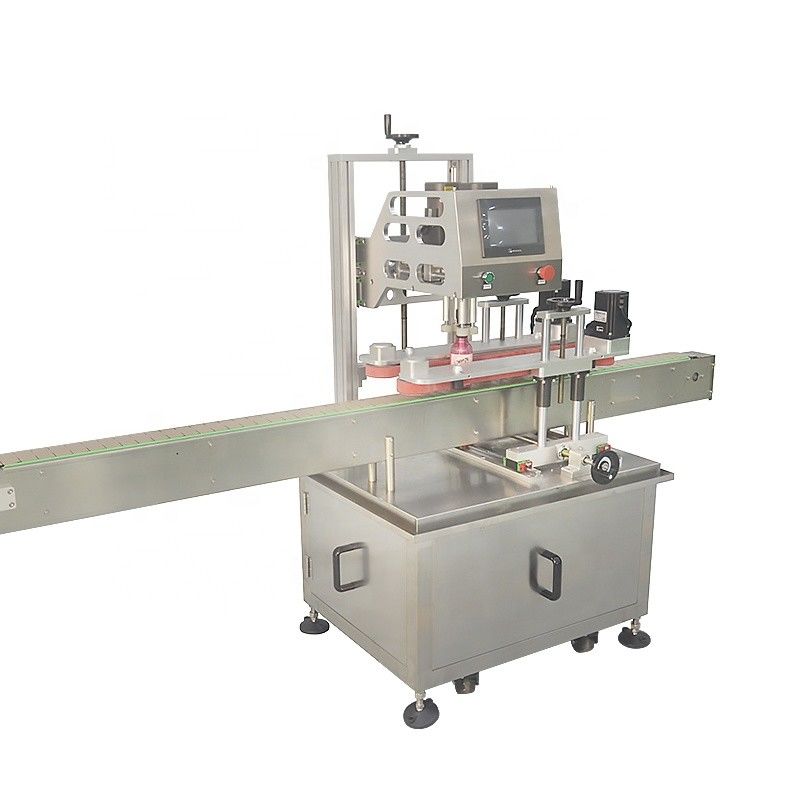

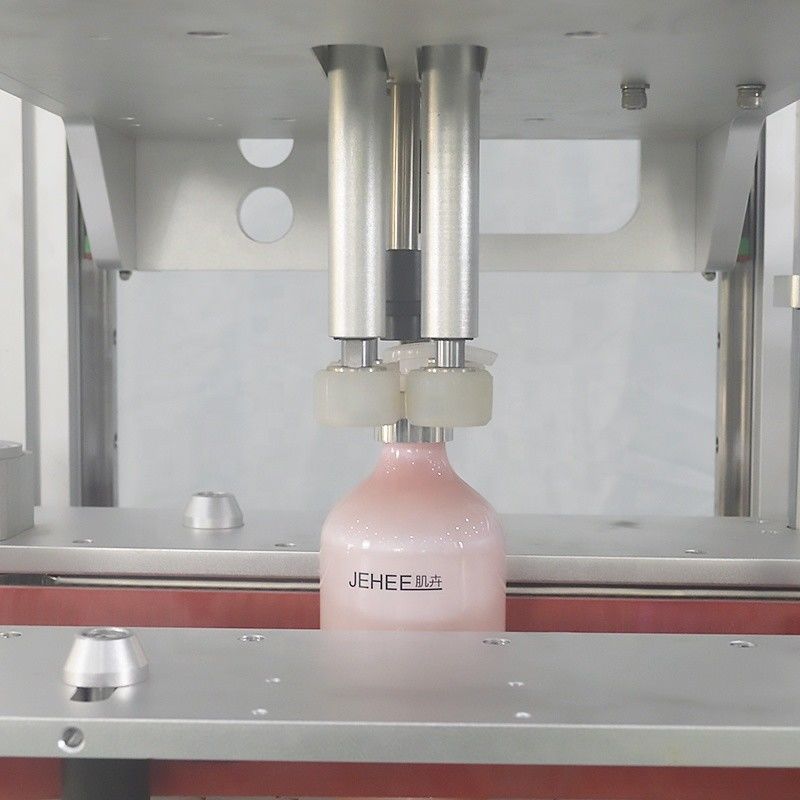

Automatic bottle screw capping machine

The machine integrates automatic cap sorting, cap input, capping. No bottle to capping, cap rejection automatic alarm function,high degree of automation. Automatic capping for plastic metal round cap, pump caps, and duckbill caps. Applicable to medicine,food, cosmetics, oil, biological, pesticides, chemical, chemical and other industries, play a role in leakproof, anti-theft.

Technical parameters

1. Capping range: Φ10~φ55mm (can be customized according to requirements)
2. Bottle height: 50~300mm (can be customized according to requirements) 3. Capping speed: 10~35 bottles/min (Increasing capping heads can increase the speed)

4. Rated voltage: 220V 50Hz

5. Power: 1.1KW

6. Air pressure: 06~0.8MPa

7. Bottle cap type: plastic,metal round cap, pump head cap, duckbill cap, etc.

Specification

item	value
Condition	New
Voltage	AC220V/380V 50/60Hz
Place of Origin	China
Dimension(LWH)	420014002400mm
Weight	1115KG
Warranty	1 Year
	Online support, Video technical support
Key Selling Points	Automatic
Machinery Capacity	2400BPH
Quantity of filling head	2 heads
Filling capacity	100-1000ml 500-5000ml
Filling form	double head servo tracking type filling
Filling accuracy	±1%
Pressure	0.6-0.8 MPa
Program control	Cotrust motion control system
Capping form	screw capping machine
Cap type	plastic/metal round cap,pump cap,duckbill cap

Matching equipment for production line

Bottle round table feeding turntable

Bottle washing machine

Drying machine

Aluminum foil sealing machine

Positioning labeling machine

Automatic vertical labeling machine

Automatoc single side labeling machine

Automatoc double sides labeling machine

Company Profile

Packaging & Delivery

Customer Photos

FAQ

1: Q: Is your company a factory?
A: Yes, we are a machinery factory that located in Guangzhou, China.
2: Q: Do you have certificates ?
A: Yes. CE, GMP quality.
3: Q: What are the payment methods?
A: T/T, Cash, Western Union is accepted.
For regular order, 50% front payment, 50% balance before shiping.
4: Q: What's the lead time ?
A: Usually our delivery time is around 30 to 45 days.
5: Q: Do you support OEM/ODM?
A: Yes, we can accept OEM/ODM.
6: Q: How to pay Express Charge if order samples ?
A: If you have DHL, FEDEX, TNT, UPS account, samples would be sent under freight collected through your account.
If you don't have DHL, FEDEX, TNT, UPS account, we have to calculate freight cost with EXPRESS Company first, before sent machine you could pay freight charge directly to our company account.
7: Q: Deliver goods by air or by ship ?
A: Both are okay, you would choose your agent or we would arrange for you,.
8: Q: How to visit your factory ?
A: You can visit our factory at work time, just make an appointment with our sales persons. Any more questions, pls feel free to contact us.
