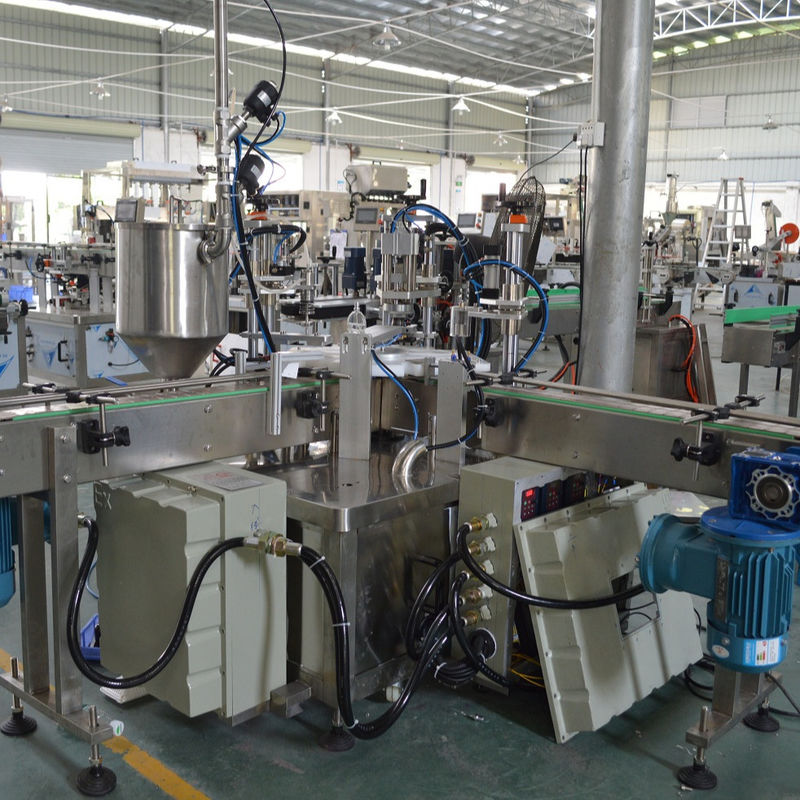

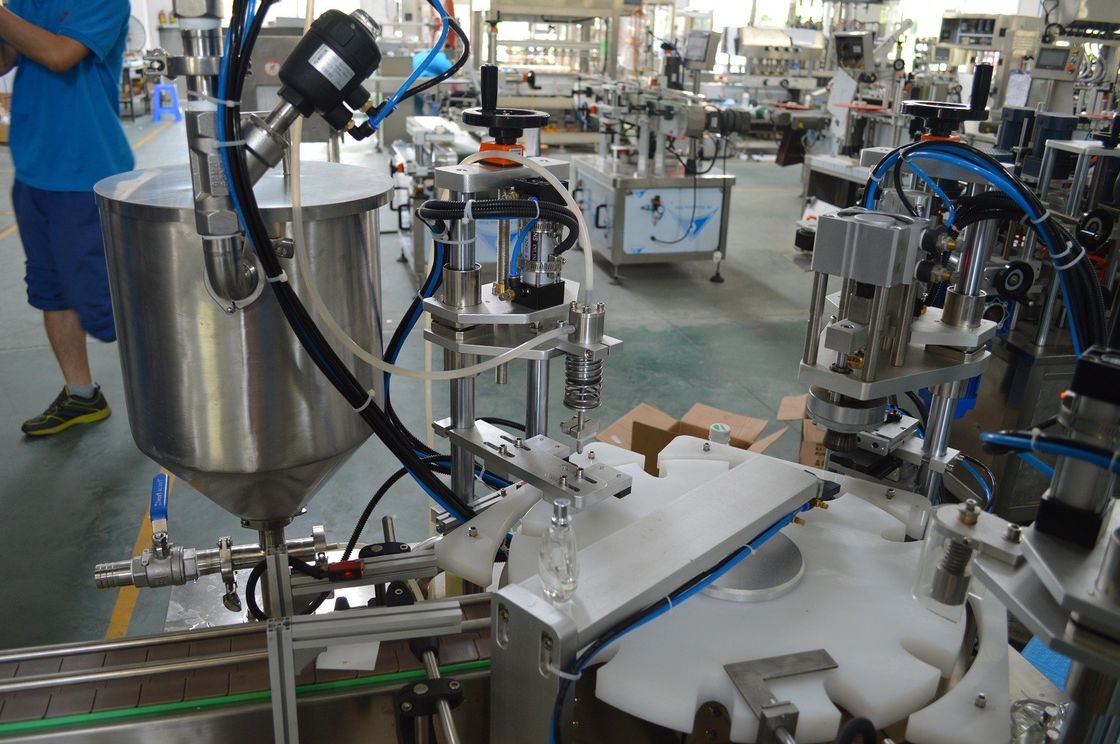

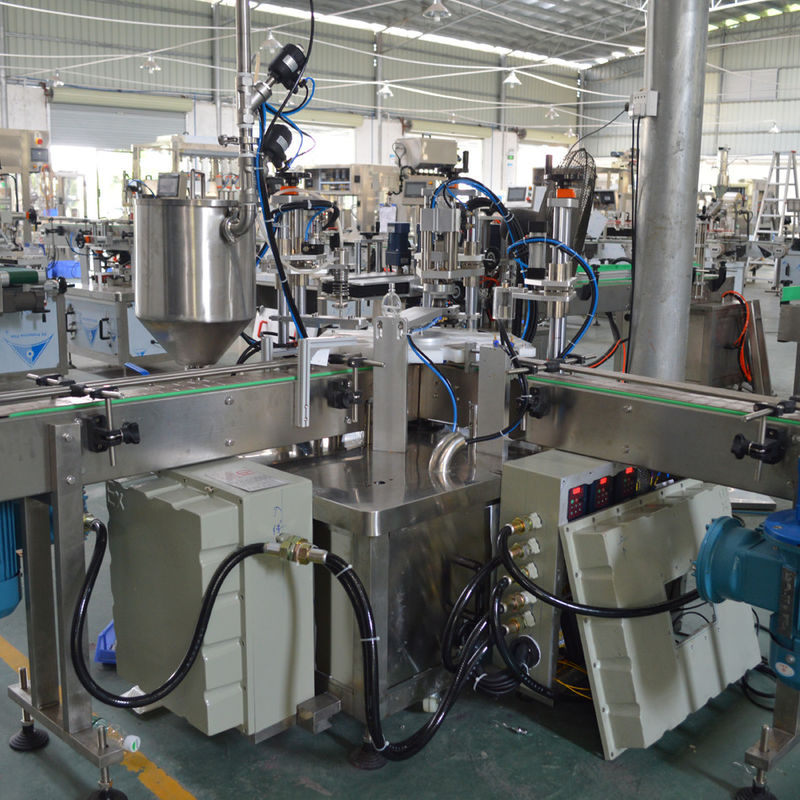

Automatic perfume filling capping machine line
Technical Parameters:
| Filling head | 1 head |
| Number of capper | 1 capper |
| Filling capacity | 20ml |
| Production speed | 800-1000bottles / hour |
| Machine power | about 0.6KW |
| Filling accuracy | ±1mm |
| Program control | PLC with touch screen |
| Air pressure | 0.6-0.8MPa |
| Voltage | AC380V, 50/60HZ three-phase |
(1) Number of filling heads:1 (using negative pressure filling)
(2) Number of caps: 1(pump head cover)
(3) Number of gland heads: 1(outer cover)
(4) Suitable for bottle type: according to customer sample(20ml bottle, cover and cap)
(5) Filling capacity: 20ml
(6) Filling form: negative pressure filling
(7) Lower cover form: manual cover
(8) Cover form: pneumatic cover
(9) gland form: pneumatic gland
(10) Production speed: 800-1000bottles / hour
(11) Filling accuracy: ±1mm (equal level)
(12) Into the bottle, out of the bottle conveyor belt: 82mm wide POM chain belt, speed 0-15 m / min,
(13) Machine power: about 0.6KW
(14) Program control: PLC with touch screen man-machine interface
(15) Material: The frame is made of stainless steel
(16) Filling mouth and other parts in contact with liquid: 304# stainless steel
(17) Filling hose: silicone hose
(18) Air pressure: 0.6-0.8MPa
(19) Power supply: AC380V, 50/60HZ three-phase.
