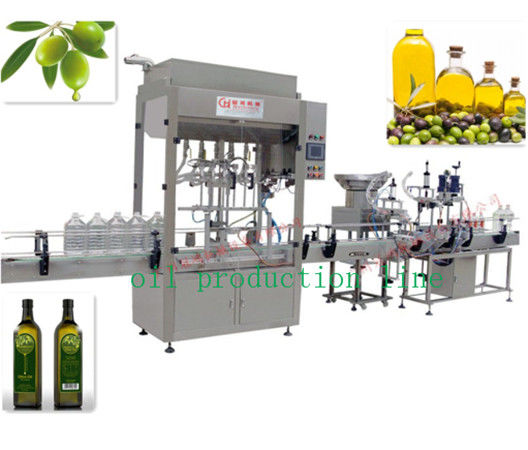

Advanced Liquid Filling Packaging Machine for Edible Oil in Food and Beverage Industry

Product Application  (your require machine are welcome, please offer your detail)

Our factory specializes in the design and manufacture of packaging machinery and equipment include:

1, Washing machine series: semi-automatic washing bottle machine, automatic washing bottle machine, flip bottle washing machine.

2, Labeling machine series: vertical round bottle labeling machine, horizontal round bottle labeling machine, automatic labeling machine, automatic double side labeling machine, unilateral labeling machine and various forms of non-standard labeling machine;

3, Filling machine series: automatic servo piston filling, automatic flow filling machine, automatic negative pressure filling machine and various non - standard filling machine;

4, Capping machine series: automatic folder rotary capping machine, automatic grasping rotary capping machine, automatic linear capping machine and other non-standard capping machine,

5, Production line series: automatic, semi-automatic filling machinery production line.

Manufacturer supply, customer specifications are welcome

Applicable Products:
Liquid mosquito coils, perfume, smoke and other similar materials, one-stop production. From Li bottles, washing bottles, drying sterilization, filling, light inspection, lock cover, stickers labeled one-stop solution.

Note: The line used by the filling machine for our patented products, with high filling accuracy, filling stability, cleaning and maintenance features such as convenience. Invention patent number: 201210544112.4

Product Description:
    This automatic filling production line is mainly used for liquid mosquito coils, perfumes and other pharmaceuticals, food, cosmetics and other industries with good liquidity liquid filling production. The line has the characteristics of high degree of automation, high filling precision, high production efficiency, simple operation, saving personnel, long service life and so on.

The main technical parameters:

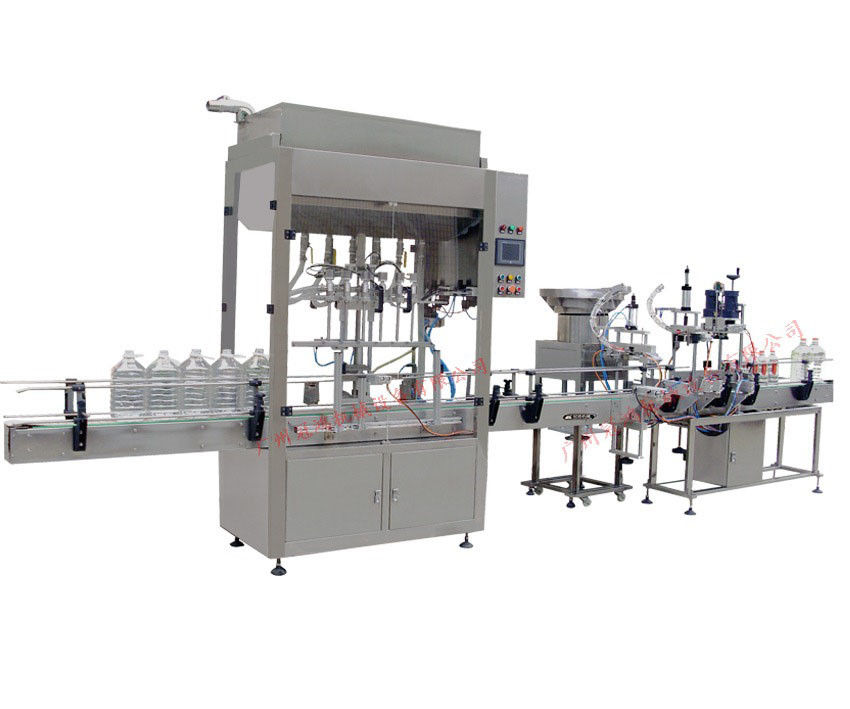

6-head self-flow filling machine (technical parameters)
Filling head: 6 heads
Filling capacity: any
Filling type: gravity DC filling (conveyor belt with steel chain with)
Filling speed: 50-60 bottles / min (45 ml)
Filling accuracy: ±1ml (45 ml)
Material: Filling rack with stainless steel, contact with the material part of the use of stainless steel
Delivery speed: 5-15 m / min
Conveyor belt width: 82 mm
Conveyor belt: 3 m steel chain
Conveyor belt height: 750 mm ± 20 mm
Machine power: 1000W / 220V AC single phase
Program control: PLC with touch screen interface
Valve material: 316 stainless steel
Drive motor: 370W mechanical speed control
Filling material tank capacity: 100L
Table width: 20 cm
Air pressure: 0.5-0.8MPa


Automatic double-headed press (technical parameters)
Applicable bottle diameter: 30 ~ 80 (MM)
Applicable cap diameter: 15 ~ 80 (MM) (different specifications need to change the pressure head)
Production capacity: 60-80 / min
Rated voltage: 220V / 50Hz
Machine power: 200W
Air pressure: 0.5-0.8MPa
Drive motor: 140W AC speed control
Delivery speed: 5-15 m / min
Conveyor belt width: 82 mm
Conveyor belt: 1 meter race steel chain
Workbench: 0.5 m × 1 m (table with 40 mm high edge)

Automatic capping machine (technical parameters)
(With vibration disc capping machine)
Applicable bottle diameter: 35 ~ 110 (MM)
Applicable cap diameter: 15 ~ 50 (MM)
Production capacity:> 60 / min
Rated voltage: 220V / 50Hz
Machine power: 800W
Drive motor: 370W mechanical speed control
Conveyor belt width: 82 mm
Conveyor belt: 3.45 meters steel chain,
Conveyor belt height: 750 mm ± 20 mm
Workbench: 0.5 m × 1 m (table with 40 mm high edge)

Bottle machine (technical parameters)
Bottle diameter: 30 ~ 80 (MM)
Production capacity: 60-80 / min
Rated voltage: 220V / 50Hz
Machine power: 150W
Drive motor: 140W AC speed control

(Above the liquid mosquito standard models of technical parameters, other special requirements and functions can be customized!)
